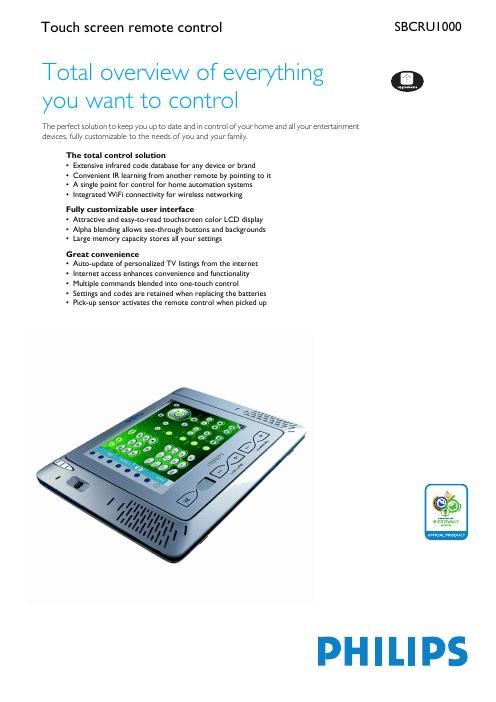

Touch screen remote control SBCRU1000/00
Product highlights
Home automation control
Control of not only Audio and Video devices but also
other devices in the home such as Lighting, Climate,
Curtains, etc.
Universal IR code database
A universal IR code database refers to a library of
infrared codes built-in to a particular remote. This
feature allows a remote to control your equipment
without needing to learn individual signals. Select the
correct infrared code sets in the database for the
devices you want to control, to enable control of virtually
every audio/video system element on the market today
-“ regardless of model or brand.
Learning functionality
Learning functionality refers to the process through
which a remote control captures and stores infrared
signals from other remotes for later use. When device
codes are not included in the on-board database, they
can always be learned from the original remote, simply
by pointing to it.
Integrated WiFi
WiFi networking, also known as IEEE 802.11 uses radio
frequency signals to communicate in a similair fashion
as wired computer networks. It uses TCP/IP networking
protocols for the basic communication.
One-touch convenience
One-touch convenience allows you to perform multiple
commands with one press of a button via a macro. A
macro combines a string of pre-programmed
commands under one single button. Therefore, it simply
takes one button press to execute a series of functions.
Alpha blending
Alpha blending is used to create the effect of
transparency. It does this by combining a translucent
foreground with a background colour to create an in-
between blend.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
© 2005 Koninklijke Philips Electronics N.V.
All Rights reserved.
www.philips.com Date of issue 2005-05-11
Version: 6.0
12 NC: 9082 100 02299
EAN: 87 10895 79508 1
Technical specifications
Picture/Display
-Display colors: 65,536
-Resolution: 640 x 480 pixels
-Touch panel
- Backlight
-Diagonal screen size (inch): 6.4 in
Connectivity-Wireless LAN: 802.11b
-Encryption / security: WEP 128bit
-Network mode: DHCP, Fixed IP
-USB: USB 1.1
-Microphone: Buit-in microphone
Infrared Capabilities-Operating distance: 33 ft (10 m)
- Learning IR codes
-Learning frequency range: U p t o 7 8 k H z a n d 4 5 5
kHz
-Transmitting LEDs: 5
- Universal IR code database
-Number of brands in database: Over 1300
Customisation-Editor application on PC: iProntoEdit
- Full screen configurability
-Macros: Up to 250 steps
- Alpha-blending
- Transparency
-On screen customisation: No
Convenience-Electronic Programming Guide: TV Guide On
Screen
- Hard buttons
- Pick up sensor
- Scrollwheel
- Automatic power off-Cradle/ docking station: no
-Programmable timers: No
-Multi language: No
Multimedia Applications-Memory Card Types: MMC
Power-Charging time: approximately 1 hour hr
-Mains power: AC 100-240 V 50-60 Hz 1500 mA
Dimensions-Master carton quantity: 2
-Product dimensions (W x H x D):
240x178x23mm
-Product weight: 0.9 kg
-Temperature Range (Operation): +5°C/+45°C
System Specifications-CPU: Intel Xscale 32 bit
-CPU speed: 400 Mhz
-Flash memory size: 64 MB
-Ram size: 64 MB
System Requirements-CD-ROM drive
-Hard disk space: 75 MB
-PC OS: Windows 98 SE, 2000, ME, XP
-RAM memory: 64 MB
Accessories-AC/DC Adaptor: 12 V 4.16 A (50W max)
-Batteries: Li-ion 2700 mAh
-Charger: International (110 - 240 V AC)
- Quick start guide
-User Guide on CD-ROM
- Warranty Card
-Docking Station: no
