SBCLI910/00
Technical specifications Product highlights

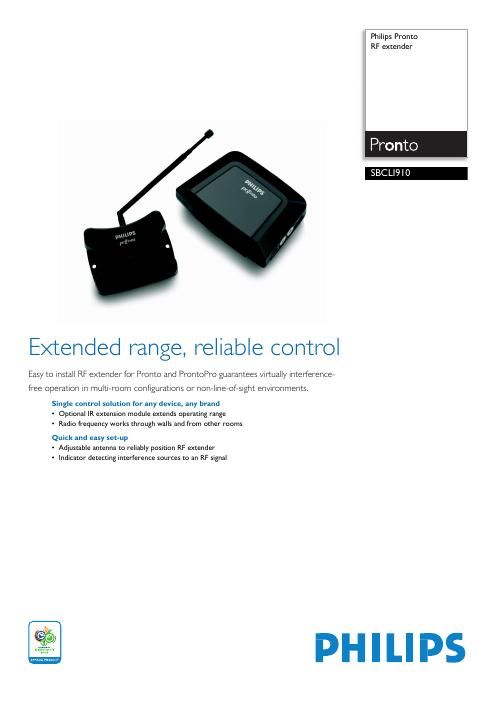

RF extender
Date of issue 2006-04-04
Version: 1.0
12 NC: 9082 100 80126
EAN: 87 10895 90917 4Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
© 2006 Koninklijke Philips Electronics N.V.
All Rights reserved.
www.philips.com
Connectivity-IR emitter connectors: 4
Infrared Capabilities-Transmitting LEDs: 4
-IR emitter connectors: 4
RF Capabilities-Adresses (ID's): 16
-Channels: 4
-Communication: 1-way
-Frequency (MHz): 433
Convenience- Error indication
Power-Mains power: 230V (+/-10/-15%)/50Hz
Dimensions-Master carton weight: 0.84 kg
-Master carton quantity: 1
-Product dimensions (W x H x D):
110 x 30 x 79 mm
-Product weight: 0.060 kg
-Temperature Range (Operation): 0 - 50 degree
C
Accessories-AC/DC Adaptor: 12V DC 400mA
-Dual IR emitter wires: 4
-Printed User Guide
-
Adjustable antenna
A separate adjustable antenna determines the most
reliable position of an RF extender and therefore
enables virtually interference-free operation of multi-
room systems or devices in concealed environments.
The antenna has a built-in interference indicator that
blinks when detecting an other RF device or other
interference source (e.g. microwave oven). The harder
the indicator blinks, the less reliable the position of the
antenna.
RF interference indicator
An interference indicator is a red blinking light that
indicates the presence of interference sources in the
home, that can interfere with the operation of an RF
extender. The indicator is built into an antenna, and
starts blinking as soon as the antenna picks up
interference from RF devices, besides the RF extender,
or other sources e.g microwave oven. The harder the
light blinks, the less reliable the antenna is positioned,
therefore, the less reliable the RF extender will work.
IR extension module
An infrared extension module allows you to control
traditional infrared equipment over a radio frequency
network.
Radio frequency
A radio technology that allows you to control
components not in direct line-of-sight, such as through
w a l l s o r o t h e r o b s t a c l e s . T h e r e a r e t w o t y p e s o f R F u s e d
i n r e m o t e c o n t r o l s : R F t o c o m p o n e n t , a n d R F t o i n f r a r e d .
