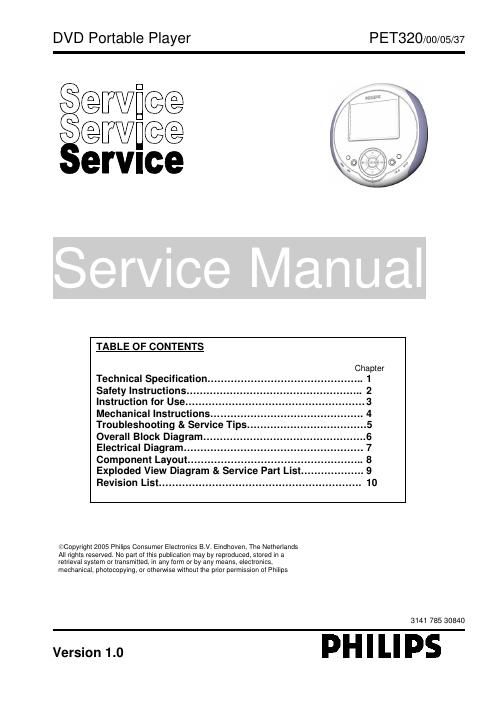

Philips pet 320 service manual

Page 2

LTECHMCALSPEGFBANON

General

Dimensions (WxLxH) : 154.5mm164.48mm*27.61 mm

(+- 0.3mm)
Weight: 546.6g +» 10g
Power supply: +5V/ 2A
Power consumption : Play back :4W
Operating temp. range : 0 - 50 Degree
Laser wavelength: DVD 655nm, CD 790nm
Video system : NTSC/PAL/AUTO.
Frequency response: Audio +1dB / -0.5dB
Signal/noise ratio Audio > 80 dB
Audio distortion + noise Audio < 0.6 %
Channel separation: Audio > 85 dB
Dynamic range Audio > 80 dB
Output
Audio out (analog audio) 1.2 V +/- 0.1V rms
Load impedance: 47K ohm
Video out Output level: 1 V p-p
Load impedance: 75 ohm

Current consumption

Audio CD : In"!!!

DIWALAIJDII
DVD-Video on DVD-
ROM (DVD-5, DVD-9,
DVD-10, DVD-18), DVD-
R, DVD-RW, DVD+R
and DVD+RW
CD-DA, Video CD
(MPEG-1),
MPSNVMA/JPEG CD on
CD-ROM, CD-R, and
CD-RW

Disc Diameter 8cm/120m

Applicable DVD Formats

Applicable CD Formats (Read)

Software upgrades

DC-IN SUPPLY (5.0V)

Battery Charging Current Stand by : 1.7 Amp
Operating : 0.85 Amp

BATT. SUPPLY (3.6V)

For the best performance of your DVD Portable.
Check www.phi|ips.comlsupport for latest
software upgrades available.

To check the software version of your DVD
Portable.

1. Press the >ll key to power on the player

2. Insert a DVD disc into the player

3. Press SETUP key to enter the set up menu
4 Press MENU + MENU + OSD key within1
sec

The display will show the software version on
the screen as below:

.0

Power Off 3.4V
Playback with TFT on 1.45A ( Normal volume)
Playback without TFT on 0.9A ( Normal volume)

Battery playtime

2.5H0urs

SETUP MENU

Headphone out (headphone output load 2x16 ohm)

Maximum output power : 2.3mW

Frequency response : +l- 3dB
SNR (A-wght) : 80 dB
THD (1kHz) : 1 %
Left-Right Channel 55 dB
Separation :

Left-Right Channel 2 dB
Balance :

Supported disc type

DVD video discs:

Video CD: Elam

Procedure on how to upgrade the software of the

DVD Portable

1. Download the latest software from the Philips
support site

2. Unzipped the files and then burn it onto a CD
ROM then playback the CD ROM on the DVD
Portable

3. Press the OK key to upgrade the software

Pixel specification

<= 4 (max. 1 bright dots and 3 dark dots)
