Philips mcm 768 service manual

This is the 31 pages manual for philips mcm 768 service manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 31
left right
philips mcm 768 service manual

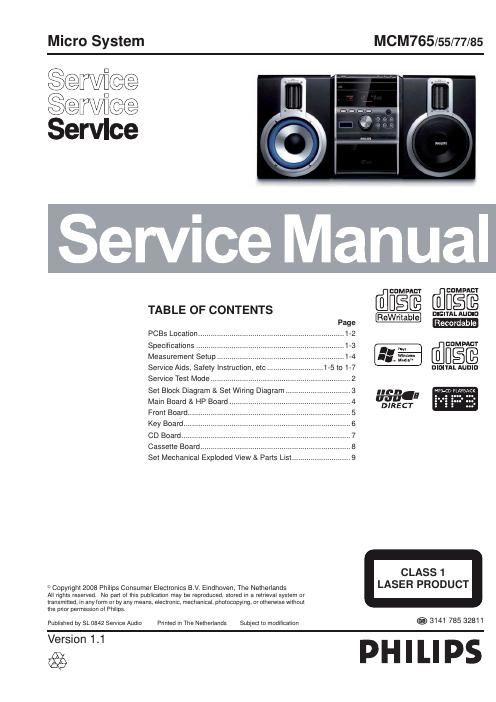

Extracted text from philips mcm 768 service manual (Ocr-read)


Page 1

1-2 TOP KEY BOARDFRONT BOARD KEY BOARD CASSETTE BOARD CD BOARD SWITCHING SUPPLY MODULE MAIN BOARDFM TUNER MODULE AC CORE BOARD SINGLE CASS DECK CD MECHANISM CD LOADER /77 /85 n i R D C / n i x u A MP3 Link Video Out Subwoofer Out Digital Out Karaoke Features Voltage Selector ECO Power Standby (LCD Display Off) USB Direct Type /Versions: Features in used: /55 VERSION VARIATIONS Type /Versions: Board in used: MCM765 Service policy MAIN BOARD KEY & TOP KEY BOARD FRONT BOARD CASSETTE BOARD * TIPS : C -- Component Lever Repair. M -- Module Lever Repair-- Used /05 /12 /55 /85 /77 Feature diffrence C CD BOARD C C C TUNER MODULE M x x C SWITCHING SUPPLY MODULE M AC CORE BOARD CC C C C M C M C C C C C M C M C MCM765 x xx xx PCBS LOCATION

Page 2

1-3 SPECIFICATIONS AMPLIFIER Output power .................................... 4 x 75 W RMS* Signal-to-noise ratio ..........................t 62 dBA (IEC) Frequency response ......... 40 -“ 15000 Hz, ± 3 dB Impedance loudspeakers ......................................... 4 : Impedance headphones ........................................ 32 : * (4 :, 1 kHz, 10% THD) CD/MP3-CD PLAYER Number of programmable tracks ......................... 20 Frequency range .................................. 20 -“ 20000 Hz Signal-to-noise ratio ............................................ 75 dBA Channel separation .......................... t 60 dB (1 kHz) Total harmonic distor tion ................................. < 0.5% MPEG 1 Layer 3 (MP3-CD) .......... MPEG AUDIO MP3-CD bit rate ....................................... 32-256 kbps (128 kbps advised) Sampling frequencies ............ ...........32, 44.1, 48 kHz USB PLAYER USB ................................................................... 12Mb/s, V1.1 ......................................... suppor t MP3 and WMA files Number of albums/folders ................. maximum 99 Number of tracks/titles ...................... maximum 500 TUNER FM wave range ................................... 87.5 -“ 108 MHz Sensitivity at 75 : -“ mono, 26 dB signal-to-noise ratio ............ 2.8 µV -“ stereo, 46 dB signal-to-noise ratio ........ 61.4 µV Total harmonic distor tion ..................................... d 5% Frequency response ..... 63 -“ 12500 Hz (± 3 dB) Signal-to-noise-ratio ...................................... t 50 dBA TAPE DECK Frequency response Normal tape (type I) ...... 80 -“ 12500 Hz (8 dB) Signal-to-noise ratio Normal tape (type I) .................................... 50 dBA Wow and flutter ......................................... d 0.4% DIN SPEAKERS System 2-way, double por t bass reflex Woofer ................................................................... 1x13 cm Tweeter ...................................................................... 1x5 cm GENERAL INFORMATION AC Power ....................... 110 -“ 240 V, 60Hz / 50 Hz Standby Power Consumption........................d 18 W Dimensions (w x h x d) -“ Main unit (w x h x d) ...... 175 x 252 x 360 mm -“ Speaker box (w x h x d) 175 x 252 x 214 mm Weight With packing ......................................................... 10.16 kg Main unit .................................................................... 3.18 kg Speaker box ............................................................. 5.36 kg Specifications and external appearance are subject to change without notice.
