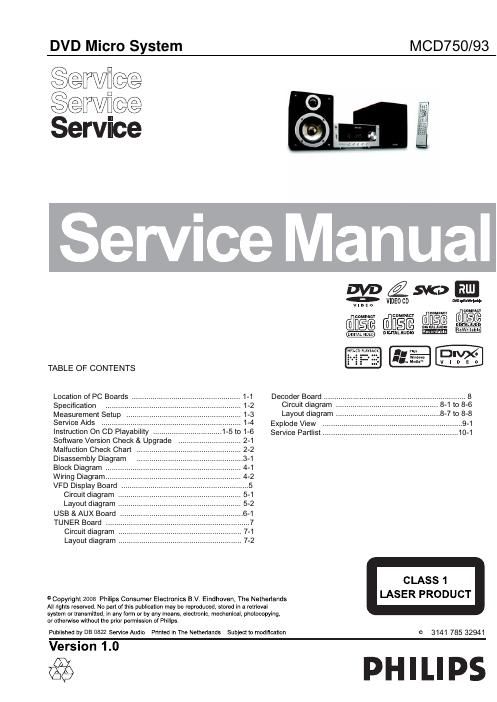

Philips mcd 750 service manual

Page 1

Page 2

AMPLIFIER Rated Output Power ........................ ..2 x 25W RMS Signal-to-noise ratio ........................... 65 dBA Frequency response .......... 50Hz - 3 dB+/-2 20KHz Aux Input ......................................0.5V RMS 47kohm DISC Laser Type .......................................... Semiconductor Disc Diameter ............................................ 12cm/8cm Suppor t Disc ..............................................................DVD,DVD-R,DVD-RW,DVD+RW,CD-DA,MP3,CD-RW Audio DAC ....................................... 24Bits / 44.1kHz Total Harmonic Distor tion ..................... <0.1%(1kHz) Frequency Response ............ 50Hz - 3dB+/-2 20KHz S/N Ration .................................................... -GBA T UNER FM Tuning Range ............................. 87.5 -“ 108 MHz Tuning grid ......................................................50KHz Sensitivity -“ Mono, 50dB S/N Ratio ..................................... 5u V -“ Stereo, G%615DWL o ................................ 100uV Selectivity ........................................................ >28dB Image Rejection .............................................. >25dB Total Harmonic Distor tion ................................... <3% Signal to Noise Ration .................................. !GBA SPEAKERS Speaker Impedance ................................................ 8ohm Speaker Driver, base ......................................................4" Speaker Driver, tweeter .................................... BUZZER Frequency Response ....................50Hz -3dB+/-2 20KHz GENERAL INFORMATION Total Output power .................................... W RMS AC Power ..................................... 220-230 9+]+] Operation Power Consumption ................................. 25W Standby Power Consumption ..................................... <4W Eco Standby Power Consumption ..............................<1W Headphone Output ................................ 2X15mW 32ohm USB Direct ...................................................... Version 1.1 Dimensions -“ Main unit (w x h x d) [[PP -“ Speaker box (w x h x d) .......................115x152x204mm Weight -“With Packing ................................................... ...7.5 KG -“Main Unit .............................................................. 1.2KG -“Speaker box ....................................................... . 2.7KG Net Weight.......................................................... . .* Specifications and external appearance are subject to change without notice. 1-2 Specification
