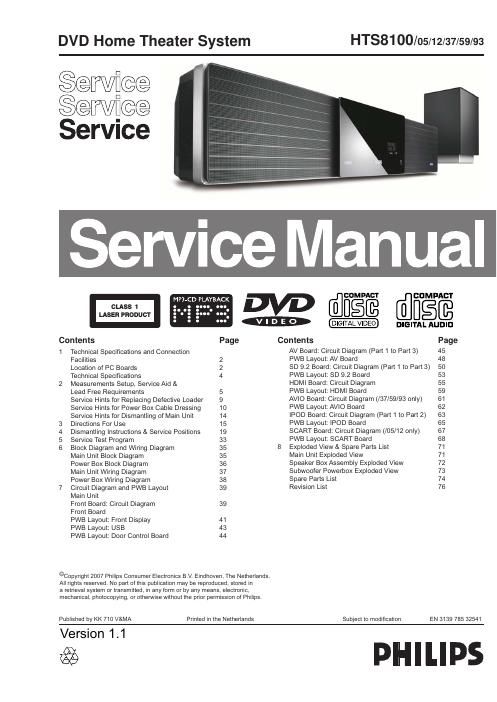

Extracted text from philips hts 8100 service manual (Ocr-read)
Page 1
EN 2 339 785 3254
. Technical Specifications and Connection Facilities
LOCA TION OF PC BOARDS
Front Board
DVD Mechanism
Door Control Boar d
PCBs on the lower level
PCBs on the Rear Frame and in the
speaker cabinet
AV Board
Front Keys Board
Front LED Board
SD9.2 MPEG Board
SCART Board (/12/05)AVIO Board (/37/59)
HDMI Board
IPOD Board
USB Board
