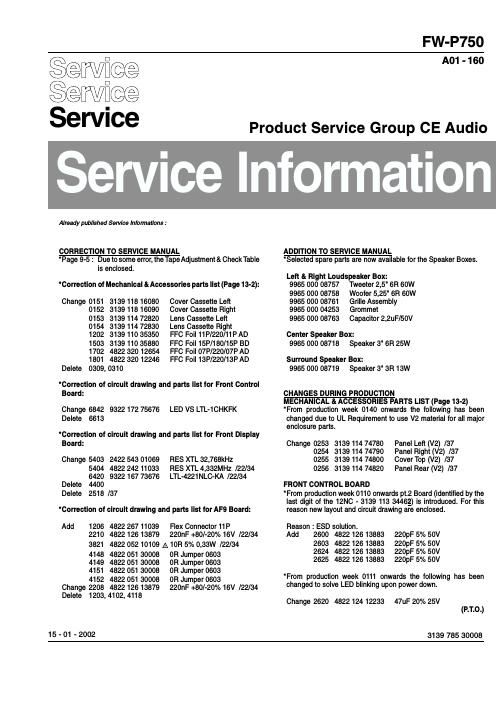

FW-P750

A01 - 160

Product Service Group CE Audio

ervice Information

Already published Service Informatinns :

CORRECTION TO SERVICE MANUAL
*Page 9-5 : Due to some error, the Tape Adjustment & Check Table
is enclosed.

*Correction of Mechanical & Accessories parts list (Page 13-2):

Change 0151 3139 11816080 Cover Cassette Left
0152 3139 118 16090 Cover Cassette Right
0153 3139 114 72820 Lens Cassette Left
0154 3139 114 72830 Lens Cassette Right
1202 3139 110 35350 FFC Foil 11P/220/11P AD
1503 3139 110 35880 FFC Foil 15P/180/15P BD
1702 4822 320 12654 FFC Foil 07P/220/07P AD
1801 4822 320 12246 FFC Foil 13P/220/13P AD

Delete 0309, 0310

*Correction of circuit drawing and parts list for Front Control
Board:

Change 6842 9322 172 75676 LED VS LTL-1CHKFK
Delete 6613

*Correction of circuit drawing and parts list for Front Display
Board:

Change 5403 2422 543 01069 RES XTL 32,768kHz
5404 4822 242 11033 RES XTL 4,332MHZ /22/34
6420 9322 167 73676 LTL-4221NLC-KA /22/34
Delete 4400
Delete 2518 /37

*Correction of circuit drawing and parts list for AF9 Board:

Add 1206 4822 267 11039 Flex Connector HP
2210 482212613879 220nF +80/-20"/a 16V /22/34
3821 4822 052 10109 A 10R 5% 0,33W /2234
4148 4822 051 30008 OR Jumper 0603
4149 4822 051 30008 OR Jumper 0603
4151 4822 051 30008 OR Jumper 0603
4152 4822 051 30008 OR Jumper 0603
Change 2208 4822 126 13879 220nF +80/-20% 16V /22/34
Delete 1203, 4102, 4118

15-01-2002

ADDITION TO SERVICE MANUAL
Selected spare parts are now available for the Speaker Boxes.

Left & Right Loudspeaker Box:

9965 000 08757 TweetEr 2,5" 6R 60W
9965 000 08758 Woofer 525" GR 60W
9965 000 08761 Grille Assembly

9965 000 04253 Grommet

9965 000 08763 Capacitor 2,2uF/50V

Center Speaker Box:
9965 000 08718 Speaker 3" 6R 25W

Surround Speaker Box:
9965 000 08719 Speaker 3" 3R 13W

CHANGES DURING PRODUCTION

MECHANICAL & ACCESSORIES PARTS LIST (Page 13-2)
*From production week 0140 onwards the following has been
changed due to UL Requirement to use V2 material for all major
enclosure parts.

Change 0253 3139114 74780 Panel Left (V2) /37
0254 313911474790 Panel Right (V2) /37
0255 313911474800 Cover Top (V2) /37
0256 313911474820 Panel Rear (V2) /37

FRONT CONTROL BOARD

*From production week 0110 onwards pt.2 Board (identified by the
last digit of the 12NC - 3139 113 34462) is introduced. For this
reason new layout and circuit drawing are enclosed.

Reason : ESD solution.

Add 2600 4822 126 13883 220pF 5% 50V
2603 4822 126 13883 220pF 5% 50V
2624 4822 126 13883 220pF 5% 50V
2625 4822 126 13883 220pF 5% 50V

*From production week 0111 onwards the following has been
changed to solve LED blinking upon power down.

Change 2520 452212412233 47uF 20%25v
(P.T.0.)

3139 785 30008
