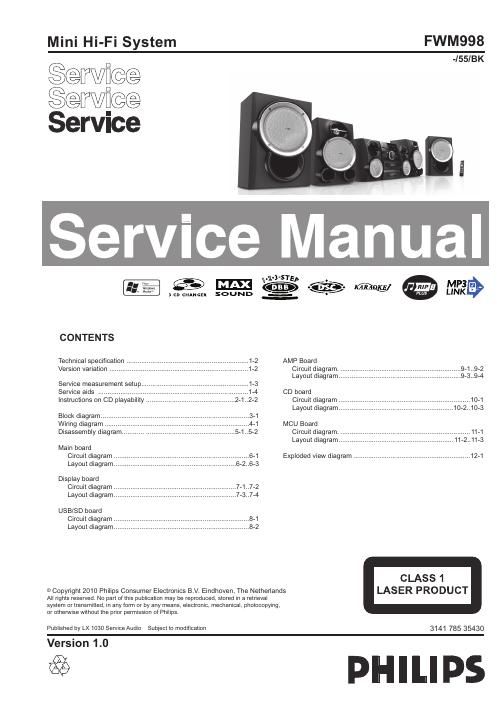

This is the 29 pages manual for philips fwm 998 service manual.
Read or download the pdf for free.
If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.
TECHNICAL SPECIFICATION
Sound
- Output Power: 14000W PMPO
- Total Sound Power (RMS): 1300 W
- Sound Enhancement: MAX Sound. Dynamic Bass
Boost 3 steps. Incredible Surround. Digital Sound
Control 4 modes. Virtual Ambience Control
Loudspeakers
- Main Speaker: Bass Reflex Speaker System. 2 way.
2" tweeter
- Subwoofer type: Passive
- Subwoofer driver: 10" woofer
- Number of Loudspeakers: 6
Audio Playback
- Loader Type: 3 CD Carousel
- Number of Discs: 3
- Playback Media: CD. CD-R. CD-RW. MP3-CD.
WMA-CD, SD Card. USB flash drive
- Disc Playback Modes: 40-Track Programmable.
Repeadone/disk/program. Shuffle Play
- USB Direct/ SD Modes: Fast Backward/Fast
Forward. Play/Pause. Previous/Next. Repeat.
Shuffle
Audio Recording
- Recording Media: USB device. SD/MMC card
- USB recording sources: CD. Tuner. Aux.
Microphone in. SD Card
- SD card recording sources: Aux. CD. Microphone
in. Tuner. USB device
- USB / SD card recording modes: Delete, Instant
record. Progammed tracks. Schedule radio
program. Single disc. Single track
Tuner/Reception/Transmission
- Auto digital tuning
- Station presets: 40
- Tuner Bands: FM, MW
- Tuner Enhancements: Auto Store. Easy Set (Plug &
Play)
Connectivity
- Audio Connections: RCA Aux in. 3.5mm stereo
line in -MP3 link
- USB: USB host
- Microphone: Dual Microphone sockets
- Other connections: FM Antenna. MW Antenna
Convenience
- Alarms: CD Alarm. Radio Alarm. USB alarm. Sleep
timer
- Clock: On main display
- Display Type: FTD
- Karaoke: MIC volume. Echo control
Accessories
- Remote control: 36-key with 2xAAA batteries
- User Manual: Spanish. B-Portuguese
- Guarantee booklet: Global version
- Included accessories: FM/MW Antenna. Batteries
for remote control. *Flat pin adaptor
- Quick start guide: Spanish. B-Portuguese
- Cables: MP3 Line in cable
Dimensions
- Set dimensions (W x H x D): 265 x 359 x 353 mm
- Main speaker dimensions (W x H x D):
263 x 447 x 360 mm
- Subwoofer dimensions (W x H x D):
337 x 491x 360 mm
- Surround Speaker dimensions (W x H x D):
208 x 359 x 301 mm
- Weight incl. Packaging: 51.57 kg
- Packaging dimensions (W x H x D):
1085 x 562 x 786 mm
Power
- Power supply: 100-240VAC, 50/60Hz
VERSION VARIATION
Type lVersions: FWM998
Board in used: Service policy 55 (00 IBK les /94 /98
USB BOARD C/M C/M
MAIN BOARD C/M C/M
AMP BOARD C C/M
DISPLAY BOARD C/M C/M
CD BOARD C/M C/M
MCU BOARD C/M C/M
SD BOARD C/M C/M
Type lVersions: FWM998
Features eature diffrence 155 100 I77 IBK l93 l94 l98
RDS
VOLTAGE SELECTOR
ECO STANDBY - DARK
M -- Module Lever Repair
«I -- Used
* TIPS : C -- Component Lever Repair.
