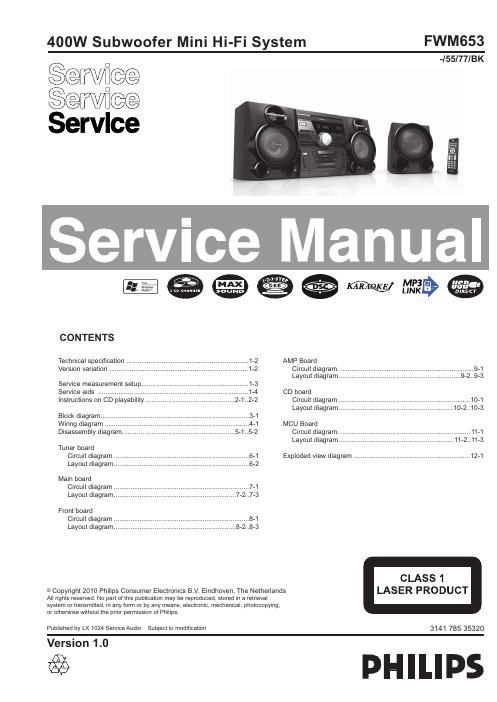

This is the 28 pages manual for philips fwm 653 service manual.
Read or download the pdf for free.
If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.
TECHNICAL SPECIFICATION
Sound
' Total Sound Power (RMS): 400 W
' Output power (RMS): 4x60W/ch + 160W
' Sound Enhancement: MAX Sound, Dynamic Bass
Boost 3 steps, Incredible Surround, Digital Sound
Control 4 modes. Virtual Ambience Control
' Output Power: 6500W PMPO
Loudspeakers
' Number of Loudspeakers: 3
' Main Speaker: 2" tweeter, Bass Reflex Speaker
System. 525" woofer
' Subwoofer driver: 8" woofer
' Subwoofer type: Passive
Audio Playback
' Loader Type: 3 CD Carousel
' Number of Discs: 3
- Playback Media: CD. CD-R, CD-RW, MP3-CD,
WMA-CD
' Disc Playback Modes: 40-Track Programmable,
Repeadone/disk/program. Shufile Play
' USB Direct Modes: Play/Pause. Stop. Previous/
Next, Fast Backward/Fast Forward, Repeat,
Shuffle, Delete
Tuner/Receptioanransmission
' Auto digital tuning
' Station presets: 40
' Tuner Bands: MW, FM Stereo
' Tuner Enhancements: Auto Store, Easy Set (Plug &
Play)
Connectivity
' Audio Connections: RCA Aux in. 35mm stereo
VERSION VARIATION
line in -MP3 link
. USB: USB host
O Microphone: Dual Microphone sockets
. Other connections: FM Antenna. MW Antenna
Convenience
. Alarms: CD Alarm, USB alarm. Radio Alarm. Sleep
timer
O Clock: On main display
. Display Type: LCD
. Karaoke: MIC volume, Echo control
Accessories
. Remote control: 36-key with 2xAAA batteries
. User Manual: Spanish, B-Portuguese
O Quick start guide: Spanish, B-Portuguese
. Guarantee booklet: Global version
. Included accessories: FM/MW Antenna, Batteries
for remote control, *Flat pin adaptor. AC Power
Cord
. Cables: MP3 line-in cable
Dimensions
. Set dimensions (W x H x D): 269 x 310 x 352 mm
O Subwoofer dimensions (W x H x D):
260 x 310 x 426 mm
. Packaging dimensions (W x H x D):
1085 x 498 x 367 mm
O Weight incl. Packaging: 235 Kg
O Speaker Depth: 292 mm
O Speaker Height: 310 mm
O Speaker Width: 209 mm
Power
O Power supply: 100-240VAC, 50/60Hz
Type IVersions: FWM653
Board in used: Service policy [55 100 /77 /BK 193 /94 198
MAIN BOARD C/M C/M C/M
TUNER BOARD C/M C/M C/M
AMP BOARD C/M ON ON
FRONT BOARD C/M C/M C/M
CD BOARD C/M C/M C/M
MCU BOARD C/M C/M C/M
Type IVersions: FWM653
Features eature diffrence l55 IOU I77 /BK l93 l94 l98
RDS
VOLTAGE SELECTOR
ECO STANDBY - DARK
* TIPS : C -- Component Lever Repair.
M -- Module Lever Repair
1 -- Used
