Philips fwm 206 service manual

This is the 23 pages manual for philips fwm 206 service manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 23
left right
philips fwm 206 service manual

Extracted text from philips fwm 206 service manual (Ocr-read)

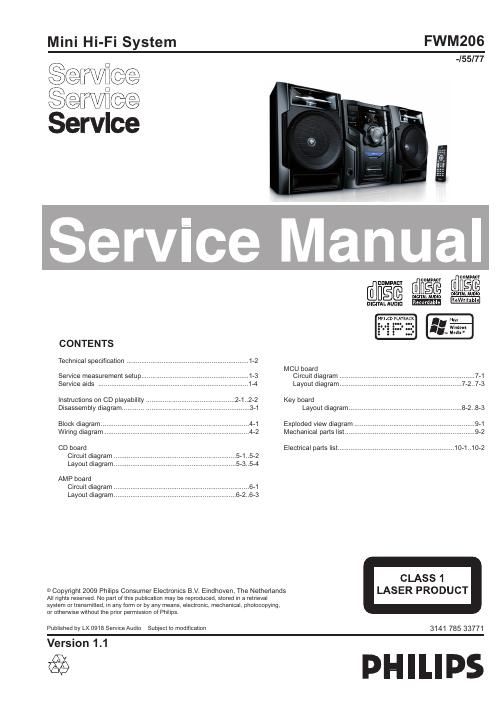

Page 1

SPEAKERS 2-way Bass Reflex System Impedanc e....................................................................... .8-„¦ Woofe r.............................................................. .1x100 mm Tweete r................................................................ .1x50 mm Dimensions (w x h x d).....207 x 310 x 186 (mm) Weigh t........................................................... .2.6 kg (each) GENERAL ACPower.......................... .110 -“127 / 220 -“ 240 V; ...................................................... .50/60 Hz Switcha ble Power consumption Acti ve........................................................................\ . .50 W Set dimensions ( w xh x d).............................................. ..................................................... .220 x 292 x 285 (mm) Weight (main unit ).............................................. .3.83 kg Gross weight (including packaging )........... .10.4 kg Specifications and external appea rance a re subject to change without notic e. AMPLIFIER 1 KHz (Low channel - both channels d riven) .................................................. .20 W per channel (8 -„¦) 10 KHz (High channel - both channels d riven) .................................................. .20 W per channel (8 -„¦) Total output p ower................................................ .80 W Signal-to-noise ratio.......................... -‰¥ 62 d BA (IEC) Frequency respons e........ .63 -“16000 Hz, ±3dB CD PL AYER Frequency rang e................................. .63 -“ 16000 Hz Signal-to-noise ratio........................................... .65 d BA TUNER FM w averang e.................................. .87.5 -“ 108 MHz MW (AM) w averang e................. .530 -“ 1700 kHz TECHNICAL SPECIFICATION 1 - 2

Page 2

1-3 LF Generator e.g. PM5110 Recorder Use Universal Test Cassette CrO2SBC419 4822 397 30069 LEVEL METERe.g. Sennheiser UPM550 with FF-filter S/N and distortion met e e.g. Sound Technology ST170 L R DUT or Universal Test Cassette FeSBC420 4822 397 30071 LEVEL METERe.g. Sennheiser UPM550 with FF -filter S/N and distortion metere.g. Sound Technology ST1700B L R DUT CD Use Audio Signal Disc (replaces test disc 3)SBC429 4822 397 30184 Bandpass 250Hz-15kHz e.g. 7122 707 48001 LF Voltmeter e.g. PM2534 DUT S/N and distortion meter e.g. Sound Technology ST1700B Frame aeriale.g. 7122 707 89001 Tuner AM (MW,LW) To avoid atmospheric interference all AM-measurements have to be carried out in a Faraday´s cage. Use a bandpass filter (or at least a high pass filter with 250Hz) to eliminate hum (50Hz, 100Hz). RF Generator e.g. PM5326 Ri=50: Bandpass 250Hz-15kHz e.g. 7122 707 48001 LF Voltmeter e.g. PM2534 DUT RF Generator e.g. PM5326 S/N and distortion meter e.g. Sound Technology ST1700B Use a bandpass filter to eliminate hum (50Hz, 100Hz) and disturbance from the pilottone (19kHz, 38kHz). Ri=50: Tuner FM MEASUREMENT SETUP
