Extracted text from philips fw d 132 (Ocr-read)

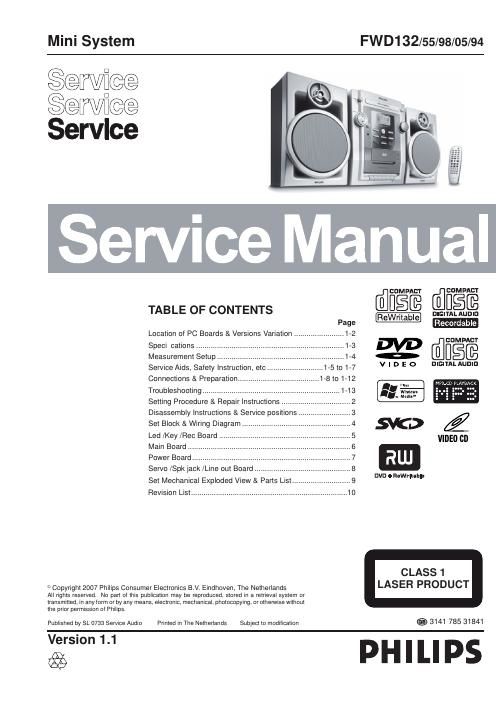

Page 1
LOCATION OF PCB BOARDS
VERSION VARIATION:
1-2
Type/Versions
Fe atures & Bo ard in used FWD13
2
/98
M ain (Output Po wer- 600W)
Co mposite Video Out
Po wer Volt ag e (110 V~240 V)
A C LINE CORD (Fixed)
Page 2
1-3
Specifi cations
AMPLIFIER SECTION
Output power ....................................................... 480 W PMPO
2.0 CH mode ..................................................... 2 X 30W RMS
Frequency Response ........................ 100 Hz - 10 kHz / ± 3 dB
Signal-to-Noise Ratio ....................... ..... > 62dB (A-WEIGHED)
Output Sensitivity
Line Out ........................................................................\
2+ 0.2 V
TUNER SECTION
Tuning Range ...........................................................\
................
.................................................................... FM 87.5 -“ 108 MHz
Signal-to-Noise Ratio ..............................................FM -‰¥ 50 dB
TAPE SECTION
Frequency Response
Normal tape ............................................. 125Hz -“ 8KHz /+4dB
Signal-to-Noise Ratio
Normal tape ................................................ ............... -‰¥ 45 dBA
JIS and WTD ................................................................ -‰¤ 0.35%
DVD SECTION
Laser Type ........................................................ Semiconductor
Video Decoding ........................................... MPEG-2 / MPEG-1
Video DAC ..................................................................... 12 Bits
Signal System ............................................... ........ PAL / NTSC
Video Format .............................................................. 4:3 / 16:9
Video S/N ...................................................... 56 dB (minimum)
Composite Video Output ................................... 1.0 Vp-p, 75 Ω
Audio DAC ........................................................ 24 Bits / 96 kHz
Frequency Response .......................... 4 Hz - 20 kHz (44.1kHz)
................................................................ 4 Hz - 22 kHz (48kHz)
................................................................ 4 Hz - 44 kHz (96kHz) MAIN UNIT
Power Supply Rating ................................ 110-240 V~50-60Hz
Power Consumption
Active .................................................................\
................ 50 W
Standby ........................................................................\
.. .<10W
Dimensions (w × d × h)
..............................................................
................................................................ 220 × 284 × 290 (mm)
Weight ........................................................................\
... 2.77 kg
Packaging Dimensions (w × d × h) ............................................
................................................................ 510 x 416 x 350 (mm)
Gross weight .................................................................... 8.4kg
SPEAKERS
Front speakers
System ........................................................... full range satellite
Impedance ..............................................................\
.............. 4 Ω
Speaker drivers .........................................4 full range speaker
Frequency response .......................................... 50 Hz -“ 20 kHz
Dimensions (w × d × h) .............................................................
................................................................ 190 × 180 × 292 (mm)
Weight .................................................................. 1.86 kg/each
Specifi cations subject to change without prior notice
