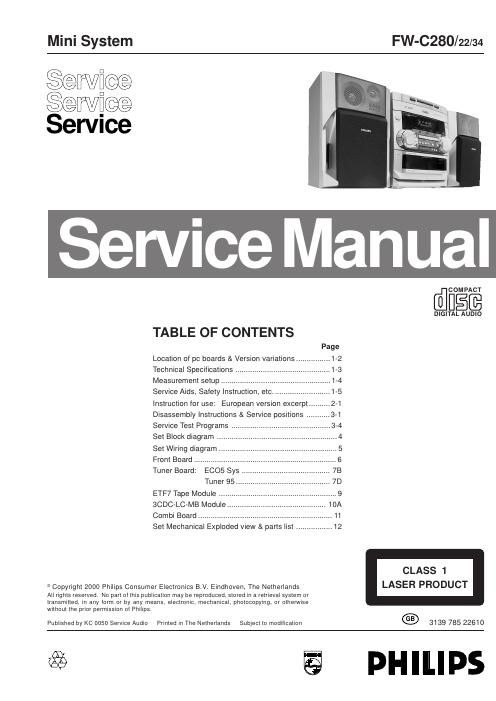

Extracted text from philips fw c 280 service manual (Ocr-read)
Page 1
1-2
ETF
BOARD
MAINS
BOARD
TUNER
BOARD
COMBI BOARD
H/P
BOARD
KARAOKE
BOARD
FRONT
BOARD
CD BOARD CD KEY BOARD
LOCATION OF PC BOARDS
/22 /34
Incredible Surround x x
Karaoke
News x x
RDS x x
Rotary Encoder (volume control) x x
Jog Shuttle x x
Voltage Selector
Aux Input x x
Digital Output
Headphone Socket x x
Line Output
Subwoofer Output
Surround Output
Matrix Surround Loudspeakers
Standby - Clock Display x x
Standby - Dark
Tuner board - ECO5 Sys x
Tuner board - Tuner 95 x
Combi board 12W version
Combi board 18W version
Combi board 25W version x x VERSION VARIATIONS:
Type /Versions: FW-C280
Features &
Board in used:
