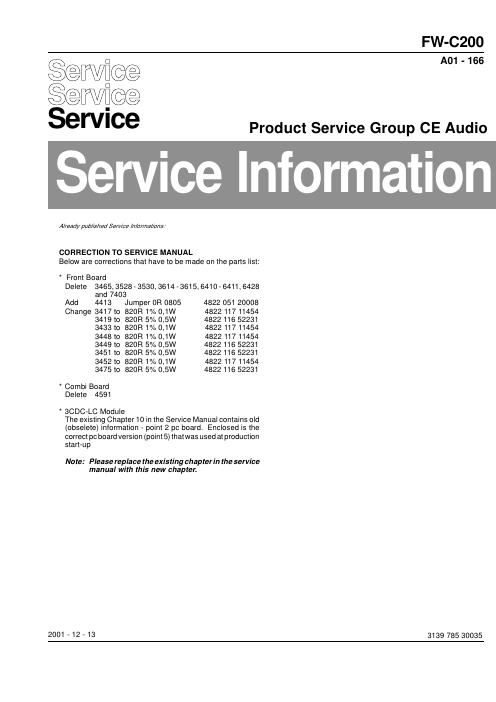

FW-C200
A01 - 166
$erv§ce
gewwe
serce Product Service Group CE Audio
Service Information
Already public/zed Service Info/mat/bns:
CORRECTION TO SERVICE MANUAL
Below are corrections that have to be made on the parts list:
Front Board
Delete 3465,3528-3530,3614-3615,6410-6411,6428
and 7403
Add 4413 Jumper OR 0805 4822 051 20008
Change 3417 to 820R 1% 0,1W 482211711454
3419 to 820R 5% 0,5W 4822 116 52231
3433 to 820R 1% 0,1W 482211711454
3448 to 820R 1% 0,1W 482211711454
3449 to 820R 5% 0,5W 4822 116 52231
3451 to 820R 5% 0,5W 4822 116 52231
3452 to 820R 1% 0,1W 482211711454
3475 to 820R 5% 0,5W 4822 116 52231
* Combi Board
Delete 4591
* 3CDC-LC Module
The existing Chapter 1 O in the Service Manual contains old
(obselete) information - point 2 pc board. Enclosed is the
correct pc board version (point 5) that was used at production
start-up
Note: Please replace the existing chapter in the service
manual with this new chapter.
2001 - 12 - 13 3139 785 30035
