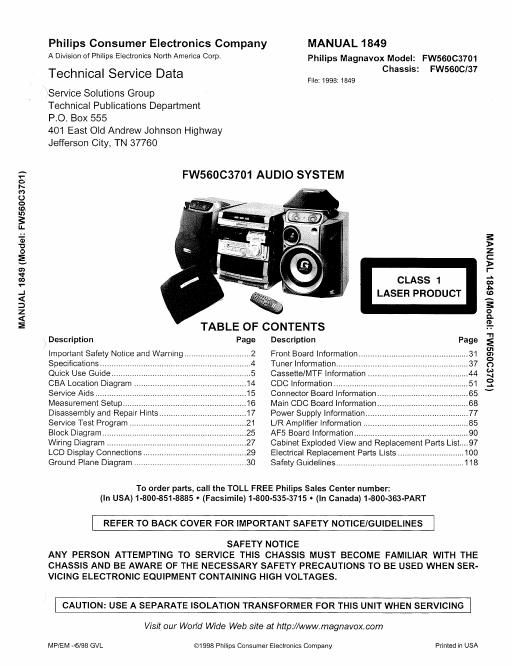

Philips fw 560 c 3701 service manual

Page 2

IMPORTANT SAFETY NOTICE

Proper service and repair is important to the safe, reliable operation of all Phil-
ips Consumer Electronics Company** equipment. The service procedures rec'
ommended by Philips and described in this service manual are effective
methods of performing service operations. Some of these service operations
require the use of tools specially designed for the purpose. The special tools
should be used when and as recommended.

It is important to note that this manual contains various CAUTIONS and
NOTICES which should be carefully read in order to minimize the risk of per-
sonal injury to service personnel. The possibility exists that improper service
methods may damage the equipment. It also is important to understand that
these CAUTIONS AND NOTICES ARE NOT EXHAUSTIVE. Philips could not pos-
sibly know, evaluate, and advise the service trade of all conceivable ways in
which service might be done or of the possible hazardous consequences of
each way. Consequently, Philips has not undertaken any such broad evaluation.
Accordingly, a servicer who uses a service procedure or tool which is not rec-
ommended by Philips must first satisfy himself thoroughly that neither his
safety nor the safe operation of the equipment will be jeopardized by the service
method selected.

** Hereafter throughout this manual, Philips Consumer Electronics Company"
will be referred to as Philips.

WARNING

Critical components having special safety characteristics are identified
with a A by the Ref. No. in the parts list and enclosed within a broken line*
(where several critical components are grouped in one area) along with
the safety symbol A on the schematics or exploded views.

Use of substitute replacement parts which do not have the same specified
safety characteristics may create shock, fire, or other hazards.

Under no circumstances should the original design be modified or altered
without written permission from Philips. Philips assumes no liability,
express or implied, arising out of any unauthorized modification of design.
Servicer assumes all liability.

*Brokenline: -___..__

FOR PRODUCTS CONTAINING LASER:

DANGER - Invisible laser radiation when open. AVOID DIRECT EXPOSURE TO BEAM.

CAUTION - Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation
exposure.

CAUTION - The use of optical instruments with this product will increase eye hazard.

TO ENSURE THE CONTINUED RELIABILITY OF THIS PRODUCT, USE ONLY ORIGINAL MANUFAC-
TURERS REPLACEMENT PARTS, WHICH ARE LISTED WITH THEIR PART NUMBERS IN THE
PARTS LIST SECTION OF THIS SERVICE MANUAL
