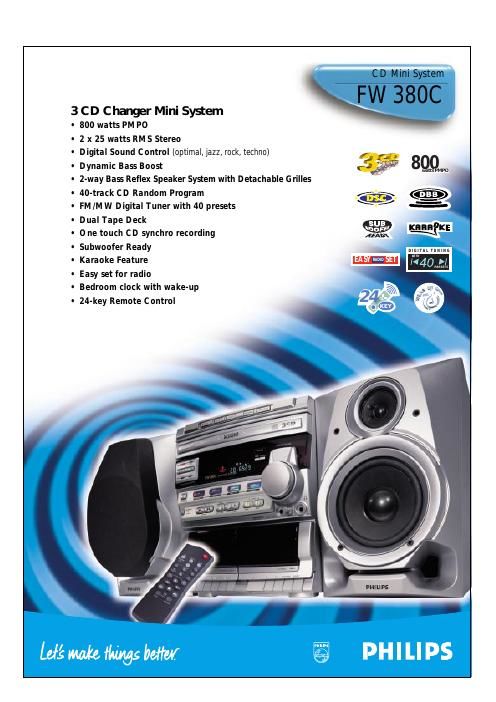

Page 1

CD Mini System

FW 380C

3 CD Changer Mini System
- 800 watts PM PO
2 x 25 watts RM 5 Stereo

Digital Sound Control (optima|,jazz, rock, techno)

Dynamic Bass Boost v 899M
2-way Bass Reflex Speaker System with Detachable Grilles

40-track CD Random Program /'\

FM /M W Digital Tuner with 40 presets \"/ -
Dual Tape Deck SUB

- KnnnOK
O ne touch CD synchro recording N

Subwoofer Ready _ DIGITAL TUNING
Karaoke Feature 40?:15
Easy set for radio

Bedroom clock with wake-up
24-key Remote Control

Page 2

CD chanmr mini system

sandard product information

amplifier
I 800 watts PM PO
I 2 x 25 watts RMS,:10%THD.6 Ohm,1kHZ
I Digital Sound Control
(optimal,jazz,rock,techno)
I Dynamic Bass Boost

compact (is player
I motorized front loadingi CD changer
I bit-check D/A converter
I 40-track CD random program
I play modes (repeat/shuffle/program)
I change 2 discs while playing 1

tmer
I FM/MW DigitalTuner with 40 presets
I easy set/auto store for radio

tape desk
I D ual Tape Deck
I high and normal speed dubbing
I CD synchro recording
I automatic recording level control
I electronic speed control

/ \

{32
Digital Sound Control
(optimal,jazz, rock, techno)
Digital Sound Control (or DSC) offers
different sound settings tailored for
specific musical styles.

Dynamic Bass Boost

Boosting bass response as much as 8
decibels (nearly 3 times more than
normal). Dynamic Bass Boost yields full
rich tonal quality at all volume levels.

louchasaka ham

2-way Bass Reflex

I 5.25" woofer

2.5" tweeter

detachable grilles

hyper energy bass port for deep powerful
bass reproduction

connections

stereo headphones :35mm stereo jack
video/aux :cinch type sockets
subwoofer out :cinch type sockets
Karaoke mic :3.5mm jack (/21./21m)

gneral
I multicolor FTD display
clock/timer
wake-up with CD or tuner
I 24-key Remote Control
I functional back-lighting guide
I Karaoke Feature (/21./21m)

[21M [21 (22 (30 I34

FMESELMMHZ
FM87 S-IOBMHZ
MW SZZrIEOZKHZ
LW 153~279kHz
FM75 O hm Clickfit I I I

mars amply
110/13nv 50-6on - -
HOV/50H z a

W

made In sticker I .

Dmuvs

EAN: 87 10101357470021)
EAN: 87 1010135748 5 (mm)
EAN: 871010136295 0 (/30)

Product Dimensmns
255mmw x 310mmH x 320mmD lcenter unit)

ZlOrrimW x 310mmH xZAOmmD (speakers)

Package Dimensions

EZArrimW x 410mmH x 474mmD

Pruductweight 14 kg

cartan cantains co Mini System,Muiti-runctian Remote Central.
Batteries (2 x AA). 0 perating instructionsW arranty inrurrnatian. FM
antennaAM antenna

Prrnted in Singapore
Date printed Sept 1993

Spenficatlons mbjett to change WiUlD ut natice
@ 1993 kanintinke Phlllps Electronics N .v.

All rigits reserved
