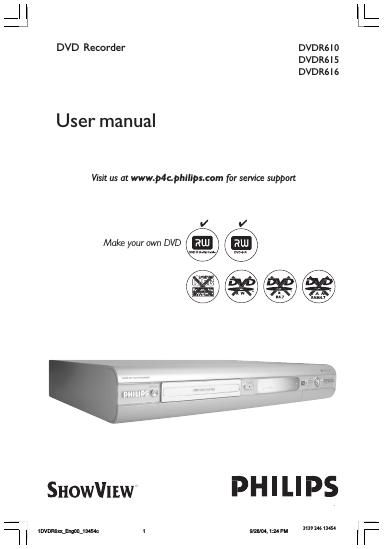

Philips dvdr 610 owners manual

Page 1

2 3139 246 13454 CAUTION Use of controls or adjustments or performance of procedures other than herein may result in hazardous radiation exposure or other unsafe operation. Important notes for users in the U.K. Mains plugThis apparatus is fitted with an approved 13 Amp plug. To change a fuse in this type of plug proceed as follows: 1 Remove fuse cover and fuse. 2 Fix new fuse which should be a BS1362 5 Amp, A.S.T.A. or BSI approved type. 3 Refit the fuse cover. If the fitted plug is not suitable for your socket outlets, it should be cut off and an appropriate plug fitted in its place. If the mains plug contains a fuse, this should have a value of 5 Amp. If a plug without a fuse is used, the fuse at the distribution board should not be greater than 5 Amp. Note: The severed plug must be disposed of to avoid a possible shock hazard should it be inserted into a 13 Amp socket elsewhere. How to connect a plugThe wires in the mains lead are coloured with the following code: blue = neutral (N), brown = live (L). ¶As these colours may not correspond with the colour markings identifying the terminals in your plug, proceed as follows: -“ Connect the blue wire to the terminal marked N or coloured black. -“ Connect the brown wire to the terminal marked L or coloured red. -“ Do not connect either wire to the ear th terminal in the plug, marked E (or e) or coloured green (or green and yellow). Before replacing the plug cover, make cer tain that the cord grip is clamped over the sheath of the lead - not simply over the two wires. Copyright in the U.K.Recording and playback of material may require consent. See Copyright Act 1956 and The Performers Protection Acts 1958 to 1972. For Customer Use: Read carefully the information located at the bottom or rear of your DVD Recorder and enter below the Serial No. Retain this information for future reference. Model No. DVD RECORDER DVDR610 / DVDR615 / DVDR616 Serial No. _______________ Due to the inconsistency of disc formats provided by various disc manufacturers, your DVD system/ player/recorder may require a playability enhancement or upgrade. As DVD technology advances, these enhancement will become common and will be easy to complete. Go to www. p4c.philips.com for software upgarde. 1DVDR6xx_Eng00_13454c 9/28/04, 1:25 PM2

Page 2

3 3139 246 13454 CAUTION VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AVOID EXPOSURE TO BEAM AD VARSEL SYNLIG OG USYNLIG LASERSTRÅLING VED ÅBNING UNDGÅ UDSÆTTELSE FOR STRÅLING VARNING SYNLIG OCH OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD BETRAKTA EJ STRÅLEN VAR O! AVATTAESSA OLET ALTTIINA NÄKYVÄLLE JA NÄKYMÄTTÖMÄLLE LASER SÄTEILYLLE. ÄLÄ KATSO SÄTEESEEN VORSICHT SICHTBARE UND UNSICHTBARE LASERSTRAHLUNG WENN ABDECKUNG GEÖFFNET NICHT DEM STRAHL AUSSETSEN ATTENTION RAYONNEMENT LASER VISIBLE ET INVISIBLE EN CAS DOUVERTURE EXPOSITION DANGEREUSE AU FAISCEAU LASERType Semiconductor laser InGaAlP (DVD) AIGaAs (CD) Wave length 658 nm (DVD) 790 nm (CD) Output Power 30 mW (DVD+RW write) 1.0 mW (DVD read) 1.0 mW (CD read) Beam divergence 84 degrees (DVD) 61 degrees (CD) This product complies with the radio interference requirements of the European Community. Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. This product complies with the requirements of the following directives and guidelines: 73/23/EEC + 89/336/EEC + 93/68/EEC 1DVDR6xx_Eng00_13454c 9/28/04, 1:25 PM3
