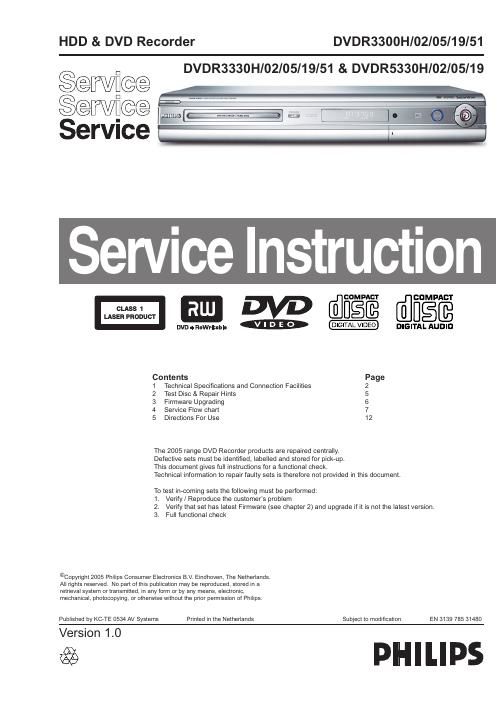

Page 1
EN 2 3139 785 31480
1. Technical Speci fi cations and Connection Facilities
1. Technical Speci fi cations and Connection Facilities
1.1 General:
Mains voltage : 220V - 240V
Mains frequency : 50 Hz
Power consumption (record) : 40 W
Standby Power Consumption : < 6 W
1.2 RF Tuner
Test equipment: Fluke 54200 TV Signal generator
Test streams: PAL BG Philips Standard test pattern
1.2.1 System
PAL B/G, PAL D/K, SECAM L/L, PAL I
1.2.2 RF - Loop Through:
Frequency range : 45 MHz - 860 MHz
Gain: (ANT IN - ANT OUT) : -5dB to 0dB
1.2.3 Receiver:
PLL tuning with AFC for optimum reception
Frequency range : 45.25 MHz - 857 MHz
Sensitivity at 40dB S/N
(video unweighted) : - 60dB μV at 75 Ω
1.2.4 Video Performance:
Channel 25 / 503,25 MHz,
Test pattern: PAL BG PHILIPS standard test pattern,
RF Level 74dBV, Measured on SCART 1
Frequency response : 0.1 MHz - 4 MHz ± 3dB
Group delay (0.1 MHz - 4.4 MHz) : 0 nsec ± 150 nsec
1.2.5 Audio Performance:
Audio Performance Analogue - HiFi:
Frequency response at SCART 1
(L+R) output : 100 Hz - 12 kHz / 0 ± 3dB
S/N Ratio (20Hz - 20kHz)
unweighted : - 50dB
Harmonic distortion (1 kHz, ± 25
kHz deviation) : - 0.5%
Audio Performance NICAM:
Frequency response at SCART 1
(L+R) output : 40 Hz - 15 kHz / 0 ± 3dB
S/N Ratio (20Hz - 20kHz)
unweighted : - 60dB
Harmonic distortion (1kHz, ± 25
kHz deviation) : - 0.5%
1.2.6 Tuning
Automatic Search Tuning
Scanning time without RF signal : 3min. typical
Stop level (vision carrier) : - 37dB/ μV
Maximum tuning error of a recalled
program : ± 100 kHz
Maximum tuning error (drift) during
operation : ± 100 kHz
Tuning Principle:
Automatic B, G, I, DK and L/L detection
Manual selection in STORE mode
1.3 Analog Inputs / Outputs
1.3.1 SCART 1 (Connected to TV)
Pin Signals:
1 Audio-out R 1.8V RMS
2 Audio-in R
3 Audio-out L 1.8V RMS
4 Audio GND
5 Blue / Chroma GND
6 Audio-in L
7 Blue-out / 0.7Vpp ± 0.1V into 75 Ω
Chroma-in
8 Function switch < 2V = TV
> 4.5V / < 7V = asp. Ratio 16:9 DVD
> 9.5V / < 12V = asp. Ratio 4:3 DVD
9 Green GND
10 P50 control not use
11 Green out 0.7Vpp ± 0.1V into 75 Ω
12 NC
13 Red / Chroma GND
14 Fast switch GND
15 Red-out / 0.7Vpp ± 0.1V into 75 Ω
Chroma-out 300mVpp ± 3dB
16 Fast switch
RGB / CVBS or Y < 0.4V into 75 Ω = CVBS
>1V / < 3V into 75 Ω = RGB
17 Y/CVBS-out GND
18 CVBS-in GND
19 CVBS-out / Y-out 1Vpp ± 0.1V into 75 Ω
20 CVBS-in
21 Shield
1.3.2 SCART 2 (Connected to AUX)
Pin Signals:
1 Audio-out R 1.8V RMS
2 Audio-in R
3 Audio-out L 1.8V RMS
4 Audio GND
5 Blue / Chroma GND
6 Audio-in L
7 Blue-in /
Chroma-out 300mVpp ± 3dB
8 Function switch
9 Green GND
10 P50 control
11 Green-in
12 NC
13 Red / Chroma GND
14 Fast switch GND
15 Red-in /
Chroma-in
16 Fast switch
RGB / CVBS or Y
17 CVBS-out GND
18 Y / CVBS-in GND
19 CVBS-out 1Vpp ± 0.1V into 75 Ω
20 CVBS-in / Y-in
21 Shield
Page 2
EN 3 3139 785 314801. Technical Speci
fi cations and Connection Facilities
1.3.3 Audio/Video Front Input Connectors
Audio - Cinch
Input voltage : 2Vrms
Input impedance : > 10k Ω
Video - Cinch
Input voltage : 1Vpp ± 3dB
Input impedance : 75 Ω
Video - YC (Hosiden)
According to IEC 933-5
Superimposed DC-level on pin 4 (load > 100k Ω)
< 2.4V is detected as 4:3 aspect ratio
> 3.5V is detected as 16:9 aspect ratio
Input voltage Y : 1Vpp ± 3dB
Input impedance Y : 75 Ω
Input voltage C : 300mVpp ± 3dB
Input impedance C : 75 Ω
1.3.4 Audio/Video Output rear Connectors
Audio - Cinch
Output voltage : 2Vrms max.
Output impedance : > 10k Ω
Video - Cinch
Output voltage : 1Vpp ± 3dB
Output impedance : 75 Ω
Video - YC (Hosiden)
According to IEC 933-5
Superimposed DC-level on pin 4 (load > 100k Ω)
< 2.4V is detected as 4:3 aspect ratio
> 3.5V is detected as 16:9 aspect ratio
Output voltage Y : 1Vpp ± 3dB
Input impedance : 75 Ω
Output voltage C : 300mVpp ± 3dB
Input impedance : 75 Ω
1.4 Digital Inputs / Outputs
1.4.1 Digital Output
Digital Audio - Coaxial / Optical
LCM : according IEC 60958
MPEG 1, MPEG 2, AC3 : according IEC 61937
DTS : according IEC 61937 + addendum
1.4.2 Digital Video Input (IEEE 1394)
Implementation Standard according:
IEEE Std 1394-1995
IEC61883 - Part1
IEC61883 - Part 2 SD-DVCR (02-01-1997)
Speci fi cation of consumer use digital VCRs using 6.3mm
magnetic tape - dec.1994
Mechanical connection according to Annex of IEC 61883-1
1.5 Video Performance
All outputs loaded with 75 Ω
SNR measurements over full bandwidth without weighting.
1.5.1 SCART (RGB)
SNR : - 55dB on all output
Bandwidth : 4.8MHz -3dB
1.6 Audio Performance
1.6.1 Cinch Output Rear
Output voltage 2 channel mode : 1.8Vrms ± 2dB
Channel unbalance (1kHz) : < 1dB
Crosstalk 1kHz : > 85dB
Crosstalk 20Hz-20kHz : > 70dB
Frequency response 20Hz-20kHz : ± 0.5dB
Signal to noise ratio (unweighted) : > 80dB
Dynamic range 1kHz : > 75dB
Distortion and noise 1kHz : > 70dB
Distortion and noise 20Hz-20kHz : > 55dB
Intermodulation distortion : > 70dB
Mute : > 85dB
Outband attenuation (above 30kHz) : > 40dB
1.6.2 Scart Audio
Output voltage 2 channel mode : 1.4Vrms ± 2dB
Channel unbalance (1kHz) : < 1dB
Crosstalk 1kHz : > 85dB
Crosstalk 20Hz-20kHz : > 70dB
Frequency response 20Hz-20kHz : ± 0.5dB
Signal to noise ratio (unweighted) : > 80dB
Dynamic range 1kHz : > 75dB
Distortion and noise 1kHz : > 70dB
Distortion and noise 20Hz-20kHz : > 55dB
Intermodulation distortion : > 70dB
Mute : > 85dB
Outband attenuation (above 30kHz) : > 40dB
1.7 Dimensions and Weight
Height of feet : 5.5mm
Apparatus tray closed : WxD xH:435x340x65mm
Apparatus tray open : WxD xH:435x477x65mm
Weight without packaging : 4.3kg
Weight with packaging : 6.0kg
1.8 Laser Output Power & Wavelength
1.8.1 DVD
Output power during reading : 0.8mW
Output power during writing : 20mW
Wavelength : 650nm
1.8.2 CD
Output power : 0.3mW
Wavelength : 780nm
1.9 Read / Write Speed
Type of Disc (Function) Disc Rotation Speed
Read Speed CD 7X CAV
Read Speed DVD 4X CAV
Write Speed DVD+R/+RW 2.4X ZCAV
Write Speed DVD-R/-RW 2X
1.10 Commercial Difference
DVDR3300H DVDR3330H DVDR5330H
HDD capacity 80GB 160GB 250GB
