Philips dvd 963 sa service manual

This is the 91 pages manual for philips dvd 963 sa service manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 91
left right
philips dvd 963 sa service manual

Extracted text from philips dvd 963 sa service manual (Ocr-read)

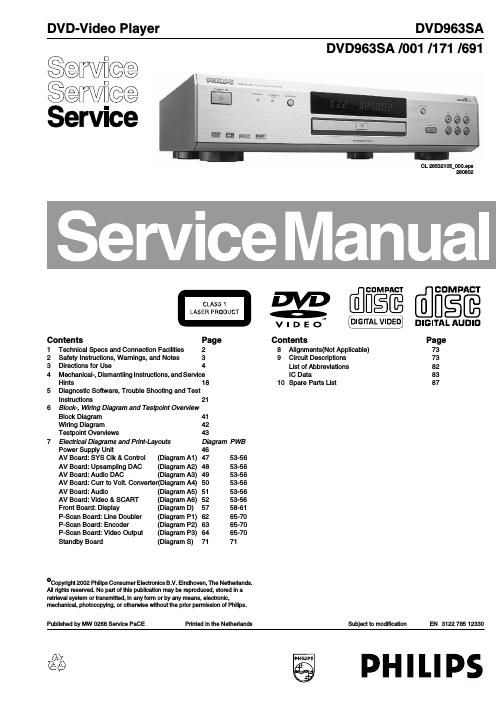

Page 1

Technical Specifications and Connection Facilities EN 2 DVD963SA 1. 1. Technical Specifications and Connection Facilities PLAYBACK SYSTEM DVD Video SACD multi channel and SACD stereo Video CD & SVCD CD (CD-Recordable and CD-Rewritable) MP3 CD TV STANDARD (PAL/50Hz) (NTSC/60Hz) Number of lines 625 525 Playback Multistandard (PAL/NTSC) VIDEO PERFORMANCE RGB output 0.7 Vpp into 75 ohm YUV output Y: 1Vpp into 75 ohm Pr/Cr Pb/Cb: 0.7Vpp into 75 ohm S-Video output Y: 1Vpp into 75 ohm C: 0.3Vpp into 75 ohm Video output 1 Vpp into 75 ohm Black Level Shift On/Off Video Shift Left/Right AUDIO FORMAT DSD Multichannel and Stereo MPEG/ Compressed Digital Dolby Digital16, 20, 24 bits DTS/PCMfs, 44.1, 48, 96 kHz MP3 96, 112, 128, 256 kbps and (ISO 9660) variable bit rate fs 32, 44.1, 48kHz Full decoding of Dolby Digital and DTS multi channel sound Analogue Stereo Sound Dolby Surround-compatible downmix from Dolby Digital multi-channel sound 3D Sound for vir tual 5.1 channel sound on 2 speakers SACD AUDIO PERFORMANCE D/A Conver ter DSD SACD fs 2.8224MHz DC - 100kHz Max. output voltage (0dB) 2V r ms Channel unbalance <0.5 dB Cut-off frequency 50kHz (Front) 40kHz (Surround, Centre, Subwoofer) Signal-Noise (1kHz) -125 dB Dynamic Range (1kHz) -105 dB Crosstalk (1kHz) -120 dB Total Harmonic Distor tion (1kHz) -100 dB AUDIO PERFORMANCE (Without upsampling) DA Conver ter 24 bits DVD fs 96 kHz 4 Hz - 44 kHz CD/Video CD fs 44.1 kHz 4 Hz - 20 kHz S-Video CD fs 48 kHz 4 Hz - 22 kHz fs 44.1 kHz 4 Hz - 20 kHz Signal-Noise (1kHz) < -120 dB Dynamic Range (1kHz) < -95 dB Crosstalk (1kHz) < -110 dB Total Harmonic Distor tion (1kHz) < -95 dB MPEG MP3 MPEG Audio L3 CONNECTIONS SC ART 2x Euroconnector Y Pb/Cb Pr/Cr (480i/p) Cinch 3x (green, blue, red) S-Video Output Mini DIN, 4 pins Video Output Cinch (yellow) 2x Audio L+R output Cinch (white/red) Digital Output 1 coaxial, 1 optical IEC958 for CDDA / LPCM IEC1937 for MPEG1/2, Dolby Digital, DTS 6 channel analogue output Audio Front L/R Cinch (white/red) Audio Surround L/R Cinch (white/red) Audio Centre Cinch (blue) Audio Subwoofer Cinch (black) CABINET Dimensions (w x h x d) 435 x 101 x 315 mm Weight Approximately 4.6 Kg POWER SUPPLY Power inlet 110-240V, 50/60Hz Power usage Approx. 30W Power usage standby < 1W * typical playing time for movie with 2 spoken languages and 3 subtitle languages Specifications subject to change without prior notice Specifications CL 26532105_050.pdf 280802

Page 2

Safety Instructions, Warnings and Notes EN 3 DVD963SA 2. 2. Safety Instructions, Warnings and Notes 2.1 Safety Instructions 2.1.1 General Safety Safety regulations require that during a repair: - Connect the unit to the mains via an isolation transformer.  Replace safety components, indicated by the symbol , only by components identical to the original ones. Any other component substitution (other than original type) may increase risk of fire or electrical shock hazard. Safety regulations require that after a repair, you must return the unit in its original condition. Pay, in particular, attention to the following points:  Route the wires/cables correctly, and fix them with the mounted cable clamps.  Check the insulation of the mains lead for external damage.  Check the electrical DC resistance between the mains plug and the secondary side: 1. Unplug the mains cord, and connect a wire between the two pins of the mains plug. 2. Set the mains switch to the 'on' position (keep the mains cord unplugged!). 3. Measure the resistance value between the mains plug and the front panel, controls, and chassis bottom. 4. Repair or correct unit when the resistance measurement is less than 1 M-„¦. 5. Verify this, before you return the unit to the customer/ user (ref. UL-standard no. 1492). 6. Switch the unit off, and remove the wire between the two pins of the mains plug. 2.1.2 Laser Safety This unit employs a laser. Only qualified service personnel may remove the cover, or attempt to service this device (due to possible eye injury). Laser Device Unit Type : Semiconductor laser GaAlAs Wavelength : 650 nm (DVD) : 780 nm (VCD/CD) Output Power : 20 mW (DVD+RW writing) : 0.8 mW (DVD reading) : 0.3 mW (VCD/CD reading) Beam divergence : 60 degree Figure 2-1 Class 1 Laser Product Note: Use of controls or adjustments or performance of procedure other than those specified herein, may result in hazardous radiation exposure. Avoid direct exposure to beam. 2.2 Warnings 2.2.1 General  All ICs and many other semiconductors are susceptible to electrostatic discharges (ESD, symbol ). Careless handling during repair can reduce life drastically. Make sure that, during repair, you are at the same potential as the mass of the set by a wristband with resistance. Keep components and tools at this same potential. Available ESD protection equipment: -“ Complete kit ESD3 (small tablemat, wristband, connection box, extension cable and earth cable) 4822 310 10671. -“ Wristband tester 4822 344 13999.  Be careful during measurements in the live voltage section. The primary side of the power supply (pos. 1005), including the heatsink, carries live mains voltage when you connect the player to the mains (even when the player is 'off'!). It is possible to touch copper tracks and/or components in this unshielded primary area, when you service the player. Service personnel must take precautions to prevent touching this area or components in this area. A 'lightning stroke' and a stripe-marked printing on the printed wiring board, indicate the primary side of the power supply.  Never replace modules, or components, while the unit is on. 2.2.2 Laser  The use of optical instruments with this product, will increase eye hazard.  Only qualified service personnel may remove the cover or attempt to service this device, due to possible eye injury.  Repair handling should take place as much as possible with a disc loaded inside the player.  Text below is placed inside the unit, on the laser cover shield: Figure 2-2 Warning text 2.2.3 Notes Dolby Manufactered under licence from Dolby Laboratories. Dolby, Pro Logic and the double-D symbol are trademarks of Dolby Laboratories. Confidential Unpublished Works. ©1992-1997 Dolby Laboratories, Inc. All rights reserved. Figure 2-3 Trusurround TRUSURROUND, SRS and symbol (fig 2-4) are trademarks of SRS Labs, Inc. TRUSURROUND technology is manufactured under licence frm SRS labs, Inc. Figure 2-4 CAUTION VISIBLE AND INVISIBLE LASER RADIATI ON WHEN OPEN AVO ID EXPOSURE TO BEAM ADVARSEL SYNLIG OG USYNLIG LASERSTRĂ…LING VED Ă…BNING UNDGĂ… UDSÆTTELSE FOR STRĂ…LING ADVARSEL SYNLIG OG USYNLIG LASERSTRĂ…LING NĂ…R DEKSEL Ă…PNES UNNGĂ… EKSPONERING FOR STRĂ…LEN VARNI NG SYNLIG OCH OSYNLIG LASERSTRĂ…LNING NĂ„R DENNA DEL Ă„R Ă–PPNAD BETRAKTA EJ STRĂ…LEN VARO ! AVATT AESSA OLET ALTTIINA NĂ„KYVĂ„L LE JA NĂ„KYMĂ„TT Ă–MĂ„LLE LASER SĂ„TEILYLLE. Ă„LĂ„ KAT SO SĂ„T EESEEN VORSICHT SICHTBARE UND UNSICHTBARE LASERSTRAHLUNG WENN ABDECKUNG GEĂ–FFNET NICHT DEM STRAHL AUSSETSEN DANGER VISIBLE AND INVISIBLE LASER RADIATI ON WHEN OPEN AVO ID DIRECT EXPOSURE TO BEAM AT TENTION RAYO NNEMENT LASER VISIBLE ET INVISIBLE EN CAS D'OUVERTURE EXPOSITION DANGEREUSE AU FAISCEAU !
