Philips dc 912 service manual

This is the 24 pages manual for philips dc 912 service manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 24
left right

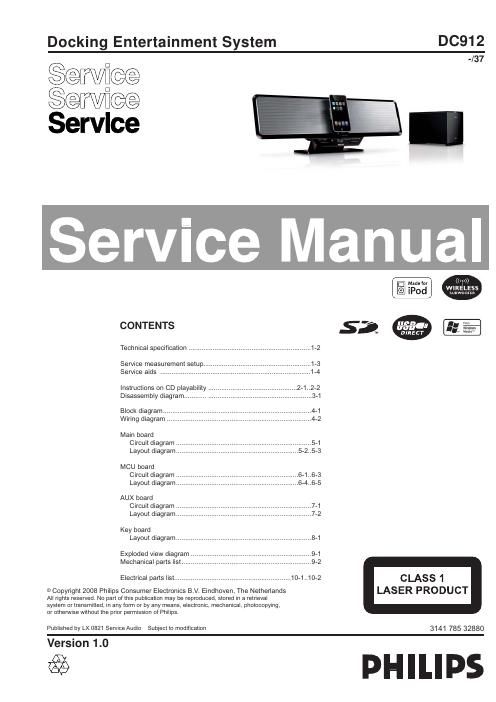

philips dc 912 service manual

Extracted text from philips dc 912 service manual (Ocr-read)


Page 1

AMPLIFIER Output power ....................................... 2 x 25 W RMS Signal-to-noise ratio .......................................-‰¥ 70 dBA Frequency response ...... 20 Hz -“ 20 KHz, ± 3 dB (Subwoofer) ................................................ 50 - 180Hz Input sensitivity AUX ....................... 0.5 V (max. 2 V) Impedance loudspeaker s ......................................... 4 Ω (Subwoofer) ............................................................... 8 W TUNER FM wave range ................................... 87.5 -“ 108 MHz Antenna FM ....................................................................... 75 Ω wire USB PLAYER/SD/MMC CARD USB ................................................................... 12Mb/s,V1.1 ......................................... suppor t MP3 and WMA files Number of albums/folders ................. maximum 99 Number of tracks/titles ...................... maximum 400 GENERAL INFORMATION AC Power (for the main uint)............100 -“ 240 V, ........................................................................\ ............ 50/60 Hz AC Power (for the subwoofer)..............110V, 60Hz Dimensions (w x h x d, main unit) ........................................................210 x 200 x 567 \ (mm) Dimensions (w x h x d, subwoofer) ...........................................................70 x 197 x 302 (mm) Weight (main unit) .................................................... 3 kg Weight (subwoofer) ............................................. 3.3 kg Wireless subwoofer connection.........2.4GHz, AFH Standby power consumption ............................ <2 W Eco power standby ................................................. <1 W Specifications and external appearance are subject to change without notice.TECHNICAL SPECIFICATION 1 - 2

Page 2

1-3 LF Generator e.g. PM5110 Recorder Use Universal Test Cassette CrO2SBC419 4822 397 30069 LEVEL METERe.g. Sennheiser UPM550 with FF-filter S/N and distortion met e e.g. Sound Technology ST170 L R DUT or Universal Test Cassette FeSBC420 4822 397 30071 LEVEL METERe.g. Sennheiser UPM550 with FF -filter S/N and distortion metere.g. Sound Technology ST1700B L R DUT CD Use Audio Signal Disc (replaces test disc 3) SBC429 4822 397 30184 Bandpass 250Hz-15kHz e.g. 7122 707 48001 LF Voltmeter e.g. PM2534 DUT S/N and distortion meter e.g. Sound Technology ST1700B Frame aeriale.g. 7122 707 89001 Tuner AM (MW,LW) To avoid atmospheric interference all AM-measurements have to be carried out in a Faraday´s cage. Use a bandpass filter (or at least a high pass filter with 250Hz) to e\ liminate hum (50Hz, 100Hz). RF Generator e.g. PM5326 Ri=50 : Bandpass 250Hz-15kHz e.g. 7122 707 48001 LF Voltmeter e.g. PM2534 DUT RF Generator e.g. PM5326 S/N and distortion meter e.g. Sound Technology ST1700B Use a bandpass filter to eliminate hum (50Hz, 100Hz) and disturbance f\ rom the pilottone (19kHz, 38kHz). Ri=50 : Tuner FM MEASUREMENT SETUP
