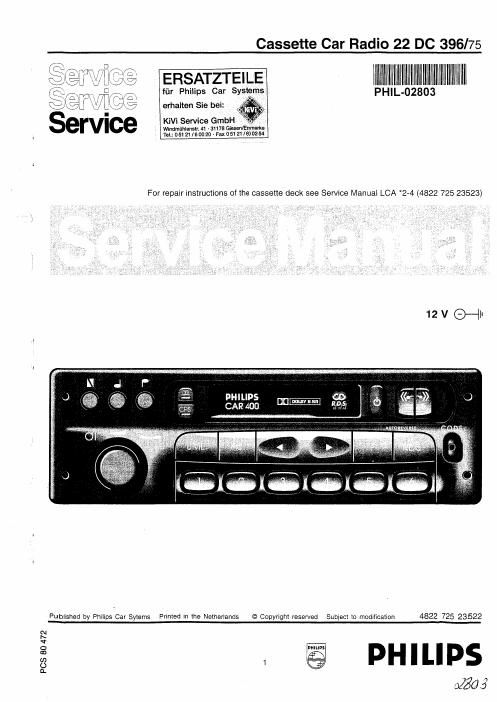

Page 1

PCS 80 472

(91% Ha FDG/ I
867% fiL/Lv 3%
(ff/Q @[ W /fil_(/\_i/Q\

\V/ 5:5

Service

Cassette Car Radio 22 DC 396/75

ERSATZTEILE

fiIr Philips Car Systems
erhalten Sie bei: ,

a
KiViService GmbH -/
Windmuhlenstr 41- 31175 Giesen/Emmetke
Teiui15121/60020 Fax05121/600254

MilliMillililiillilllillillillliililillilllliilll

PHIL-02803

For repair instructions of the cassette deck see Service Manual LCA '2-4 (4822 725 23523)

12v G-iII

Pubiished by Philips Car Sytems

PHILIPS
CAR 400

Printed in the Netherlands

© Copyright reserved Subject to modification

PNllIDS

4822 725 23 522

PHILIPS

02303

Page 2

PCS 80 474

PHILIPS

CARAOO. F1-

|
20 l9 l8 17 1615 I4 13 12

RADIO CONTROLS

1. On/Off, Volume Balance

push: on/off (see also on/ofi-automatic)
turn: adjust volume

pull-turn: adjust balance

2. Fader

push: sink and release the button
turn: adjust fader

3: Bass

push: sink and release the button
turn: adjust bass

4. Treble

push: sink and release the button
turn: adjust treble

5. Dolby

push: switch DOLBY B on/off

6. CPS (CASSETTE PROGRAM SEARCH)
push: MSS on/oft

7. Cassette flap

8. Cassette standby

push: switch between cassette and radio mode
9. FRW
push down: - while normal cass. mode: fast rewind (radio during wind)

- while CPS-mode:

~ together with FFW button:

push half: - while fast forward wind:

- together with FFW button:

10. FFW
push down: - while normal cass. mode:
- while CPS-mode:
- together with FRW button:
push half: - while fast rewind:

- together with FRW button:

wind back to the beginning of actual track (no radio during wind)
eject cassette

stop fast forward and playback from the current tape position
change play direction

fast fonivard wind (radio during wind)

wind to the beginning of next track (no radio during wind)
eject cassette

stop fast rewind and playback from the current tape p osition
change play direction

3 2200396/7 5
