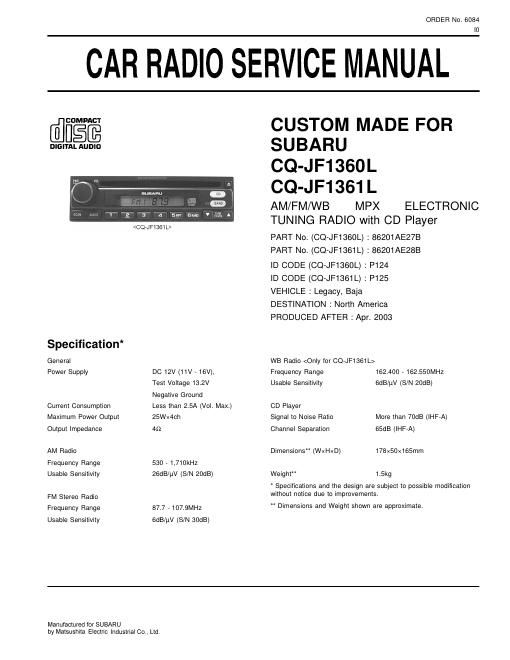

ORDER NO. 6084

CAR RADIO SERVICE MANUAL
MW" CUSTOM MADE FOR
DIGITAL AUDIO S U B A R U
CQ-JF1360L
63 CQ-JF1361 L
i" W AM/FM/WB MPX ELECTRONIC

' '56? em V IxIaIE. A

Specification*
General

Power Supply DC 12V (11V - 16V),
Test Voltage 13.2V
Negative Ground

Current Consumption Less than 2.5A (Vol. Max.)

Maximum Power Output 25WX4CI1
Output Impedance 49
AM Radio

Frequency Range 530 - 1,710kHz

Usable Sensitivity 26dB/uV (S/N 20dB)
FM Stereo Radio
Frequency Range 87.7 - 107.9MHZ

Usable Sensitivity SdB/uV (S/N 30dB)

TUNING RADIO with CD Player

PART No. (CQ-JF1360L) : 86201AE27B
PART No. (CQ-JF1361L) : 86201AE2BB

ID CODE (CQ-JF1360L) : P124
ID CODE (CQ-JF1361L) : P125
VEHICLE : Legacy, Baja
DESTINATION : North America
PRODUCED AFTER : Apr. 2003

WB Radio
Frequency Range 162.400 - 162.550MH2
Usable Sensitivity edB/uv (S/N ZOdB)
CD Player

Signal to Noise Ratio More than 70dB (IHF-A)

Channel Separation 65dB (lHF-A)
Dimensions (WxHxD) 178x50x165mm
Weight" 1.5kg

Specifications and the design are subject to possible modification
without notice due to improvements.

" Dimensions and Weight shown are approximate.

Manufactured for SUBARU
by Matsushita Electric Industrial Co , Ltd

Page 2

CONTENTS

Page Page
1 FEATuERS ------------------------------------------------------------------------------ 2 9 PACKAGE AND Ic BLOCK DIAGRAM ------------------------------------- a
2 LASER PRODUCTS 10 REPLACEMENT PARTS LIST ---10
3 REAR VIEw ----------- 11 EXPLODED VIEw (Unit) -------- ---15
4 FRONT VIEW AND FUNCTIONS ---------------------------------------------- 3 12 CD PLAYER PARTS -------------------------------------------------------------- 16
5 WIRING CONNECTION ------------ 13 EXPLODED VIEw (CD Deck)- ...17
6 BLOCK DIAGRAM (Main Block)- 14 WIRING DIAGRAM .............. ...13
7 BLOCK DIAGRAM (CD Servo Block) --------------------------------------- 5 15 SCHEMATIC DIAGRAM-1 ...................................................... 23
8 TERMINALS DESCRIPTION ----------------------------------------------------- 6 16 SCHEMATIC DIAGRAM-2 ...................................................... 25

3 REAR VIEW

1 FEATUERS

~ PLL (Phase Locked Loop) synthesized tuning.

'24-station preset (12-FM, 6-AM, 6-WB JF1361L>)

~ Scan Tuning.
~ CD player Repeat, Random, Scan function.
~ CD changer control.

a. R (+) Input i.
b. Sig.GND j.
c. L (+) Input k.
d. No Connection |_
e. No Connection m.
t. No Connection n.
g. BUS Ground 0.
h. BUS Line p.

Power Supply, ACC
P. GND

Power Supply, +B
System Mute
Illumi. Cont.

No Connection

No Connection

No Connection

~ Electronic sound control function.

2 LASER PRODUCTS

Do not take apart this unit or attempt to make any
changes yourself.

This unit is very intricate that uses a laser pickup to
retrieve information from the suface of compact discs.
The laser is carefully shielded so that its rays remain
inside the cabinet. Therefore. never try to
disassemble the player or alter any of its parts since
you may be exposed to laser rays and dangerous
voltages.

Laser products :

Wave length 780nm

, _ . 1. Illumi. (+) 8. Front SP, Rch (-)
Laser power No hazardous radIatIon IS 2 Front SP, Rch (+) 9. Front SP, Lch l')
emitted with safety protection. 3. Front SP, Lch (+) 10- Power SUPPIY. ACC
4. Rear SP, Rch (+) 11. Ground
5. Rear SP, Lch (+) 12. Rear SP, Ftch (-)
- 6. Power Supply, +8 13. Rear SP, Lch (-)
Caution 7. Illumi. (-) 14. Motor Antenna

This product utilizes a laser.

Use of controls or adjustments or performance of
procedures other than those specified herein may
result in hazardous radiation exposure.
