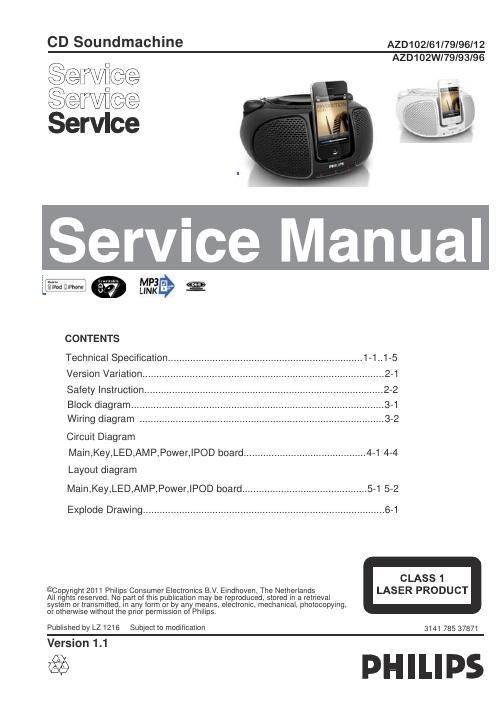

Philips az d 102 service manual

Page 2

TECHNICAL SPECIFICATION

General description:

1-1

For operation and themial stability test :
220/230/240Vac setting : l98Vac to 264Vac
lZOVac setting : 99Vac to 140Vac

dual voltage ac setting (lZOVac / 230Vac) : 99Vac to 140Vac and l96Vac to 264Vac

LIFETIME : 5 YEARS (ACC. T0 UAN-D1611) 2
PERFORMANCE CLASSES :
SUPPLY, SPEAKER REC.
TUNER AMPLIFIER BOXES RECORDER CLOCK CD DCC TELEPHONE PLAYER
l x x 3
II x 4
III 5
SAFETY REQUIREMENTS:
EN 60065 (IEC 65) CE 6
RADIATION, IMMUNITY REQUIREMENTS: (EMC)
Pre-scan for EN55013, . 7
CLIMATIC REQUIREMENTS: (acc to UAN-D1590)
A11 climates: -10 °C till +50 °C (Functional); Set has to be pre-conditloned for 2 hour, except CD function 8
For all measurements: 25 C 9
POWER SUPPLY:
MAINS (AC) operation DC (int. 0r ext.) operation / Backup Buffer
Voltage selection: 56% table below Battery type: R14, UMZ, C-cell x 6.: nom.: W 10
minimum operating voltage : 63V for CD / Tape
52V for TU
Selection: 56% table below Lifetime: CD 2 10 hours, TU 2 20 hours, 1 l
(400mW, R14 (Mil. alkaline batteries)
Frequency: Seem? below External DC: No 12
POWER CONSUMPTION:
Standby: S 0.5W (power off mode) Standby: «:0: SnW (power off mode) 13
Maximum: 15 w Maximum: 14
General:
Q and R according to production division rules : Q 5 1% (Major), Q j 4% (Minor)
Measured according to: R f 3% (CE52)
DERIVED VERSIONS: APPROBATION
Version AC Voltage/ Safety Tuner
Frequency on typeplate Tolerance
/05 230VAC/ +/-10% FM,
50HZ I5
/12/ 220V7240VAC/ +/-10% FM,
50HZ
79 230VAC +/-10% FM,
50HZ
37 lZOVAC/ ~/-10% FM.
601-12
REMARKS: l6
