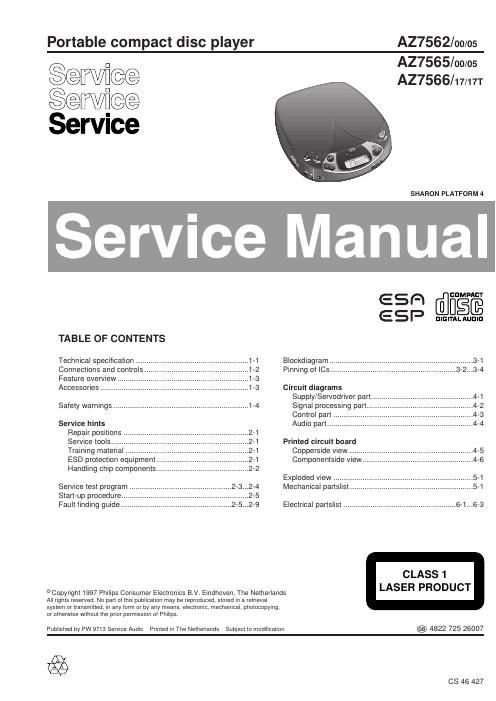

Philips az 7566 service manual

Page 1

1-1 CS 46 428 TECHNICAL SPECIFICATION General Dimensions (WxHxD):134x30.5x154mm Weight without batteries:250g Power supply modes DC-in socket:4.5-5.5V Battery 2xLR6:1.8-3.6V Accu-pack AY3360 (NiMH):1.8-3.6V Accu-pack AY3361 (NiCd):1.8-3.6V Battery lifetime Battery empty detection Battery weak level:2.1V nom. ±150mV Battery empty level:1.9V nom. ±100mV Charge circuit Charge current:300mA ±10% Charge time for 80%:4hrs nom. Max. charge time (µP controlled):6hrs nom. Temperature protection:50°C ±5°C Current consumption (DC-in=4.5V, excl. illumination) Current consumption (Batt. supply=2.25V, excl. illumin.) Shock resistance(ESA off) +X/-X direction:>2.5G +Y/-Y direction:>2.5G +Z/-Z direction:>2.0G Shock resistance by use of car base(ESA off) +X/-X direction:>6G +Y/-Y direction:>6G +Z/-Z direction:>6G Headphone out (measured with 16½load) Max. output power (THD=10%):2x7mW (+1/-3dB) Frequency response (1mW):20Hz-20kHz within 6dB S/N ratio (unw.):>80dB (83dB typ.) S/N ratio (A-wght):>85dB (88dB typ.) THD+N (1kHz, 1mW):<1% (0.2% typ.) Channel crosstalk (1kHz, no load):<-50dB Channel unbalance (-40dB):<1dB Volume attenuation (1kHz):>80dB Headphone out under CD-out conditions (volume at maximum, load impedance 47k½) Output level (1kHz, 0dB):680Vrms ±2dB Frequency response:20Hz-20kHz within 4dB S/N ratio (unw.):>85dB (90dB typ.) S/N ratio (A-wght):>90dB (95dB typ.) THD+N (1kHz, 0dB):<0.2% (0.05% typ.) THD+N (1kHz, -20dB):<0.3% (0.1% typ.) Channel crosstalk (1kHz):<-60dB (-70dB typ.) Channel crosstalk (10kHz):<-40dB (-50dB typ.) Channel unbalance (1kHz, 0dB):<0.5dB (0.2dB typ.) Optical output(not on all versions) Connection:3.5mm optical fiber jack Specification according to IEC958. Laser Output power:<5mW (3mW typ.) Wavelength:780nm Measurement setup Use Audio Signal disc SBC4294822 397 30184 L R LEVEL METERe.g. Sennheiser UPM550 with FF-filter S/N and distortion metere.g. Sound Technology ST1700B N O I T A R E P ON O I T A R E P O N O I T A R E P ON O I T A R E P ON O I T A R E P OF F O A S EF F O A S E F F O A S EF F O A S EF F O A S EN O A S EN O A S E N O A S EN O A S EN O A S E e d o m - y a l PA m 0 5 3 < . p y t A m 0 7 2A m 0 1 4 < . p y t A m 5 1 3 e d o m - p m u JA m 0 8 6 < . p y t A m 0 6 4A m 0 8 6 < . p y t A m 0 7 5 y b - d n a t S ) e g r a h c e r . l c x e (0 5 . p y t s r h 5 . 5s r h 5 7 . 2 > . p y t s r h 5 . 4 0 6 3 3 Y A k c a p - u c c A ) h A m 0 0 2 1 , H M i N (s r h 0 . 3 > . p y t s r h 0 . 4s r h 5 . 2 > . p y t s r h 5 . 3 1 6 3 3 Y A k c a p - u c c A ) h A m 0 0 7 , d C i N (s r h 8 . 1 > . p y t s r h 5 2 . 2s r h 5 . 1 > . p y t s r h 0 . 2

Page 2

DISPLAY. . . . . . . . . . . Window for showing the different playing modes, tracks and times ¤. . . . . . . . . . . . . . . . . Button for selecting the next music track or, if held down, for searching forward for a particular passage on the CD °. . . . . . . . . . . . . . . . . Button for selecting the previous music track or, if held down, for searching backward for a particular passage on the CD VOLUME. . . . . . . . . . . Control for adjusting the volume at the headphone output HOLD / RESUME. . . . Switch for activating the HOLD function (blocking all buttons) and/or RESUME function (resuming CD play) MODE0. . . . . . . . . . . Button for selecting the different playing modes: SHUFFLE ®SHUFFLE REPEAT ALL®REPEAT 1®REPEAT ALL®SCAN®off PROG. . . . . . . . . . . . . Button for storing tracks in a program and for reviewing the program DSP. . . . . . . . . . . . . . . Digital Sound Processing:Button for selecting the different sound settings at the headphone output: ROCK®POP®CAR®INCREDIBLE SOUND®off STOP9. . . . . . . . . . . . Button for stopping CD play, deleting various settings, switching off the CD player and activating charging OPEN. . . . . . . . . . . . . Slide control for opening the lid of the CD player 2;. . . . . . . . . . . . . . . . Button for starting and pausing CD play ESA. . . . . . . . . . . . . . . Electronic Shock Absorption:Switch for activating the electronic buffer memory for an undisturbed sound REMOTE p. . . . . . . . . Headphone and remote control socket (3.5mm) Digital out (optical). . For connecting the CD player to a Digital in (optical) socket in an amplifier or a digital recorder by means of an optical cable 4,5 V DC. . . . . . . . . . . Socket for external power supply Battery compartmentfor inserting batteries Note:In case of power supply via the DC jack (mains adapter or cigarette lighter in the car) the display and the play button are backlighted. In battery mode, the illumination is activated for 10 seconds after key operations. 1-2 CS 46 429 CONNECTIONS AND CONTROLS DSP PROGRAM MODE HOLD / RESUME VOLUME PREVIOUS NEXT DISPLAY ESA PLAY / PAUSE OPENSTOP OPTICAL DIGITAL OUTPUT HEADPH. / REMOTE BATTERIES6 V DC
