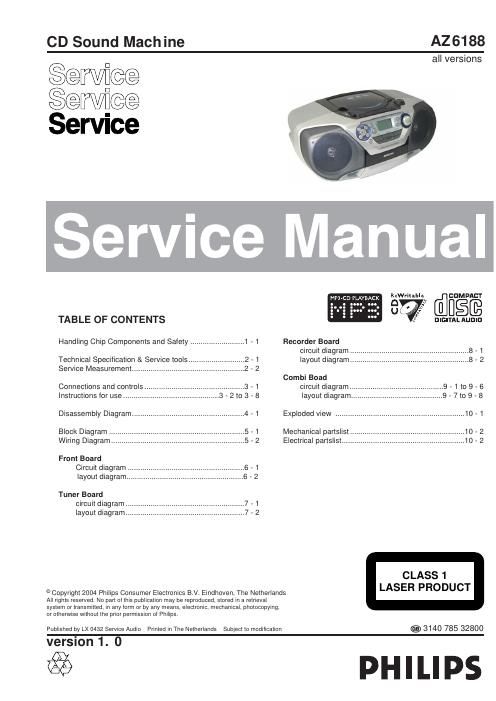

This is the 31 pages manual for philips az 6188 service manual. Read or download the pdf for free.
If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.
Page: 1 / 31
Extracted text from philips az 6188 service manual (Ocr-read)
2 - 1
TECHNICAL SPECIFICATIONS
GENERAL
Mains voltage-/01
-/01:120 / 230 V
Mains frequency -
:50 / 60 Hz
Battery
:9 V (R14 x 6)
Power consum
ption
: <35 W
Dimension (W x H
x D) : 400 x 235 x 173mm
Weight
:3 Kg
AMPLIFIER
Output power mains : 2 x 1 W
battery : 2 x 1 W
Speaker impedance : 2 x 8 ohm
Frequency response : 60 Hz - 20 kHz (±3dB)
TUNER - FM SECTION
Tuning range : 87.35 - 108.25 MHz
IF frequency : 10.7 MHz ± 0.2 MHz
Sensitivity : <22 dB at 26dB S/N
Selectivity : >20 dB at 300kHz
IF rejection : >50 dB
Image rejection : >20 dB
TUNER - AM SECTION
Tuning range : 512 - 1635 kHz
IF frequency : 468 kHz ± 3 kHz
Sensitivity(nom.) :
:1500 µV/m at 26dB S/N
Selectivity(nom.) 20 dB
IF rejection(nom.) : 70 dB
Image rejection(nom.) : 32 dB
CASSETTE RECORDER
Number of tracks : stereo
Tape speed : 4.76 cm/sec
Wow & flutter : < 0.35% JIS WTD
Fast wind/rewind C60 : <130 sec.
Frequency response P/B : 125 - 8000 Hz
S/N ratio : 36 dB
COMPACT DISC
S/N ratio : 60 dB typ.
Channel difference 1 kHz : 2 dB lim.
Channel crosstalk 1 kHz : 45 dB typ.
THD 1 kHz : <1.5 %
SERVICE TOOLS
Audio signal disc SBC 429.......................................................................4822 397 30184
Playability test disc SBC 444...................................................................4822 397 30245
Test disc 5(disc without errors ) +
Test disc 5A(disc with dropout errors, black spots and fingerprints)
SBC 426/426A.....................................................................4822 397 30096
Burn in test disc (65 min. 1kHz signal at -30 dB level without pause)
.....4822 397 30155
anti-static table mat
large 1200x650x1.25mm 4822 466 10953
small 600x650x1.25m 4822 466 10958
anti-static wristband4822 395 10223
connection box (3 press stud connections, 1M-„¦ ) 4822 320 11307
extendible cable (2m, 2M-„¦ , to connect wristband to connection box) 4822 320 11305
connecting cable (3m, 2M-„¦ , to connect table mat to connection box) 4822 320 11306
earth cable (1M-„¦ , to connect any product to mat or to connection box) 4822 320 11308
KIT ESD3 (combining all 6 prior products - small table mat) 4822 310 10671
wristband tester4822 344 13999
AVAILABLE ESD PROTECTION EQUIPMENT
