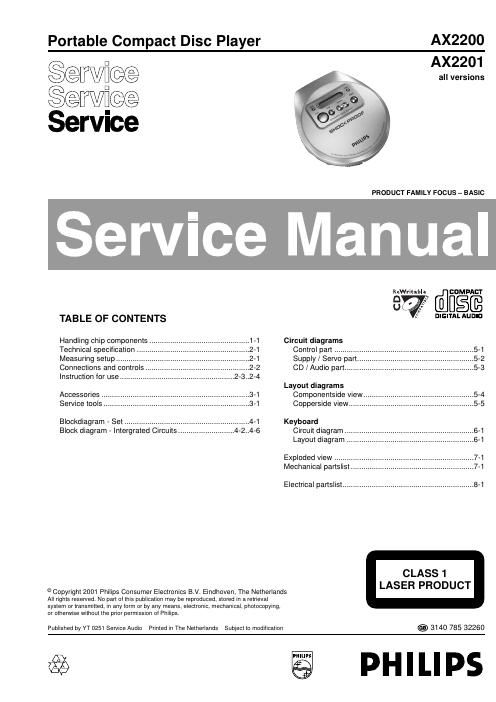

Extracted text from philips ax 2200 service manual (Ocr-read)
1-2
TECHNICAL SPECIFICATION
General
Dimensions (WxHxD) : 128x31x141 mm
Weight without batteries : 205 g
Power supply modes
DC-in socket : 2.5 - 6.0V
Primary batteries (2xLR6) : 1.8 - 3.6V
Rechargable batteries : 1.8 - 3.6V
Battery lifetime
Battery level detection
Battery empty : 1.9V nom. +100/-100 mV
Current consumption CDDA-playback
Shock resistance
+X/-X direction :-‰¥5 g
+Y/-Y direction :-‰¥5 g
+Z/-Z direction :-‰¥up to 10 g
Headphone out (measured with 16-„¦load, DBB/ESP off)
Output power (THD=10%) : 2x4.5mW (+1/-3dB)
Frequency response (1mW) : 100Hz-20kHz within 6dB
S/N ratio (unwght) :-‰¥78dB (81dB typ.)
S/N ratio (A-wght) :-‰¥82dB (84dB typ.)
THD+N (1kHz, 1mW) :-‰¤1% (0.2% typ.)
Channel crosstalk (1kHz, no load) :-‰¤33dB (33dB typ.)
Channel unbalance (-40dB) :-‰¤4dB
Volume attenuation (1kHz) :-‰¥60dB
Dynamic Bass Boost DBB
Laser
Output power : <5mW (3mW typ.)
Wavelength : 780nm
Measurement setup
Use Audio Signal disc SBC429 4822 397 30184
Low pass filter DUT S/N and distortion meter L
R
i.e. Sennheiser UPM550
with FF-filter
Level meter
i.e. Sound Technology ST1700B i.e. 4822 395 3020422kHz
13th order
E G A T S B B D e s n o p s e r y c n e u q e r F
z H k 3 6 z H k 1 z H k 0 1
DBB Bd 5 +±B d 2Bd 0±B d 2Bd 0±B d 2
E D O M N O I T A R E P O ) V 5 . 4 ( Y L P P U S N I - C D ) V 5 2 . 2 ( Y L P P U S . T T A B
e d o m - y a l P.p y t A m 0 130
e d o m - p m u J.p y t A m 160. p y t A m 0 160
. p y t A m 200
y b - d n a t S
n.a. n.a.
E P Y T Y R E T T A B
-‰¥h 4
) . p y t h 6 (
-‰¥h 14
) . p y t h 18 ( Normal Carbon
batteries 2 x R6
Normal Alkalite
batteries 2 x LR6
