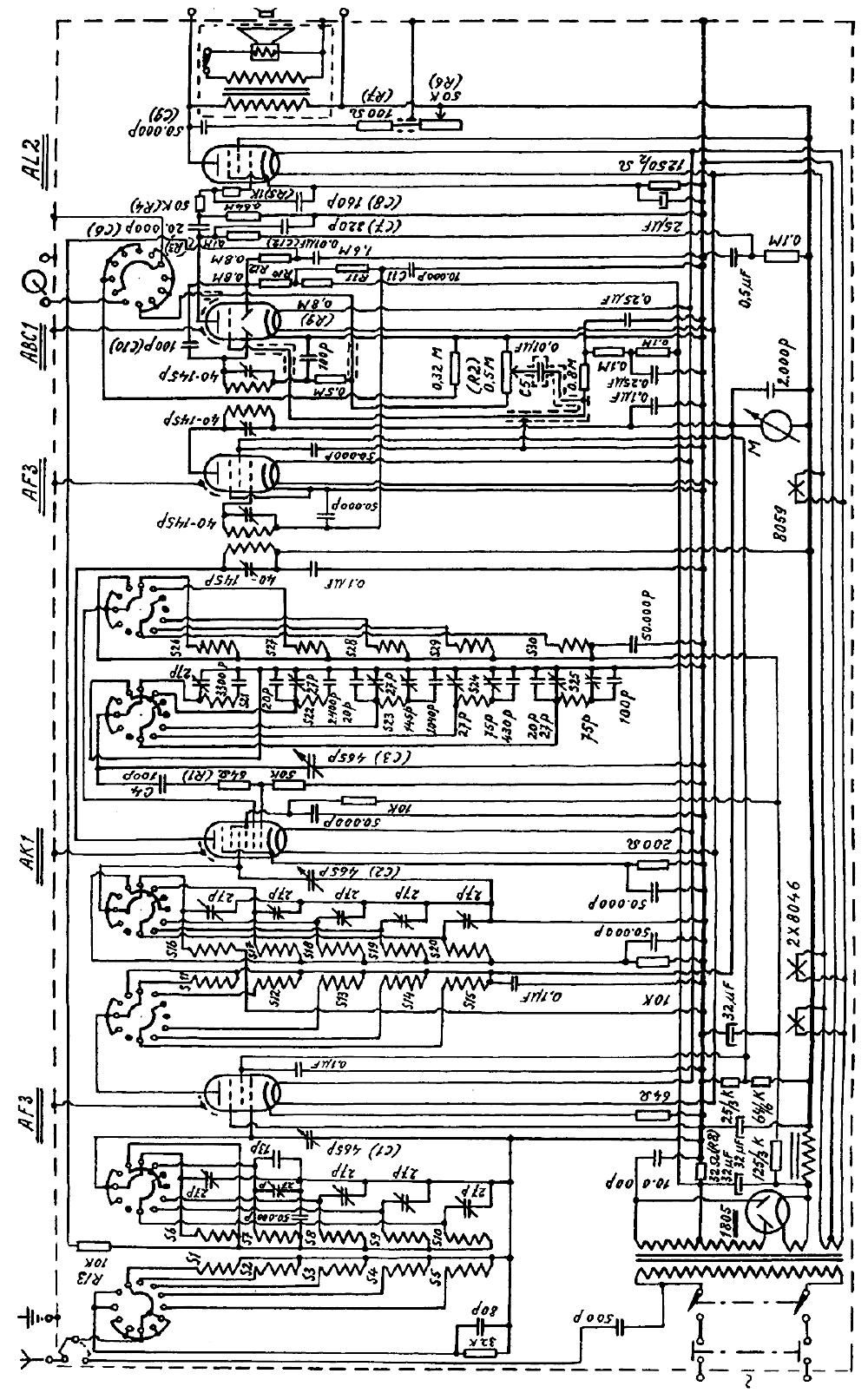

Philips 335 a schematic

This is the 2 pages manual for philips 335 a schematic.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 2
left right
philips 335 a schematic

Extracted text from philips 335 a schematic (Ocr-read)

Page 2

Spannings- en stroomtabel

anodespanning
anodestroom
schcrmroosterspanning
schermroosterstroom
negatieve roosterspanning

1e AF3 AKl 2e AF3 ABCl AL2
252 253 261 88 233 v
7,85 2,2 1,5 0,9 32 mA
102 78 103 - 242 v
2,65 3,2 2,4 - 2,7 mA
3,3 2 3,3 g1/d2 5,2 22 V
