Phase Linear 3000 Series Two Service Manual
This is the 39 pages manual for Phase Linear 3000 Series Two Service Manual.
Read or download the pdf for free.
If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.
Extracted text from Phase Linear 3000 Series Two Service Manual (Ocr-read)

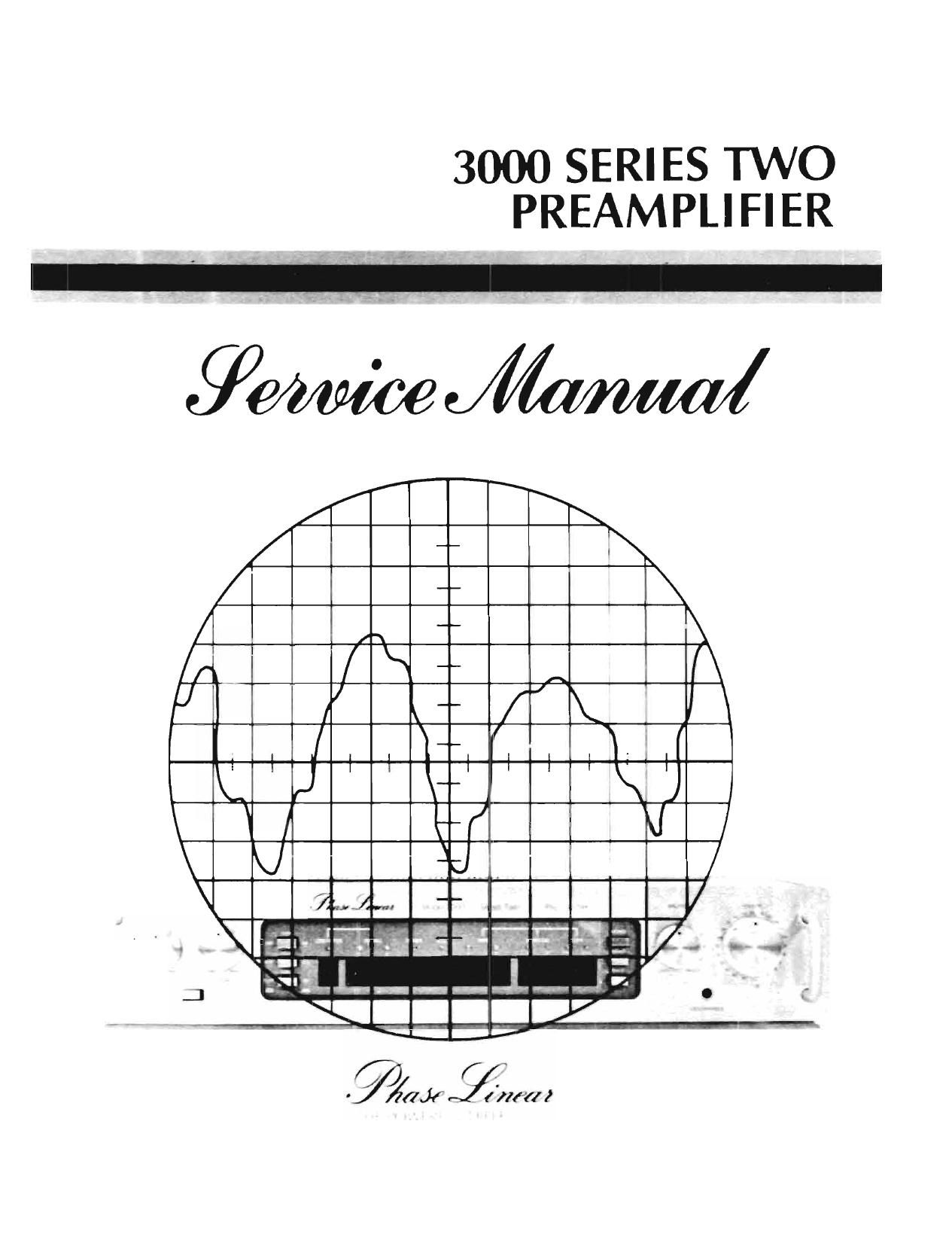

Page 1
3000 SERIES TWO
PREAMPLI FIER
/ \
-l-*
flail 57(5)!!!
Page 2
3000 SERIES TWO PREAMPLIFIER
SERVICE MANUAL
CONTENTS
l-O. Specifications ....................... . ...... 3
2-0. Schematics and Diagrams ..................... 5
3-0. Circuit Descriptions ............. . .......... 14
4-0. Disassembly Procedure ....................... 17
5-0. Test Procedure .............................. 20
6-0. Troubleshooting Guide .................. .....23
7-0. Parts List .................................. 32
8-0. Service Bulletins and Supplements .. ......... 33
***********k********** CAUTION ***********************
THIS MANUAL IS INTENDED FOR USE ONLY BY QUALIFIED SERVICE
PERSONNEL. HAZARDOUS VOLTAGES MAY BE ENCOUNTERED IN THE
SERVICING OF THE 3000 SERIES TWO PREAMPLIFIER. USE
EXTREME CAUTION: READ ALL INSTRUCTIONS CAREFULLY.
Page 4
l-l.2.
LOW FILTER CHARACTERISTICS: 3-pole Butterworth with -leB/
octave (-60dB/decade) slope.
Corner Frequency: 15Hz
Attenuation: 20Hz - 0.5dB
lSHz - 3.0dB
4H2 - 35dB
HEADPHONE AMPLIFIER:
Power Output: 200mw into 8 ohms with less
than 0.07% THD from 20Hz-20K Hz,
both channels driven.
Signal-to-Noise: greater than 90dB re ZOOmW output.
General
POWER REQUIREMENTS: 120V 60Hz (USA & Canadian models) or
100-120/220-240V AC, 50/60Hz.
POWER CONSUMPTION: 8 Watts (70mA)
AC OUTLETS: 2 unswitched, 600 watts maximum; 4 switched,
600 watts max.
DIMENSIONS: 19"w X 3%"h X 8"d (48.3cm X 9cm X 20.3cm)
WEIGHT: lOlbs. (4.5kg)
SEMICONDUCTOR COMPLEMENT: 16 Integrated Circuits, 22 Transistors,
37 Diodes, and 11 L.E.D.'s.
