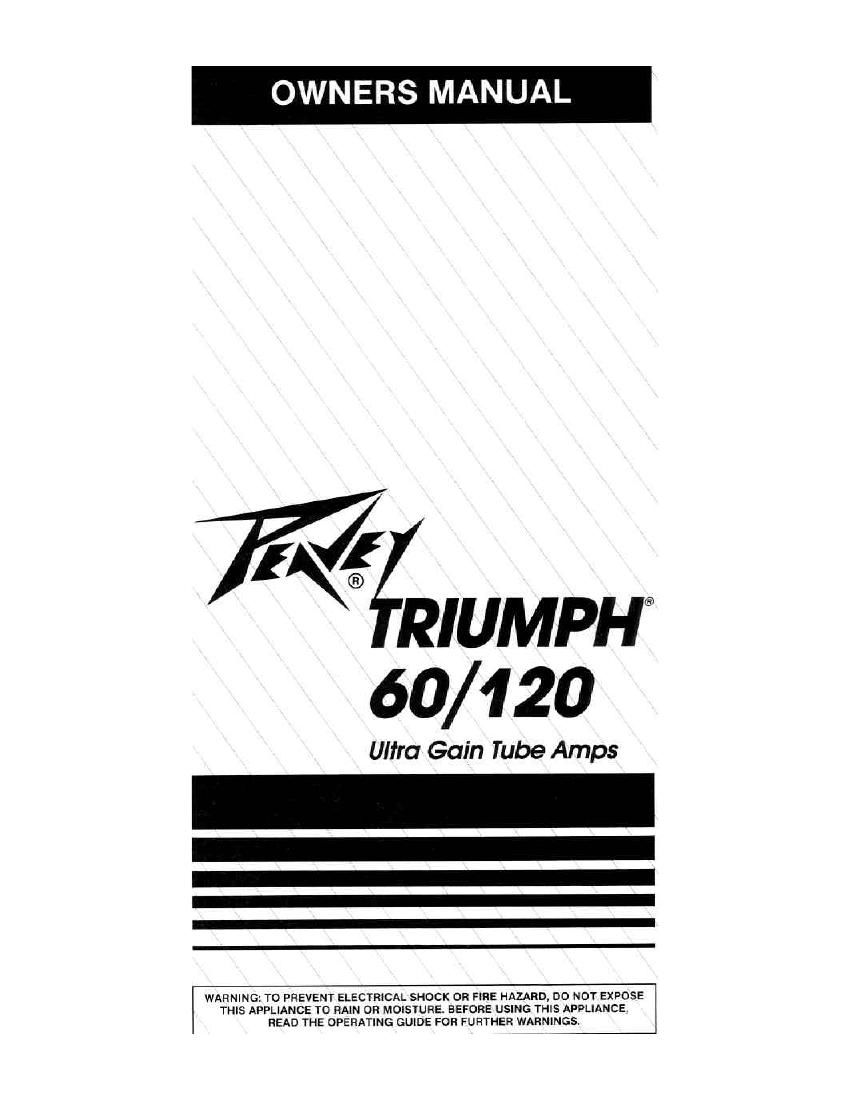

OWNERS MANUAL
I\{{
RIUMPH
60/ 1 20
Ultra Gain Tube Amps
WARNING: TO PREVENT ELECTRICAL SHOCK 0R FIRE HAZARD, DO NOT EXPOSE
THIS APPLIANCE TO RAIN OR MOISTURE BEFORE USING THIS APPLIANCE.
READ THE OPERATING GUIDE FOR FURTHER WARNINGS.
Page 2
_ , , w. a. 306:
uuw: GAIN :nuucn saw :12me g-eouuza iD:-|E vesrrs Lu an». 1an my m
x 5 z a 5 a A 5 a I u . 5 s
a 1 a 7 z 1 1 r a r 30 2 I
a a 2 I :3 a u n z a : ©aa@u irlumph' 60H
» q t n . t n g s I on t I a
n W :1 I0 n w n ID a in o m n u) n m
cat nes um gr um msmz wanna EL ammo w
3 4 5 G 1 U 9 9 9 1D 11 12 Q 14 15
mm: ovens: cwuncnsnw CLEANGAIN :-muAI TATICIM-y MASTER uum'flfité: mu m can
. a n l i u . 5 s . = G . 3 u '
a , 3 v 3 7 E: 1 r 7- - _
a u a II a n e a e a e (lump/l 120 .
v a 1 a l a Cl - re -
m n m n m a m 11 ~21 a n 4n n m u m n 1.
5.». at any mi mm mm ,5." mo may move a,"Li WW.
1 2 3 4 5 6 7 B 9 9 9 10 11 12 13
HIGH GAIN INPUT (1)
Used tor most electric guitars. It is 6 dB louder than the Low Gain Input.
Low GAIN INPUT (2)
Provided for instruments that have extremely high outputs. which can result in overdriving (distorting) the High Gain input.
It both inputs are used simultaneously. the output levels are the same (both are Low Gain).
PRE GAIN (3)
Controls the input volume level of the channel.
POST GAIN (4)
Controls the overall volume level ol the channel. The linal level adjustment should be made after the desired sound has
been achieved.
PRE GAIN (5)
Controls the input volume level of the channel.
POST GAIN (6)
Controls the overall volume level of the channel. The final level adjustment should be made aiter the desired sound has
been achieved.
GAIN (7)
Controls the channel volume.
BRIGHT SWITCH (8)
Provides a preset boost to treble frequencies. To activate, depress the switch to Its '1n' position. The bright iunction
atiects only the normal channel.
Low, MID, 8: HIGH E0 (9)
Passive tone controls that regulate the low. mid and high lrequencies. respectively.
PRESENCE (10)
An active tone control that boosts the extreme high irequenoies by 6 dB.
MASTER REVERE (11)
Reverberation is an echo eflect. Rotate clockwise to increase the eltect. Remote footswitch can control On/Oll.
STATUS LED (12)
Illuminates when amp is switched to standby indicating amplifier is not operational.
POWER LED (13)
Illuminates when AC power is being supplied to the amp.
STANDBY SWITCH (14)
Allows amp to be placed in standby or active mode. in standby mode the tubes remain hot, but the amplifier is not
operational.
POWER SWITCH (15)
Depress the switch to the On" position. The red pilot light (LED) will illuminate indicating power is being suppfied to the
unit.
