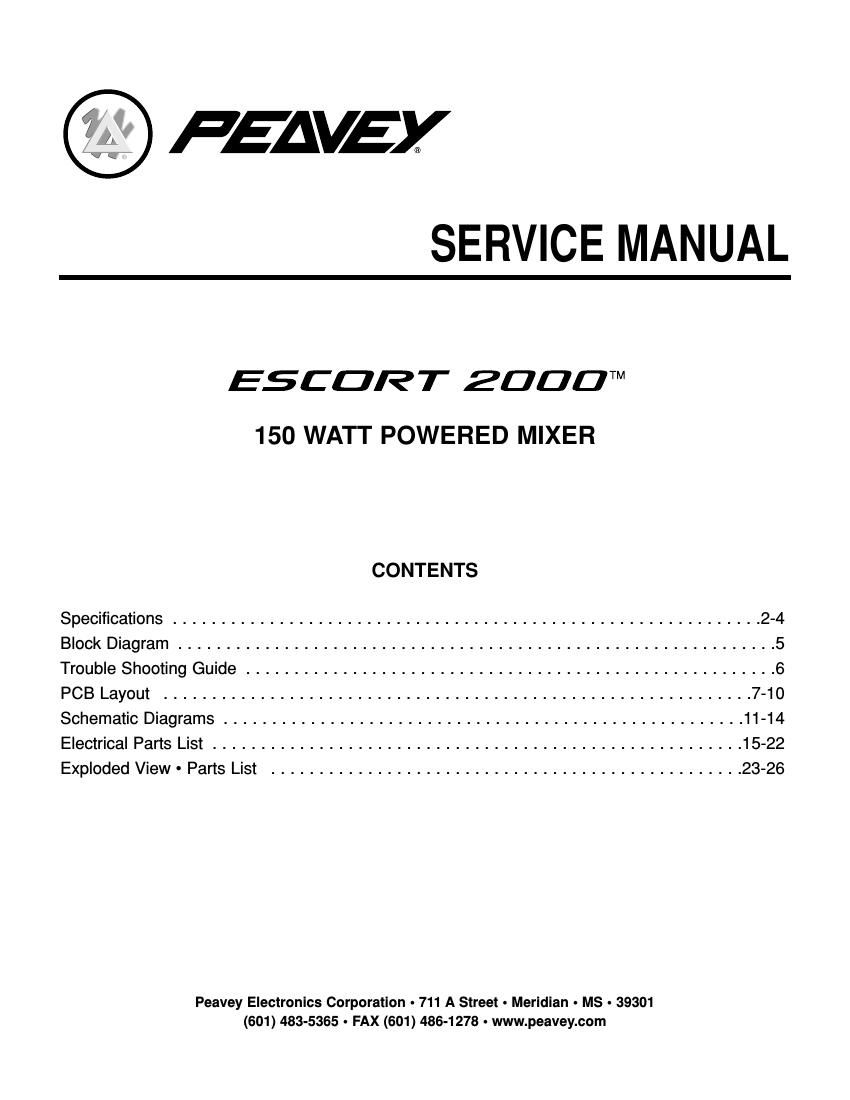

. FEAVEX
SERVICE MANUAL
ESCORT 2000
150 WATT POWERED MIXER
CONTENTS
Specifications ............................................................. 24
Block Diagram .............................................................. 5
Trouble Shooting Guide ....................................................... 6
PCB Layout ............................................................. 7-10
Schematic Diagrams ...................................................... 11-14
Electrical Parts List ....................................................... 15-22
Exploded View . Parts List ................................................. 23-26
Peavey Electronics Corporation - 711 A Street - Meridian - MS - 39301
(601) 483-5365 - FAX (601) 486-1278 - www.peavey.com
ESCORT 2000
SPECIFICATIONS
Test condition:
A/C Input Voltage @ 115V or 230V
All Bass, Treble, and FLS are set to center unless specified.
All Reverb are set to minimum counter-clockwise.
Master volume L & R set to maximum
Channel 5 is set to stereo mode.
Typical LIMIT UNIT
Output Power 75 70 W
(1kHz, 1%) Ch. 5 In
Distortion @ 70W 0.5 0.8 °/o
Ch. 5 In w/LPF 30K Filter
DDT LINE Input = 750 mV 70 80 W
RCA Distortion 1 <2.5 °/o
Input Input = 1400mV 70 85 W
Distortion 2 <3.5 °/o
S/N @ 75W 1KHz 85 68 dB
(A-WTD) Microphone Input open
FLS Freq Range +/-10% +8/-13 +/-2 dB
RCA 100 Hz
Input 350 Hz
@ 1V 1 KHz
Output 3 KHz
8 KHz
Gain +/-3 dB
MIC Channel 1 (bal) 82
Input Channel 2 (bal) 82
1mV Channel 3 (bal) 82
Channel 4 (bal) 82
10mV Channel 5 (RCA In) 38
Tone Control +/-10 +/-2.5 dB
Bass (100Hz) CCW/CW
LINE Channel 1
Input Channel 2
10mV Channel 3
Channel 4 ( L.ch In )
(10mV) Channel 5 ( RCA In ) +6/-10 +/-2.5 dB
Treble Control +/-1 0 +/-2.5 dB
Treble (1 OKHz) CCW/CW
LINE Channel 1
