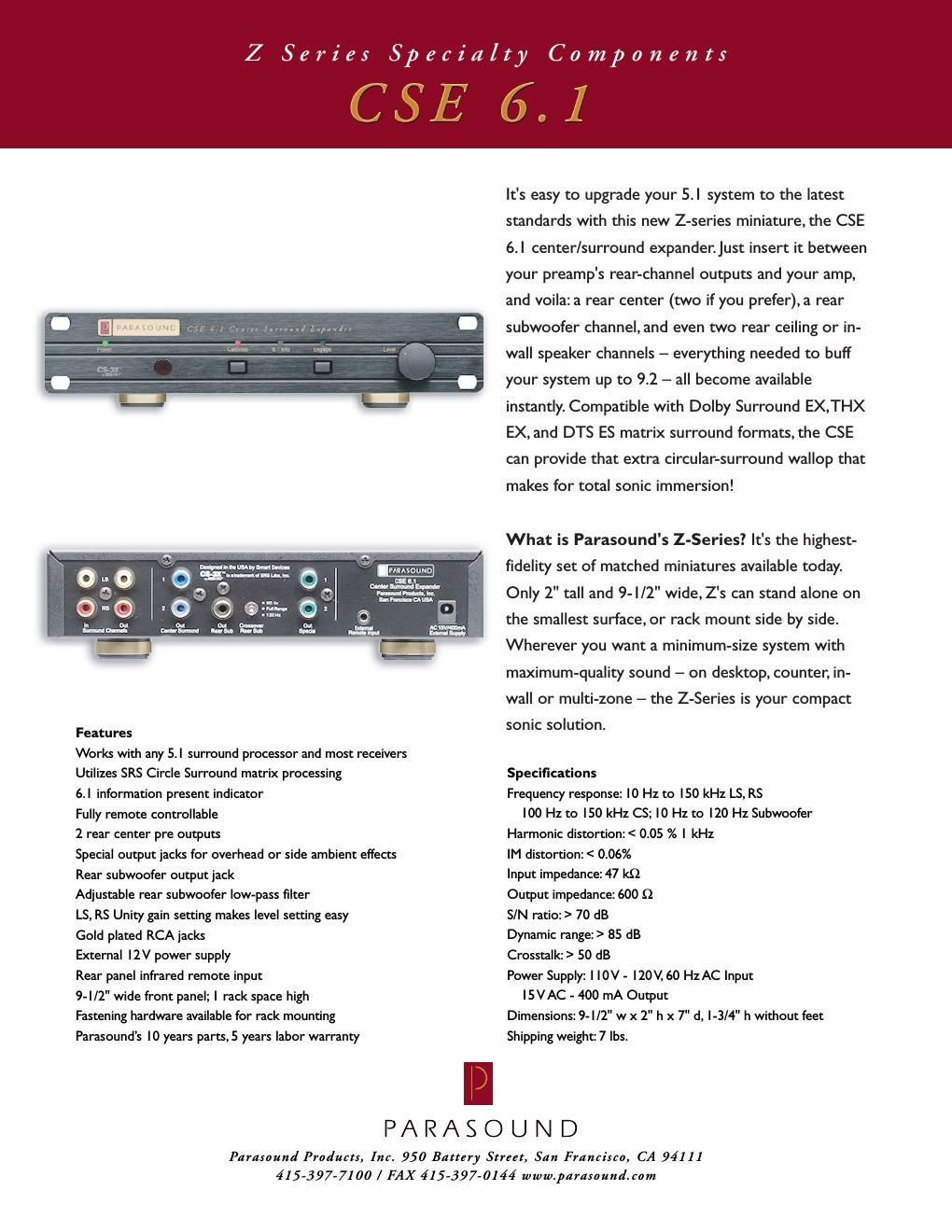

Z Series Specialty Components
Featu res
Works with any 5.| surround processor and most receivers
Utilizes SRS Circle Surround matrix processing
6.| information present indicator
Fully remote controllable
2 rear center pre outputs
Special output jacks for overhead or side ambient effects
Rear subwoofer output jack
Adjustable rear subwoofer low-pass filter
LS, RS Unity gain setting makes level setting easy
Gold plated RCA jacks
External IZV power supply
Rear panel infrared remote input
9-I/2" wide front panel; l rack space high
Fastening hardware available for rack mounting
Parasound's IO years parts, 5 years labor warranty
It's easy to upgrade your 5.| system to the latest
standards with this new Z-series miniature,the CSE
6.| center/surround expandenjust insert it between
your preamp's rear-channel outputs and your amp,
and voila: a rear center (two if you prefer),a rear
subwoofer channel,and even two rear ceiling or in-
wall speaker channels - everything needed to buff
your system up to 9.2 - all become available
instantly. Compatible with Dolby Surround EX,THX
EX, and DTS ES matrix surround formats,the CSE
can provide that extra circular-surround wallop that
makes for total sonic immersion!
What is Parasound's Z-Series? It's the highest-
fidelity set of matched miniatures available today.
Only 2" tall and 9-l/2" wide,Z's can stand alone on
the smallest surface, or rack mount side by side.
Wherever you want a minimum-size system with
maximum-quality sound - on desktop. counter, in-
wall or multi-zone - the Z-Series is your compact
sonic solution.
Specifications
Frequency response: IO Hz to ISO kHz LS, RS
|00 Hz to ISO kHz CS; |0 Hz to |20 Hz Subwoofer
Harmonic distortion:< 0.05 % I kHz
IM distortion: < 0.06%
Input impedance: 47 k9
Output impedance: 600 Q
S/N ratio: > 70 dB
Dynamic range: > 85 dB
Crosstalk: > 50 dB
Power Supply: I |0V - |20V,60 HzAC Input
|5VAC - 400 mA Output
Dimensions: 9-I/2" w x 2" h x 7" d, l-3/4" h without feet
Shipping weight: 7 lbs.
PARASOUND
Parasaund Products, Inc. 950 Battery Street, San Franciscu, CA 94111
415-397-7100 / FAX 415-397-0144 wwwparawundwam
