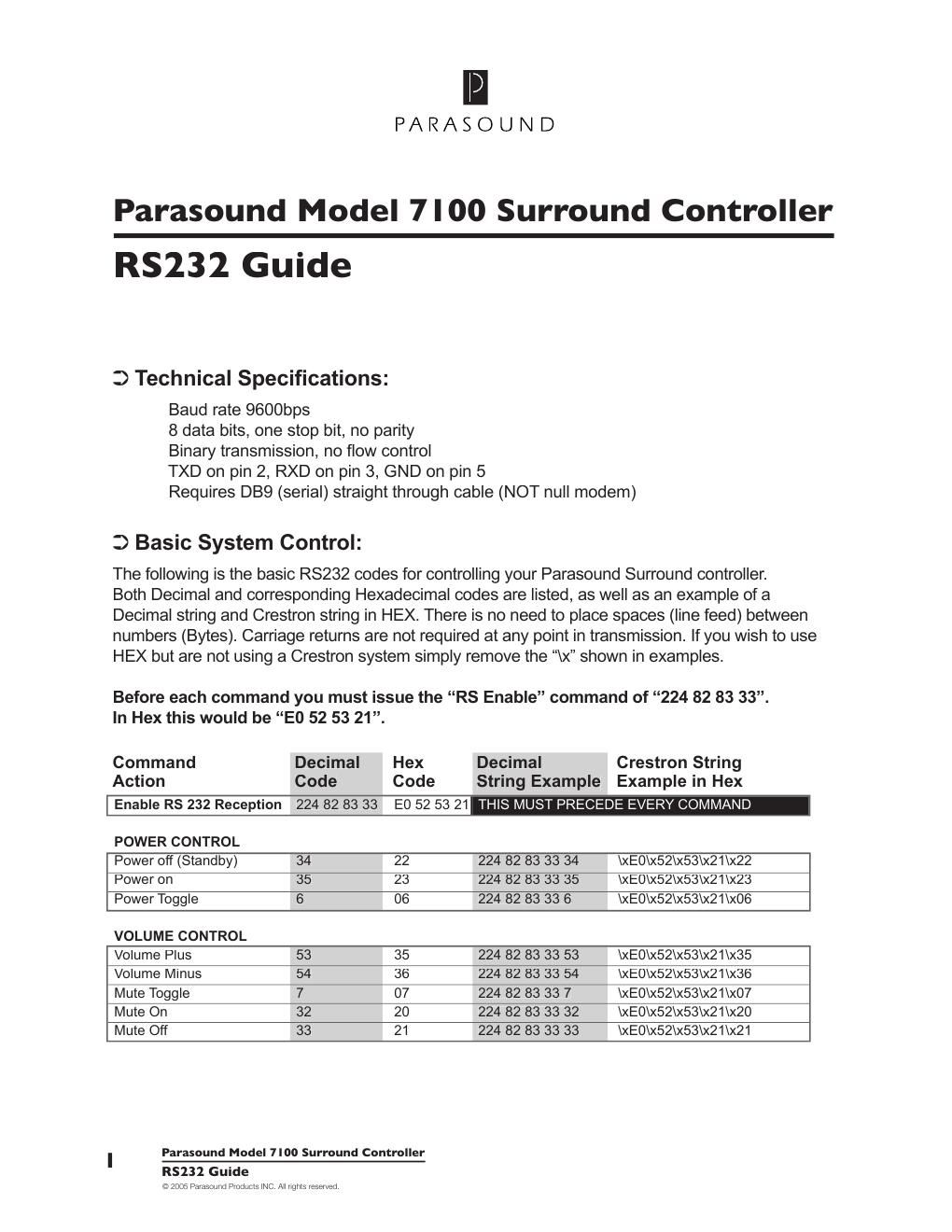

Page 1
Command Decimal Hex Decimal Crestron String
Action Code Code String Example Example in Hex
SOURCE SELECTION
Source Plus 8 08 224 82 83 33 8 \xE0\x52\x53\x21\x08
Source Minus 9 09 224 82 83 33 9 \xE0\x52\x53\x21\x09
Source DVD 13 0D 224 82 83 33 13 \xE0\x52\x53\x21\x0D
Source SAT 14 0E 224 82 83 33 14 \xE0\x52\x53\x21\x0E
Source VCR 15 0F 224 82 83 33 15 \xE0\x52\x53\x21\x0F
Source IN4 16 10 224 82 83 33 16 \xE0\x52\x53\x21\x10
Source IN5 17 11 224 82 83 33 17 \xE0\x52\x53\x21\x11
Source IN6 18 12 224 82 83 33 18 \xE0\x52\x53\x21\x12
Source IN7 19 13 224 82 83 33 19 \xE0\x52\x53\x21\x13
Source IN8 20 14 224 82 83 33 20 \xE0\x52\x53\x21\x14
Source IN9 72 48 224 82 83 33 72 \xE0\x52\x53\x21\x48
Source IN10 73 49 224 82 83 33 73 \xE0\x52\x53\x21\x49
Source Analog 7.1 100 64 224 82 83 33 100 \xE0\x52\x53\x21\x64
Source Analog 7.1 Toggle 136 88 224 82 83 33 136 \xE0\x52\x53\x21\x88
Active Source Auto Search 144 90 224 82 83 33 144 \xE0\x52\x53\x21\x90
SURROUND MODE SELECTION
Surround Mode Minus 10 0A 224 82 83 33 10 \xE0\x52\x53\x21\x0A
Surround Mode Plus 11 0B 224 82 83 33 11 \xE0\x52\x53\x21\x0B
Mono 42 2A 224 82 83 33 42 \xE0\x52\x53\x21\x2A
Stereo*(see note below) 43 2B 224 82 83 33 43 \xE0\x52\x53\x21\x2B
Prologic 44 2C 224 82 83 33 44 \xE0\x52\x53\x21\x2C
Natural 45 2D 224 82 83 33 45 \xE0\x52\x53\x21\x2D
Party 46 2E 224 82 83 33 46 \xE0\x52\x53\x21\x2E
Club 47 2F 224 82 83 33 47 \xE0\x52\x53\x21\x2F
Concert 48 30 224 82 83 33 48 \xE0\x52\x53\x21\x30
Prologic II or IIx Movie 160 A0 224 82 83 33 160 \xE0\x52\x53\x21\xA0
Prologic II or IIx Music 161 A1 224 82 83 33 161 \xE0\x52\x53\x21\xA1
DTS Neo6 Cinema 162 A2 224 82 83 33 162 \xE0\x52\x53\x21\xA2
DTSES Matrix 163 A3 224 82 83 33 163 \xE0\x52\x53\x21\xA3
Direct 164 A4 224 82 83 33 164 \xE0\x52\x53\x21\xA4
DTS NEO6 Music 167 A7 224 82 83 33 167 \xE0\x52\x53\x21\xA7
Dolby EX 168 A8 224 82 83 33 168 \xE0\x52\x53\x21\xA8
Stereo 96 169 A9 224 82 83 33 169 \xE0\x52\x53\x21\xA9
Late Night ON (DYN) 37 25 224 82 83 33 37 \xE0\x52\x53\x21\x25
Late Night Off (DYN) 38 26 224 82 83 33 38 \xE0\x52\x53\x21\x26
Late Night Toggle (DYN) 12 0C 224 82 83 33 12 \xE0\x52\x53\x21\x0C
Cinema EQ Toggle 99 63 224 82 83 33 99 \xE0\x52\x53\x21\x63
THX Toggle 27 1B 224 82 83 33 27 \xE0\x52\x53\x21\x1B
* Please note that for a more universal stereo command, we recommend using a 2 step macro.
First issue the command for direct (164), then the command for stereo (43).
This Macro ensures that the surround mode will always go to stereo regardles of input type.
A Crestron string in Hex would look like this \xE0\x52\x53\x21\xA4\xE0\x52\x53\x21\x2B
Continued
Basic System Control (continued): 2 Parasound Model 7100 Surround Controller
RS232 Guide© 2005 Parasound Products INC. All rights reserved.
Page 2
Basic System Control (continued):
Command Decimal Hex Decimal Crestron String
Action Code Code String Example Example in Hex
TONE AND SPEAKER TRIM CONTROL
Bass Plus 68 44 224 82 83 33 68 \xE0\x52\x53\x21\x44
Bass Minus 69 45 224 82 83 33 69 \xE0\x52\x53\x21\x45
Treble Plus 70 46 224 82 83 33 70 \xE0\x52\x53\x21\x46
Treble Minus 71 47 224 82 83 33 71 \xE0\x52\x53\x21\x47
Subwoofer Plus 97 61 224 82 83 33 97 \xE0\x52\x53\x21\x61
Subwoofer Minus 98 62 224 82 83 33 98 \xE0\x52\x53\x21\x62
Surround Plus 131 83 224 82 83 33 131 \xE0\x52\x53\x21\x83
Surround Minus 132 84 224 82 83 33 132 \xE0\x52\x53\x21\x84
Center Plus 129 81 224 82 83 33 129 \xE0\x52\x53\x21\x81
Center Minus 130 82 224 82 83 33 130 \xE0\x52\x53\x21\x82
Preset 1 124 7C 224 82 83 33 124 \xE0\x52\x53\x21\x7C
Preset 2 125 7D 224 82 83 33 125 \xE0\x52\x53\x21\x7D
Preset 3 126 7E 224 82 83 33 126 \xE0\x52\x53\x21\x7E
Preset 4 127 7F 224 82 83 33 127 \xE0\x52\x53\x21\x7F
Preset 5 128 80 224 82 83 33 128 \xE0\x52\x53\x21\x80
Enhanced Bass On 156 9C 224 82 83 33 156 \xE0\x52\x53\x21\x9C
Enhanced Bass Off 157 9D 224 82 83 33 157 \xE0\x52\x53\x21\x9D
Enhanced Bass Toggle 133 85 224 82 83 33 133 \xE0\x52\x53\x21\x85
ZONE CONTROL
Zone Off 4 04 224 82 83 33 4 \xE0\x52\x53\x21\x04
Zone On 5 05 224 82 83 33 5 \xE0\x52\x53\x21\x05
Zone On/Off Toggle 134 86 224 82 83 33 134 \xE0\x52\x53\x21\x86
Zone Volume Plus 139 8B 224 82 83 33 139 \xE0\x52\x53\x21\x8B
Zone Volume Minus 140 8C 224 82 83 33 140 \xE0\x52\x53\x21\x8C
Zone Mute On 158 9E 224 82 83 33 158 \xE0\x52\x53\x21\x9E
Zone Mute Off 159 9F 224 82 83 33 159 \xE0\x52\x53\x21\x9F
Zone Mute Toggle 165 A5 224 82 83 33 165 \xE0\x52\x53\x21\xA5
Show Zone Status 166 A6 224 82 83 33 166 \xE0\x52\x53\x21\xA6
Zone Source minus 135 87 224 82 83 33 135 \xE0\x52\x53\x21\x87
Zone Source Plus 141 8D 224 82 83 33 141 \xE0\x52\x53\x21\x8D
Zone Source DVD 74 4A 224 82 83 33 74 \xE0\x52\x53\x21\x4A
Zone Source SAT 75 4B 224 82 83 33 75 \xE0\x52\x53\x21\x4B
Zone Source VCR 76 4C 224 82 83 33 76 \xE0\x52\x53\x21\x4C
Zone Source IN4 77 4D 224 82 83 33 77 \xE0\x52\x53\x21\x4D
Zone Source IN5 78 4E 224 82 83 33 78 \xE0\x52\x53\x21\x4E
Zone Source IN6 79 4F 224 82 83 33 79 \xE0\x52\x53\x21\x4F
TAPE RECORD CONTROL
Tape Monitor Sticky Toggle 26 1A 224 82 83 33 26 \xE0\x52\x53\x21\x1A
Tape Mon. Non-Sticky Toggle 31 1F 224 82 83 33 31 \xE0\x52\x53\x21\x1F
Tape Monitor Off 39 27 224 82 83 33 39 \xE0\x52\x53\x21\x27
Tape Monitor Sticky On 40 28 224 82 83 33 40 \xE0\x52\x53\x21\x28
Tape Monitor Non-Sticky On 41 29 224 82 83 33 41 \xE0\x52\x53\x21\x29
Continued 3 Parasound Model 7100 Surround Controller
RS232 Guide© 2005 Parasound Products INC. All rights reserved.
