1 Accessories 2
2 Location of Controls
3
3 Power Supply Preparations
3
4 Caution for AC mains lead
4
5 Disassembly Instructions
5
5.1. Removal of the rear cabinet, front cabinet and middle
cabinet
5
5.2. Removal of the Sub1 P.C.B., Sub2 P.C.B. and Main
P.C.B.
6
5.3. Removal of the EL
7
6 SERVICE POSITION
8
6.1. Extension cable and P.C.B.
8
6.2. Service Position
8
7 Precautions When Executing The Main PCB Replacement
Service
9
8 Service Mode
9
8.1. Before Entering The Service Mode
9
8.2. Entering The Service Mode
10
8.3. SERVICE 1: EL Display Mode Switching
11
8.4. SERVICE 2: Device Key Serial Number. Display
11
8.5. SERVICE 3: Control Button Operation Check & Remaining
Battery Capacity Display Check
12
8.6. SERVICE 4: Model & Region Display
12
8.7. SERVICE 5: Settings Initialization (all settings)
13
· Stereo earphones................. ................. ................. .... 1pc.
(L0BAB0000192)
· Rechargeablebattery with case......... ................. ..... 1pc.
(EB, EG, GC, GK, GN: RFKFHAZ10EM1)
(PP: RFKFHAZ10PM1)
· AC adaptor...................... ................. ................. ..... 1pc.
(EB, EG, GN: RFA2694)
(GC, GK: RFA2695)
(PP: RFA2693)
· AC mains lead.......... ................. ................. ................. 1 pc.
(EB: RJA0053-3X)
(EG, GC: VJA0664)
(GK: K2CA2CA00020)
(GN: K2CJ2DA00008)
· CD-ROM (SD-JukeboxVer.5.0LE)................. ..........1pc.
Supply of CD-ROM,in accordancewith license protection,
is allowable as replacement parts only for customers who
accidentally damaged or lost their own.
(EB, EG, GN, PP: VFF0268-S)
8.8. SERVICE 6: Settings Readout 13
8.9. SERVICE 7: Default Settings Writing
13
8.10. SERVICE 8: Card Recognition Operation Check
13
8.11. SERVICE 9:Audio Playback Check
14
8.12. SERVICE 10:Voice Playback Check
14
8.13. SERVICE 11: Voice Recording Check
15
8.14. SERVICE 12: FM Recording Check
16
8.15. SERVICE 13: Device Check
17
8.16. Error Code Table
17
9 Type Illustration of ICs, Transistors and Diodes
23
10 Schematic Diagram Notes
23
11 Schematic Diagram
25
12 Printed Circuit Board Diagram
31
13 Block Diagram
33
14 Terminal Function of ICs
35
14.1. IC3 (MNPH930FLDR): Microcomputer
35
15 Caution in use of Rechargeable Battery
36
16 Caution for Rechargeable Battery
36
17 Replacement Parts List
37
18 Cabinet Parts Location
41
19 Packaging
42
19.1. SV-SD100VEB/EG/GC/GK/GN
42
19.2. SV-SD100VPP
43
(GC, GK: VFF0269-S)
· USB Cable........................ ................. ................. ...1pc.
(K1HA08CD0004)
· Neck lanyard..... ................. ................. ................. ........1pc.
(VFC4028)
CONTENTS
Page Page
1 Accessories
2

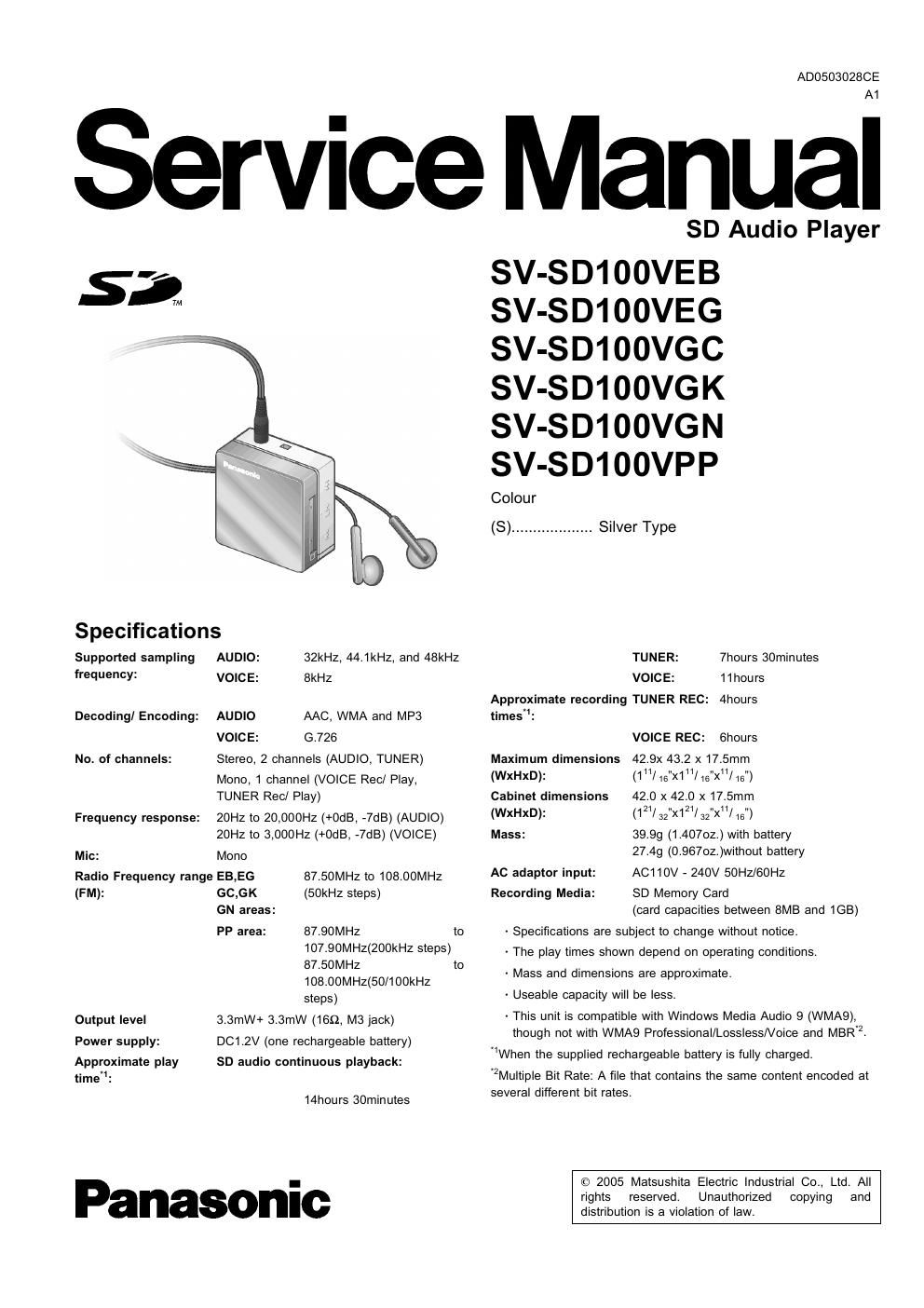

SV-SD100VEB / SV-SD100VEG / SV-SD100VGC / SV-SD100VGK / SV-SD100VGN / SV-SD100VPP
