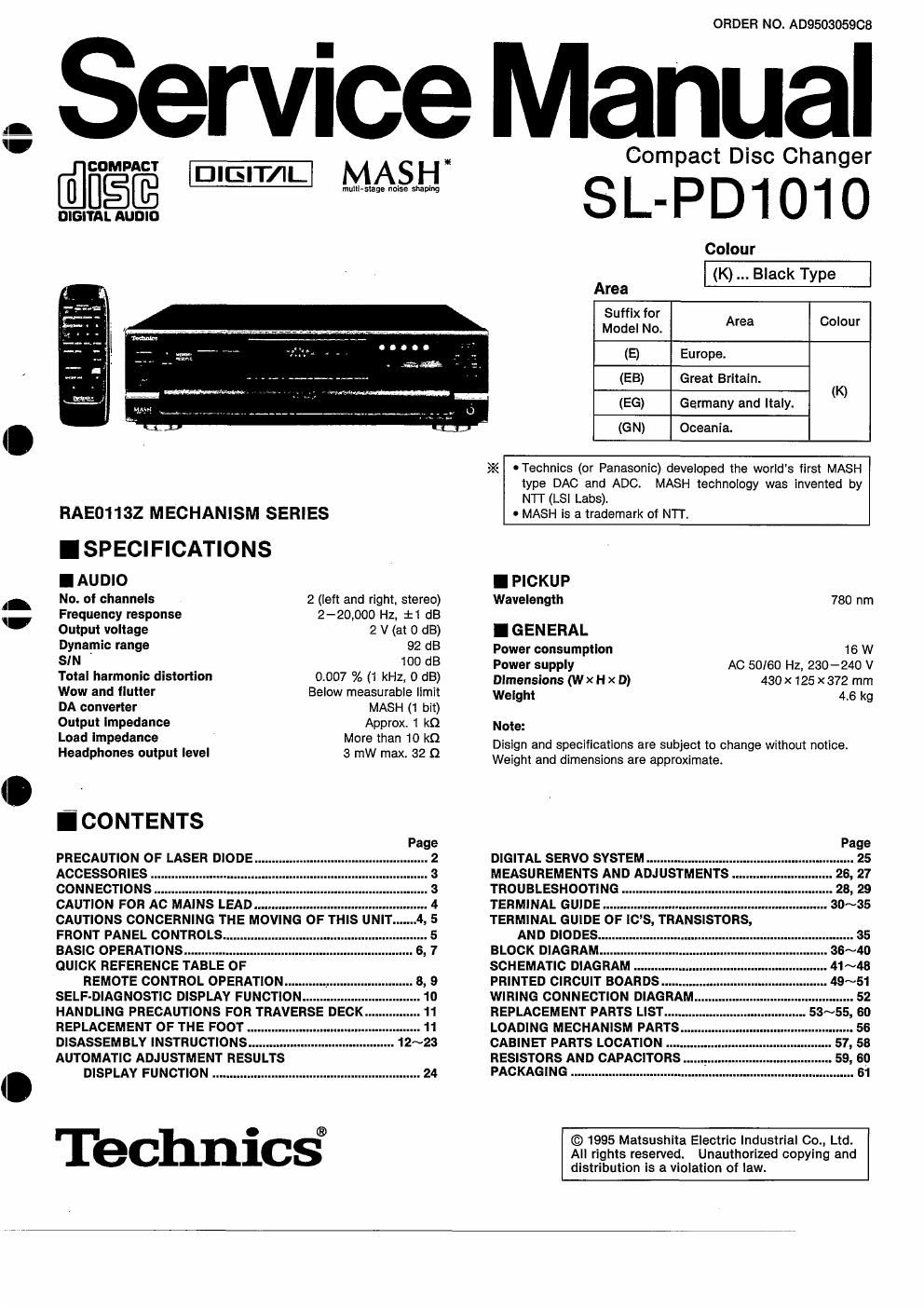

Page 1

A-
"

ORDER NO. A0950305908

ervice Manual

COM PACT

mum-stage noise shaninv

DIGITAL AUDIO

RAEO113Z MECHANISM SERIES

.SPECIFICATIONS

I AUDIO
No. of channels
Frequency response

2 (left and right. stereo)
2-20.000 Hz, :1 dB

Output voltage 2 V (at 0 dB)
Dynamic range 92 dB
SIN 100 dB

Total harmonic distortion
Wow and flutter

DA converter

Output Impedance

Load Impedance
Headphones output level

0.007 % (1 kHz, 0 dB)
Below measurable limit
MASH (1 bit)

Approx. 1 k0

More than 10 kn

3 mW max. 32 Q

iCONTENTS

PRECAUTION OF LASER DIODE.
ACCESSORIES .
CONNECTIONS
CAUTION FOR AC MAINS LEAD.
CAUTIONS CONCERNING THE MOVING OF THIS UNIT..
FRONT PANEL CONTROLS
BASIC OPERATIONS ......
OUICK REFERENCE TABLE OF
REMOTE CONTROL OPERATION...
SELF-DIAGNOSTIC DISPLAY FUNCTION..
HANDLING PRECAUTIONS FOR TRAVERS
REPLACEMENT OF THE FOOT
DISASSEMBLY INSTRUCTIONS...
AUTOMATIC ADJUSTMENT RESULTS
DISPLAY FUNCTION ..

Technics®

MASH

Compact Disc Changer

SL-PD101O

Colour
(K) Black Type

Area
333:): Log Area Colour
(E) Europe.
(EB) Great Britain. (K)
(EG) Germany and Italy.
(GN) Oceania.

c Technics (or Panasonic) developed the world's first MASH
type DAC and ADC. MASH technology was invented by
NTI' (LSi Labs).

' MASH is a trademark of NTi',

I PICKUP

Wavelength 780 nm
I GENERAL

Power consumption 16 W
Power supply AC 50/60 Hz, 230-240 V
Dimensions (W x H x D) 430x 125 x 372 mm
Weight 4.6 kg
Note:

Disign and specifications are subject to change without notice.
Weight and dimensions are approximate.

DIGITAL SERVO SYSTEM
MEASUREMENTS AND ADJUSTMENTS
TROUBLESHOOTING
TERMINAL GUIDE ....
TERMINAL GUIDE 0F ICS, TRANSISTORS,
AND DIODES"
BLOCK DIAGRAM.
SCHEMATIC DIAGRAM
PRINTED CIRCUIT BOARDS ..
WIRING CONNECTION DIAGRAM
REPLACEMENT PARTS LIST .....
LOADING MECHANISM PARTS
CABINET PARTS LOCATION .
RESISTORS AND CAPACITORS
PACKAGING

© 1995 Matsushita Electric Industrial 00., Ltd.
All rights reserved. Unauthorized copying and
distribution is a violation of law.

Page 2

SL-PD1010

A WARNING
This service information is designed for experienced repair technicians only and is not designed for use by the general public. It
does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service
or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.

.PRECAUTION OF LASER DIODE

CAUTION: This product utilizes a laser diode. with the unit turned on", invisible laser radiation is emitted from
the pickup lens.
Wave length: 780nm
Maximum output radiation power from pickup: 100 uW/VDE

Laser radiation from the pickup lens is safety level, but be sure the followings:

Do not disassemble the optical pickup unit, since radiation from exposed laser diode is dangerous.
Do not adjust the variable resistor on the pickup unit. It was already adjusted.

Do not look at the focus lens using optical instruments.

Recommend not to look at pickup lens for a long time.

PWN.

ACHTUNG: Dieses Produkt enthalt eine Laserdiode. lm eingeschalteten Zustand wird unsichtbare Laserstrahlung
von der Lasereinheit abgestrahlt.

Welleniange: 780nm
Maximale Strahlungsleistung der Lasereinheit: 100quVDE

Die Strahlung an der Lasereinheit ist ungefahriich, wenn_folgende Punkte beachtet werden:

Die Lasereinheit nicht zerlegen, da die Strahlung an der freigelegten Laserdiode gefahrlich ist.
Den werkseitig justierten Einstellregler der Lasereinhit nicht verstellen.

Nicht mit optischen lnstrumenten in die Fokusslerlines blicken.

Nicht fiber langere Zeit in die Fokussierlinse blicken.

Peps

ADVARSEL: | dette a apparat anvendes laser.

-Useofcaufionlabd

INVISIBLE LASER RADIATION WHEN OPEN,
DANGER AVOID DIRECT EXPOSURE TO BEAM. anI/

ADVAHSEL USYNLIG LASEHSTRALING VED ABNING NAR SiKKERHEDSAFBRYDERE
ER UDE AF FUNKTIUII UNDGA UDS/ETTELSE FOR STRALING.
VARO' AVATTAESSA JA SUOJALUKITUS OHITETTAESSA OLET ALTTIINA
NAKYMATONTA LASERSATEILVLLE. ALA KATSD SATEESEEN
VARNING OSYNLIG LASERSTRALNING NAH DENNA DEL AR DPPNAD OCH
SPARREN AR URKOPPLAD. BETRAKTA EJ STRALEN

ADVARSEI. USVNLIG LASERSJRALING NAR DEKSEL APNES 05 SIKKERHEDSLAS O
BRYIES. UNNGA EKSIONERING FOR STRALEN.

UNSICHTBARE LASERSTRAHLUNG.WENN ABDECKUNG GEDFFNET.
VORSICHT NICHT DEM STRAHL AUSSEIZEN. ROLSOl04

me if
L-..J

illl

-_J

l"1

CAUTION!

THIS PRODUCT UTILIZES A LASER.

USE OF CONTROLS 0R ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN
THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
