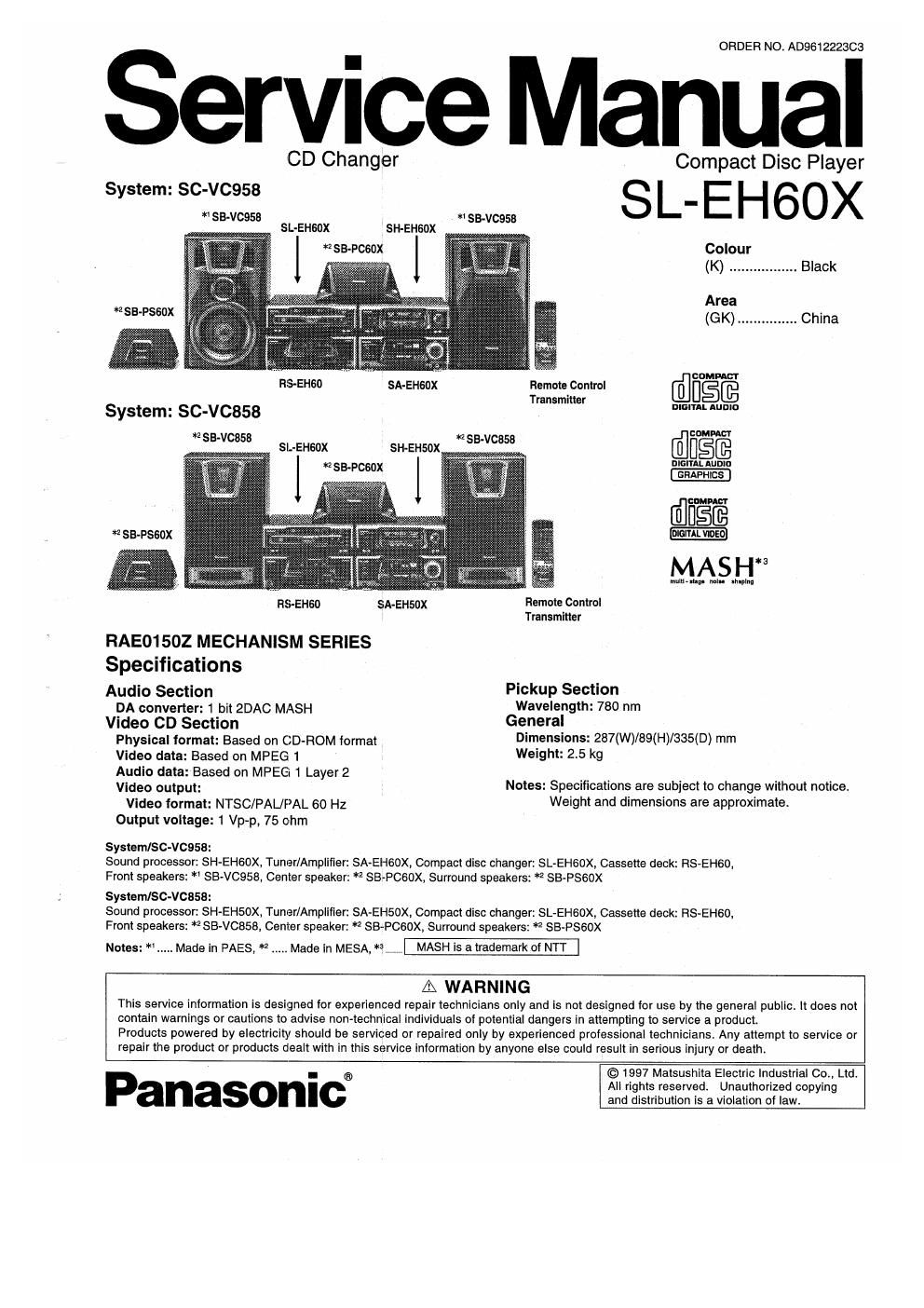

ORDER NO. A0961222303

Service Manual

CD Changer Compact Disc Player

System: SC-VC958 S L_ E H 60X
* SB-VCBSE *' SB-VCQSB

SL-EHBOX SH-EHSOX

*2 SB-PCGOX , Colour
(K) ................. Black
Area
SB-PSGOX . (GK). China
RsFEHGO I SA-EHGDX Remote Control comm
Transmitter
System: SC-VCB58 '"""'°
*2 *2 mung-r
SB-VCBSE SL-EHSOX SH-EHSOX SB-VCBSB
l *2 sEpcsox DIGNALAIJDXD
d TEE
SB-PSGOX DIGI AL mo
MAS H"a
M4... at... Wu.
Rs-EHeo SA-EHSUX Remote Control
Transmitter
RAE01502 MECHANISM SERIES
Specifications
Audio Section Pickup Section
DA converter: 1 bit 2DAC MASH Wavelength: 780 nm
Video CD Section General
Physical format: Based on CD-ROM format DImensrons: 237(W)/39(H)/335(D) mm
Video data: Based on MPEG 1 Weight: 2-5 k9
Audio data: Based on MPEG 1 Layer 2
Video output: Notes: Specifications are subject to change without notice.
Video format: NTsc/PAL/pAL so Hz Weight and dimensions are approximate.

Output voltage: 1 Vp-p, 75 ohm

System/SC-VCQSE:

Sound processor: SH-EHBOX, Tuner/Amplifier: SA-EIHSOX, Compact disc changer: SL-EH60X, Cassette deck: RS-EHGO,
Front speakers: * SB-VCQSB, Center speaker: *2 SB-PCSOX, Surround speakers: *2 SB-PS6OX

System/sc-VCSSB:

Sound processor: SH-EHSOX, Tuner/Amplifier: SA-EHSOX. Compact disc changer: SL-EHSDX, Cassette deck: FlS-EHSO,
Front speakers: *QSB-VCBSB, Center speaker: *2 SB-PCSOX, Surround speakers: *2 SB-PSGOX

Notes: * ..... Made in PAES, *2 Made in MESA, *t... MASH is a trademark 0f NTT
& WARNING

This service information is designed for experienced repair technicians only and is not designed lor use by the general public. it does not
contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.

Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service or
repair the product or products dealt with in this service information by anyone else could result in serious injury or death:

© 1997 Matsushita Electric Industrial Co., Ltd.

I
® All rights reserved. Unauthorized copying
an Ic and distribution is a violation oi law.

Page 2

SL-EH60X

l Contents

Handling Precautions for Traverse Deck.
Precaution of Laser Diode
Location of Controls
How to Set the "Transport Mode"
CD Type Possible to Play on This Un .
Loading and Checking CD5 .........
Playing Audio CDs and Video CDs
(no equipment with the playback control function)
Playlng Video CDs
(with the playback control function)
Operation Checks and
Main Component Replacement Procedures
Error Code Display and Servo Adjustment Function
To Supply Power Source .....

Page

out-mac)»

NOTE:

Page
Schematic Diagram 25 ~ 37
Printed Circuit Board Diagra 38 ~ 41

Type Illustration of lC's, TranSIstors and Diodes
Wiring Connection Diagram .....
Terminal Function of IC's ..
Troubleshooting Guide (Video Circuit
Troubleshooting Guide (CD
Block Diagram.
Replacement Parts ist( Iectncal)
Resistors and Capacitors
Replacement Parts List
(Cabinet, Loading Mechanism)
Cabinet Parts Location
Loading Unit Parts Location.

Refer to the service manual for Model No. SA-EHsox (ORDER No. AD9612217CS) and Model No. SA-EHSOX (ORDER No.
AD961221803) for information on Accessories", Stacking the Components", Connections and Packaging.

CAUTION:
THIS PRODUCT UTILIZES A LASER.

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE
SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE

l Handling Precautions for Traverse Deck

The laser diode in the traverse deck (optical pickup) may break down due to potential difference caused by static electricity of clothes or human body.
So, be careful of electrostatic breakdown during repair of the traverse deck (optical pickup).

0 Handling of traverse deck (optical pickup)

1, Do not subject the traverse deck (optical pickup) to static electricity as it is

extremely sensitive to electrical shock.

2. To protect the laser diode against electrostatic breakdown, short the flexible

board (FFC board) with a clip or similar object.

3 Take care not to apply excessive stress to the flexible board (FFC board).
4. Do not turn the variable resistor (laser power adjustment). It has already been

adjusted.

I Grounding for electrostatic breakdown prevention
1. Human body grounding

Use the and-static wrist strap to discharge the static electricity from your body.

2. Work table grounding

Put a conducive material (sheet) or steel sheet on the area where the traverse

deck (optical pickup) is placed, and ground the sheet.
Caution:

The static electricity of your clothes will not be grounded through the wrist strap.
So, take care not to let your clothes touch the traverse deck (optical pickup).

Caution when Replacing the Traverse Deck:

FFC board Lens (Do not touch)

i(Handle it carefully)

Variable resistor
(Do not turn)

Wrist strap
(Anti-static bracelet) /

The traverse deck has a short point shorted with solder to protect the laser diode against electrostatic breakdown. Be sure to remove the solder from

the short point before making connections.

I Precaution of Laser Diode

CAUTION:
Wave length: 780 nm

This product utilizes a laser diode with the unit turned on", invisible laser radiation is emitted from the pick up lens.

Maximum output radiation power from pick up: 100 MWNDE
Laser radiation from the pick up unit is safety level, but be sure the followings:

1. Do not disassemble the pick up unit, since radiation from exposed laser diodeiis dangerous.
2. Do not adjust the variable resistor on the pick up unit. it was already adjusted.

3. Do not look at the focus lens usingioptical instruments.

4. Recommend not to look at pick up lens for a long time.
