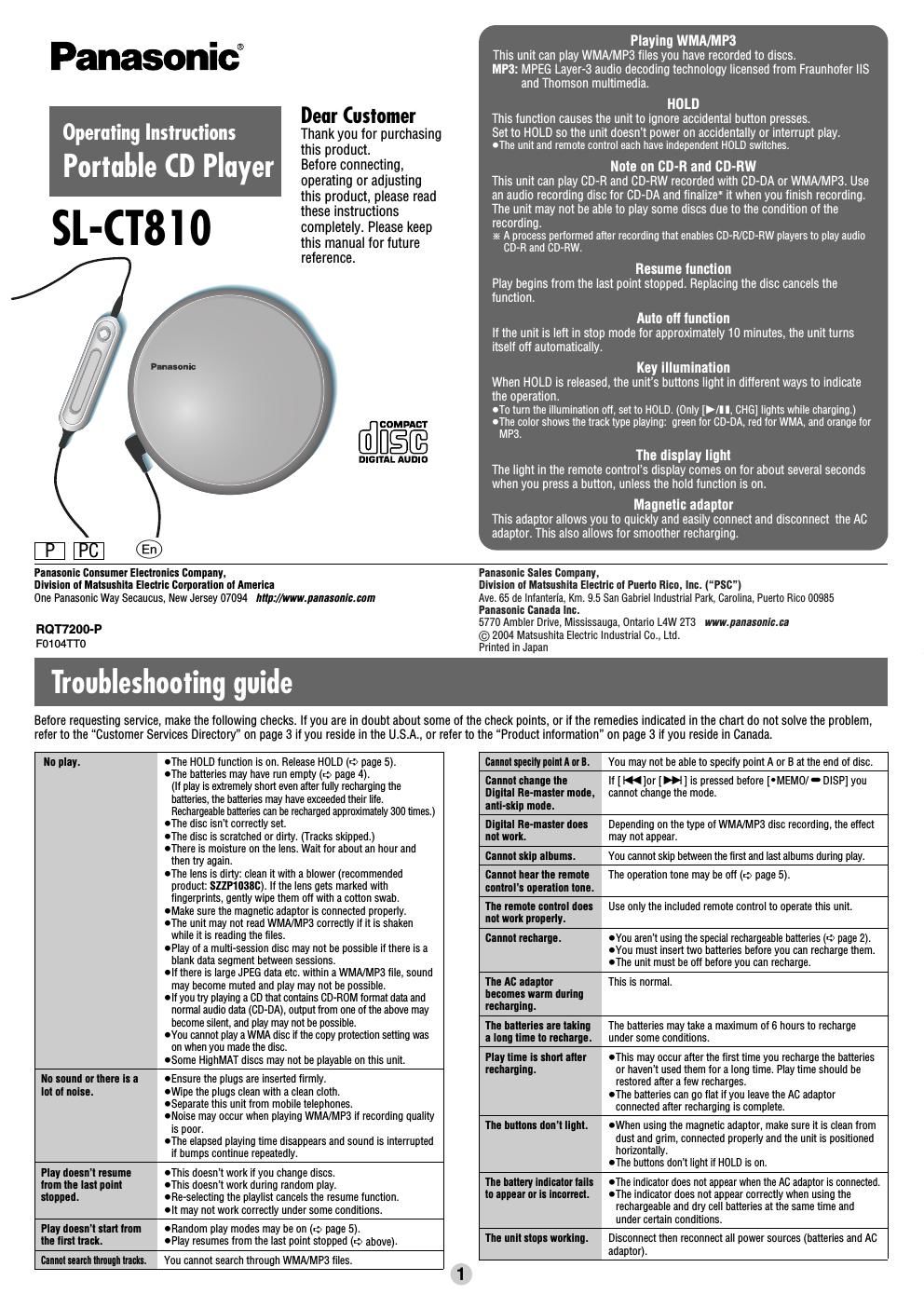

Page 1
IMPORTANT SAFETY INSTRUCTIONS
Displays
2
HOLD
NODISC
OPEN
CHARGE
F
N
The HOLD function is on. Release HOLD (
-žª page 5).
-‰¥
You havent inserted a disc or it isnt inserted correctly.-‰¥You have inserted a disc this unit cannot play.
The disc lid is open.
The batteries are recharging. Recharging is complete
when this disappears.
The program already contains 20 tracks.
Reading WMA/MP3 files.
Check the packing carton for these accessories.-‰¥1 Wired remote control:N2QCBD000038
-‰¥1 Magnetic adaptor:RFA2108-S
-‰¥1 AC adaptor:RFEA415C-1S
-‰¥1 Pair of stereo earphones:L0BAB0000176
-‰¥1 External battery case:RFA1821-H
-‰¥2 Nickel-metal hydride rechargeable batteries:(see below)
-‰¥1 Battery carrying case:RFC0062-X
Use only the following rechargeable batteries:
HHF-AZ01 (Nickel-metal hydride rechargeable batteries)
Specifications
Audio (CD-DA)Sampling frequency: 44.1 kHz
No. of channels:
2 (left and right, stereo)
Frequency response:
20 Hz to 20,000 Hz
(i0.5 dB to j8 dB)
Headphone output level:
RMS max. 6 mWi6 mW/
16 -‰ (adjustable)
PickupLight source: Semiconductor laser
Wavelength: 780 nm
WMA/MP3Supported bit-rates:
WMA: 32 kbps to 320 kbps
(64 kbps is recommended)
MP3: 32 kbps to 320 kbps
(128 kbps is recommended)
Supported sampling frequency:
48 kHz/44.1 kHz/32 kHz
Maximum number of items
(total no. of albums and tracks): 999
Maximum album levels: 100
GeneralPower supply:
DC input (via included AC adaptor):
DC 4.5 V AC adaptor input: AC 120 V 60 HzPower consumption:
Using AC adaptor
(WMA/MP3/CD-DA):
2.6 W/2.6 W/2.6 W
Recharging: 5.5 WPlay time:
Using on a flat stable surface at
25 eC (77 eF), EQ is off, Hold is on,
HighMAT is off, Anti-skip is on POS 1
(CD-DA), recommended bit rate
(WMA:64 kbps/MP3:128 kbps), and
Digital Re-master is off (WMA/MP3).
Play times are in hours and
approximate.
Recharging time: about 5 to 6 hours
-‰¥The play time may be less depending
on the operating conditions.
-‰¥Play time will be considerably
reduced when playing CD-RW.
Operational temperature range:
0 eC-“40 eC (32 eF-“104 eF)
Rechargeable temperature range:
5 eC-“40 eC (41 eF-“104 eF)
Dimensions (WaHaD):
134.4a14.4a133.5 mm
(5
9/32za9/16za5 1/4z)
Mass: 195 g(6.9 oz) (with batteries)
145 g(5.1 oz) (without batteries)
Note:
Specifications are subject to change
without notice.
Mass and dimensions are approximate.
Batteries used
2 optional alkaline batteries
2 supplied
rechargeable
batteries
2 supplied
rechargeable and
2 optional alkaline
batteries
MP3 disc
120
63
188CD-DA
disc
73
38
120
WMA disc
125
73
200
Supplied Accessories
AC adaptor power consumed in
standby mode: 1.6 W
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturers
instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized
plug has two blades with one wider than the other. A grounding-type plug has two
blades and a third grounding prong. The wide blade or the third prong are provided for
your safety. If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by
the manufacturer, or sold with the apparatus. When a cart is
used, use caution when moving the cart/apparatus combination
to avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate normally, or has been dropped. Read these operating instructions carefully before using the unit. Follow the safety instructions
on the unit and the applicable safety instructions listed below. Keep these operating
instructions handy for future reference.
Discontinue use if you experience discomfort with the earphones or any other parts that directly
contact your skin. Continued use may cause rashes or other allergic reactions.
-ˆ«Batteries-‰¥Do not peel off the covering on the batteries and do not use if the covering has been peeled
off.
-‰¥Align the poles iand jcorrectly when inserting the batteries.
-‰¥Do not mix different types of batteries or old and new batteries.
-‰¥Remove the batteries if you do not intend to use the unit for a long time.
-‰¥Do not throw into a fire, short-circuit, disassemble, or subject to excessive heat.
-‰¥Do not attempt to recharge dry cell batteries.
-‰¥When carrying batteries in a pocket or bag, ensure no metal objects such as necklaces are
placed together with them. Contact with metal may cause short-circuiting which can cause a
fire. For safety, carry the rechargeable batteries in the battery carrying case.
-ˆ«CDs-‰¥Do not use irregularly shaped CDs.
-‰¥Do not use non-specification discs.
-‰¥Do not use CDs printed with label printers available on the market.
-‰¥Do not use CDs with labels and stickers that are coming off or with adhesive exuding from
under labels and stickers.
Caution
-ˆ«Listening
Do not play your headphones or earphones at a high volume. Hearing experts advise against
continuous extended play.
If you experience a ringing in your ears, reduce volume or discontinue use.
Do not use while operating a motorized vehicle. It may create a traffic hazard and is illegal in
many areas.
You should use extreme caution or temporarily discontinue use in potentially hazardous
situations.
Even if your headphones or earphones are the open-air type designed to let you hear outside
sounds, dont turn up the volume so high that you cant hear whats around you.
Sound can be deceiving. Over time your hearing comfort level adapts to higher volumes of
sound. So what sounds normal can actually be loud and harmful to your hearing.
Guard against this by setting your equipment at a safe level BEFORE your hearing adapts.
To establish a safe level:
-‰¥Start your volume control at a low setting.
-‰¥Slowly increase the sound until you can hear it comfortably and clearly, and without
distortion.
Once you have established a comfortable sound level:
-‰¥Leave it there.
EST. 1924
Use numbers indicated when ordering replacements or optional accessories
from your Panasonic dealer.
In U.S.A. to order accessories, refer to Accessory Purchases on page 3.
Page 2
3
ONLY FOR U.S.A.
Panasonic Consumer Electronics Company,
Division of Matsushita Electric Corporation of America
One Panasonic Way Secaucus, New Jersey 07094Panasonic Sales Company, Division of Matsushita Electric
of Puerto Rico, Inc.,
Ave. 65 de InfanterÃa, Km. 9.5
San Gabriel Industrial Park, Carolina, Puerto Rico 00985
CAUTION!THIS PRODUCT UTILIZES A LASER.
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF
PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY
RESULT IN HAZARDOUS RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER
SERVICING TO QUALIFIED PERSONNEL.
Marking sign is located on bottom of the unit.
WARNING:TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT
DAMAGE, DO NOT EXPOSE THIS APPARATUS TO RAIN, MOISTURE,
DRIPPING OR SPLASHING AND THAT NO OBJECTS FILLED WITH
LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE
APPARATUS.
CAUTION : Use only car adaptor, Model: SH-CDC9
manufactured by Matsushita Electric Industrial Co., Ltd.
THE FOLLOWING APPLIES ONLY IN THE U.S.A.
CAUTION: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
-‰¥Reorient or relocate the receiving antenna.
-‰¥Increase the separation between the equipment and receiver.
-‰¥Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
-‰¥Consult the dealer or an experienced radio/TV technician for help.
Any unauthorized changes or modifications to this equipment would void the users
authority to operate this device.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Product service
1. Damage requiring service-The unit should be serviced by qualified service
personnel if:
1.(a) The AC power supply cord or AC adaptor has been damaged; or
1.(b) Objects or liquids have gotten into the unit; or
1.(c) The unit has been exposed to rain; or
1.(d) The unit does not operate normally or exhibits a marked change in
performance; or
1.(e) The unit has been dropped or the cabinet damaged.
2.
Servicing-Do not attempt to service the unit beyond that described in these
operating instructions. Refer all other servicing to authorized servicing personnel.
3. Replacement parts- When parts need replacing ensure the servicer uses parts
specified by the manufacturer or parts that have the same characteristics as the original
parts. Unauthorized substitutes may result in fire, electric shock, or other hazards.
4. Safety check-After repairs or service, ask the servicer to perform safety
checks to confirm that the unit is in proper working condition.
Product information
For product information or assistance with product operation:In the U.S.A., refer to Customer Services Directory below.For assistance in the continental U.S.A. in obtaining repairs please ship the product to:
PanasonicServices Company - Customer Servicenter
Suite B 4900 George McVay Drive
McAllen, TX 78503
In Puerto Rico contact the Panasonic Sales Company.
Tel. (787) 750-4300 Fax. (787) 768-2910
When shipping the unit carefully pack and send it prepaid, adequately insured and
preferably in the original carton. Include a letter detailing the complaint and
provide a day time phone number where you can be reached.
IF REPAIR IS NEEDED DURING THE WARRANTY PERIOD THE PURCHASER WILL
BE REQUIRED TO FURNISH A SALES RECEIPT/PROOF OF PURCHASE
INDICATING DATE OF PURCHASE, AMOUNT PAID AND PLACE OF PURCHASE.
CUSTOMER WILL BE CHARGED FOR THE REPAIR OF ANY UNIT RECEIVED
WITHOUT SUCH PROOF OF PURCHASE.
Also, the purchaser will be responsible for shipping the unit to the above address.
In Canada, contact the Panasonic Canada Inc. Customer Care Centre at 905-624-
5505, or visit the website (www.panasonic.ca), or an authorized Servicentre
closest to you.
DATE OF PURCHASE DEALER NAME DEALER ADDRESS
TELEPHONE NUMBER
User memo:
Panasonic Portable Audio Products Limited Warranty Limited Warranty CoverageIf your product does not work properly because of a defect in materials or workmanship, Panasonic Consumer
Electronics Company or Panasonic Sales Company (collectively referred to as the warrantor) will, for the
length of the period indicated on the chart below, which starts with the date of original purchase (warranty
period), at its option either (a) repair your product with new or refurbished parts, or (b) replace it with a new
or a refurbished product. The decision to repair or replace will be made by the warrantor.
Product or Part Name
All Portable Audio Products except item listed
below
Rechargeable batteries
(in exchange for defective item)
Parts
One (1) Year
Ten (10) Days
Labor
One (1) Year
Not applicable
During the Labor warranty period there will be no charge for labor. During the Parts warranty period, there
will be no charge for parts. You must mail-in your product during the warranty period. This Limited Warranty
excludes both parts and labor for batteries, antennas, and cosmetic parts (cabinet). This warranty only applies
to products purchased and serviced in the United States or Puerto Rico. This warranty is extended only to the
original purchaser of a new product which was not sold as is.
Mail-In ServiceFor assistance in the continental U.S.A. in obtaining repairs please ship the product to:
Panasonic Services Company
Customer Servicenter
Suite B
4900 George McVay Drive
McAllen, TX 78503
For assistance in Puerto Rico call Panasonic Sales Company (787)-750-4300 or fax (787)-768-2910.
When shipping the unit carefully pack and send it prepaid, adequately insured and preferably in the original
carton. Include a letter detailing the complaint and provide a day time phone number where you can be reached.
Customer Services Directory
IF REPAIR IS NEEDED DURING THE WARRANTY PERIOD THE PURCHASER WILL BE REQUIRED TO FURNISHA SALES RECEIPT/PROOF OF PURCHASE INDICATING DATE OF PURCHASE, AMOUNT PAID AND PLACE OFPURCHASE. CUSTOMER WILL BE CHARGED FOR THE REPAIR OF ANY UNIT RECEIVED WITHOUT SUCHPROOF OF PURCHASE.Limited Warranty Limits And ExclusionsThis warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER
normal wear and tear or cosmetic damage. The warranty ALSO DOES NOT COVER damages which occurred in
shipment, or failures which are caused by products not supplied by the warrantor, or failures which result from
accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up
adjustments, misadjustment of consumer controls, improper maintenance, power line surge, lightning damage,
modification, introduction of sand, humidity or liquids, commercial use such as hotel, office, restaurant, or
other business or rental use of the product, or service by anyone other than a Factory Servicenter or other
Authorized Servicer, or damage that is attributable to acts of God.
THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER LIMITED WARRANTY COVERAGE.
THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE
USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY.(As examples, this excludes
damages for lost time, travel to and from the servicer, loss of or damage to media or images, data or other
memory or recorded content. The items listed are not exclusive, but are for illustration only.)
ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF MERCHANTABILITY, ARE
LIMITED TO THE PERIOD OF THE LIMITED WARRANTY.
Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how
long an implied warranty lasts, so the exclusions may not apply to you. This warranty gives you specific legal
rights and you may also have other rights which vary from state to state. If a problem with this product develops
during or after the warranty period, you may contact your dealer or Servicenter. If the problem is not handled to
your satisfaction, then write to the warrantors Consumer Affairs Department at the addresses listed for the warrantor.PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY, ARE YOUR RESPONSIBILITY.
Matsushita Electric of Puerto Rico, Inc. Panasonic Sales Company/Factory Servicenter:
Ave. 65 de InfanterÃa, Km. 9.5, San Gabriel Industrial Park, Carolina, Puerto Rico 00985
Phone (787)750-4300, Fax (787)768-2910
F1003
Obtain Product Information and Operating Assistance; locate your nearest Dealer
or Servicenter; purchase Parts and Accessories; or make Customer Service and
Literature requests by visiting our Web Site at:
http://www.panasonic.com/supportor, contact us via the web at:http://www.panasonic.com/contactinfoYou may also contact us directly at:
1-800-211-PANA (7262),
Monday-Friday 9 am-9 pm; Saturday-Sunday 10 am-7 pm, EST.
For hearing or speech impaired TTY users, TTY : 1-877-833-8855
Accessory Purchases
Service in Puerto Rico
Purchase Parts, Accessories and Instruction Books online for all Panasonic Products by visiting our
Web Site at: http://www.pasc.panasonic.com
or, send your request by E-mail to: npcparts@panasonic.comYou may also contact us directly at:
1-800-332-5368 (Phone) 1-800-237-9080 (Fax Only) (Monday -“ Friday 9 am to 8 pm, EST.)
Panasonic Services Company
20421 84th Avenue South, Kent, WA 98032
(We Accept Visa, MasterCard, Discover Card, American Express, and Personal Checks)
For hearing or speech impaired TTY users, TTY : 1-866-605-1277
The model number and serial number of this product can be found on either
the back or the bottom of the unit.
Please note them in the space provided below and keep for future reference.
MODEL NUMBER
SL-CT810
SERIAL NUMBER
A nickel metal hydride battery that is recyclable powers the
product you have purchased. Please call 1-800-8-BATTERY
for information on how to recycle this battery. RBRC
Ni-MH
TM
