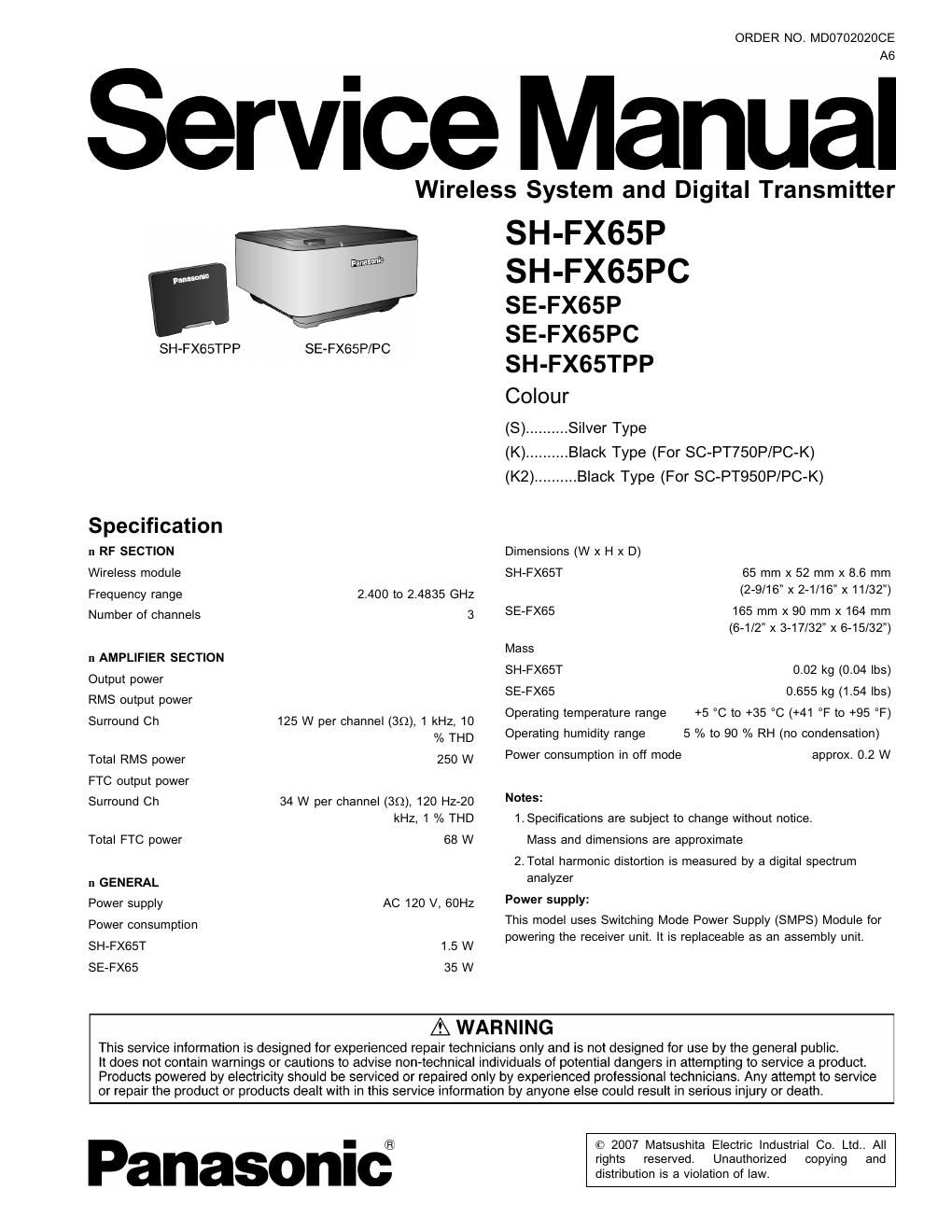

Page 1
ORDER NO. MD0702020CE
Service Manual
Wireless System and Digital Transmitter
SH-FX65TPP
Specification
n RF SECTION
Wireless module
Frequency range
Number of channels
n AMPLIFIER SECTION
Output power
RMS output power
Surround Ch
Total RMS power
FTC output power
Surround Ch
Total FTC power
n GENERAL
Power supply
Power consumption
SE-FX65P/PC
2.400 to 2.4835 GHZ
3
125 W per channel (39), 1 kHz, 10
% THD
250 W
34 W per channel (39), 120 Hz-20
kHz, 1 /0 THD
68W
AC 120 V, 60Hz
SH-FX65P
SH-FX65PC
SE-FX65P
SE-FX65PC
SH-FX65TPP
Colour
.Silver Type
.Black Type (For SC-PT75OP/PC-K)
(K2) .......... Black Type (For SC-PT950P/PC-K)
Dimensions (W x H x D)
SH-FX65T 65 mm x 52 mm x 8.6 mm
(2-9/16" x 2-1/16" x 11/32")
SE»FX65 165 mm x 90 mm x 164 mm
(6-1/2" x 3-17/32" x 6-15/32")
Mass
SH»FX65T 0.02 kg (0.04 lbs)
SE»FX65 0.655 kg (1.54 lbs)
Operating temperature range +5 "C to +35 °C (+41 F to +95 °F)
5 % to 90 % RH (no condensation)
approx. 0.2 W
Operating humidity range
Power consumption in off mode
Notes:
1.Specifications are subject to change without notice.
Mass and dimensions are approximate
2.Tota| harmonic distortion is measured by a digital spectrum
analyzer
Power supply:
This model uses Switching Mode Power Supply (SMPS) Module for
powering the receiver unit. It is replaceable as an assembly unit.
SH-FX65T 1.5 w
SE»FX65 35 w
A WARNING
This service information is designed for experienced repair technicians only and is not designed for use by the general public.
It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced protessional technicians. Any attempt to service
or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.
Panasonic?
© 2007 Matsushita Electric Industrial Co. Ltd.. All
rights reserved. Unauthorized copying and
distribution is a violation of law.
