Panasonic sc htb 500 pp service manual

This is the 115 pages manual for panasonic sc htb 500 pp service manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 115
left right
panasonic sc htb 500 pp service manual

Extracted text from panasonic sc htb 500 pp service manual (Ocr-read)

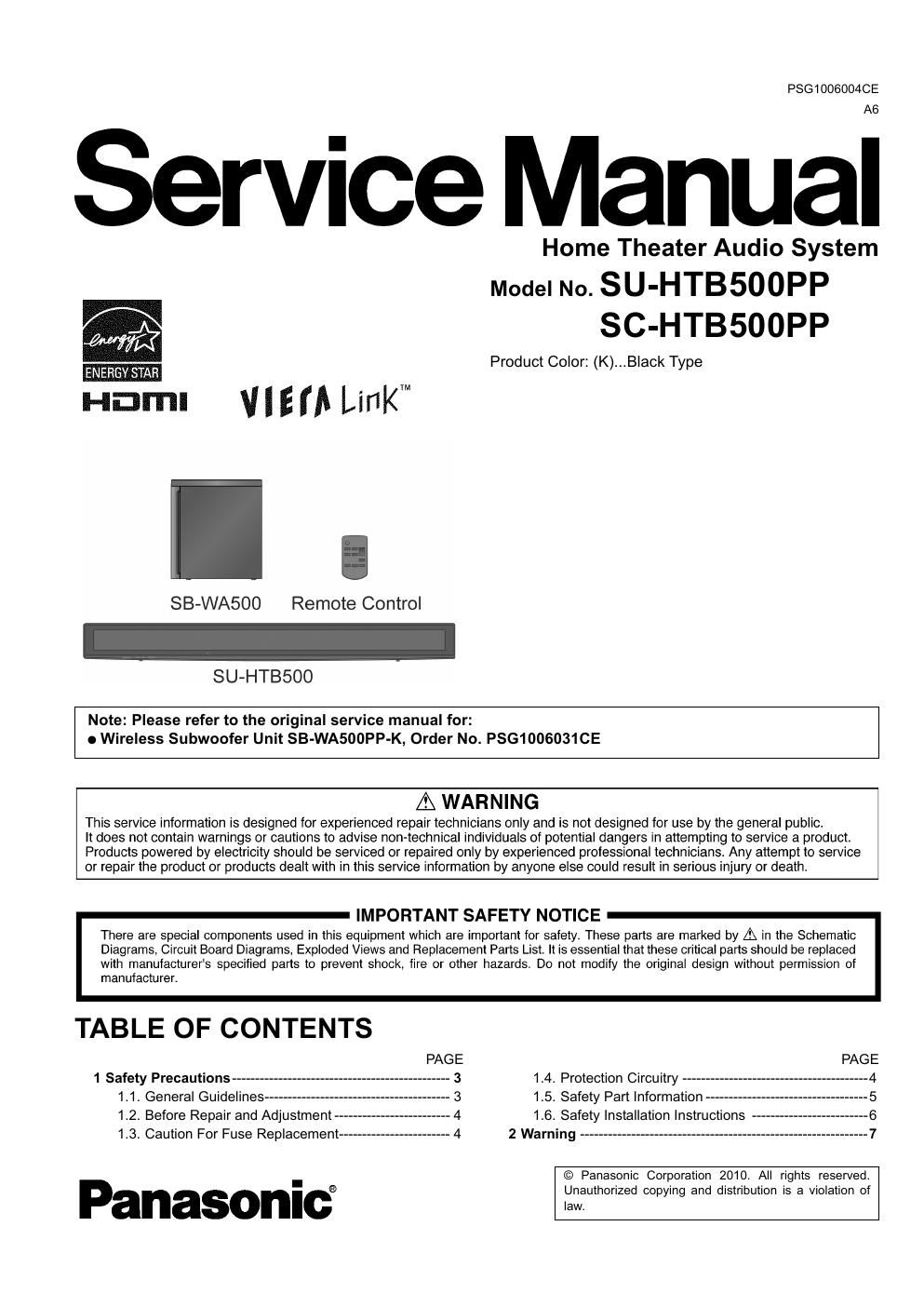

Page 1

PSG1006004CE
A6

Service Manual

Home Theater Audio System

Model No. SU-HTB5OOPP
ll SC-HTB5OOPP

Product Color: (K)...Black Type

HDITII VIE Linkm

SB-WA500 Remote Control

SU-HTBSOO

Note: Please refer to the original service manual for:
a Wireless Subwoofer Unit SB-WA500PP-K, Order No. PSG1006031CE

A WARNING

This service information is designed for experienced repair technicians only and is not designed for use by the general public.

It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service
or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.

IMPORTANT SAFETY NOTICE

There are special components used in this equipment which are important for safety. These parts are marked by A in the Schematic
Diagrams, Circuit Board Diagrams, Exploded Views and Replacement Parts List. It is essential that these critical parts should be replaced

with manufacturer's specified parts to prevent shock, tire or other hazards. Do not modify the original design without permission of
manufacturer.


TABLE OF CONTENTS

1 Safety Precautions--------
11. General Guidelines-
1.2. Before Repair and Adjustment ---
1.3. Caution For Fuse Replacement--

14. Protection Circuitry -----
15. Safety Part Information
16. Safety Installation Instructions -------------------------6
2 Warning 7

© Panasonic Corporation 2010. All rights reserved.

Panasonic® Unauthorized copying and distribution is a violation of
law.
