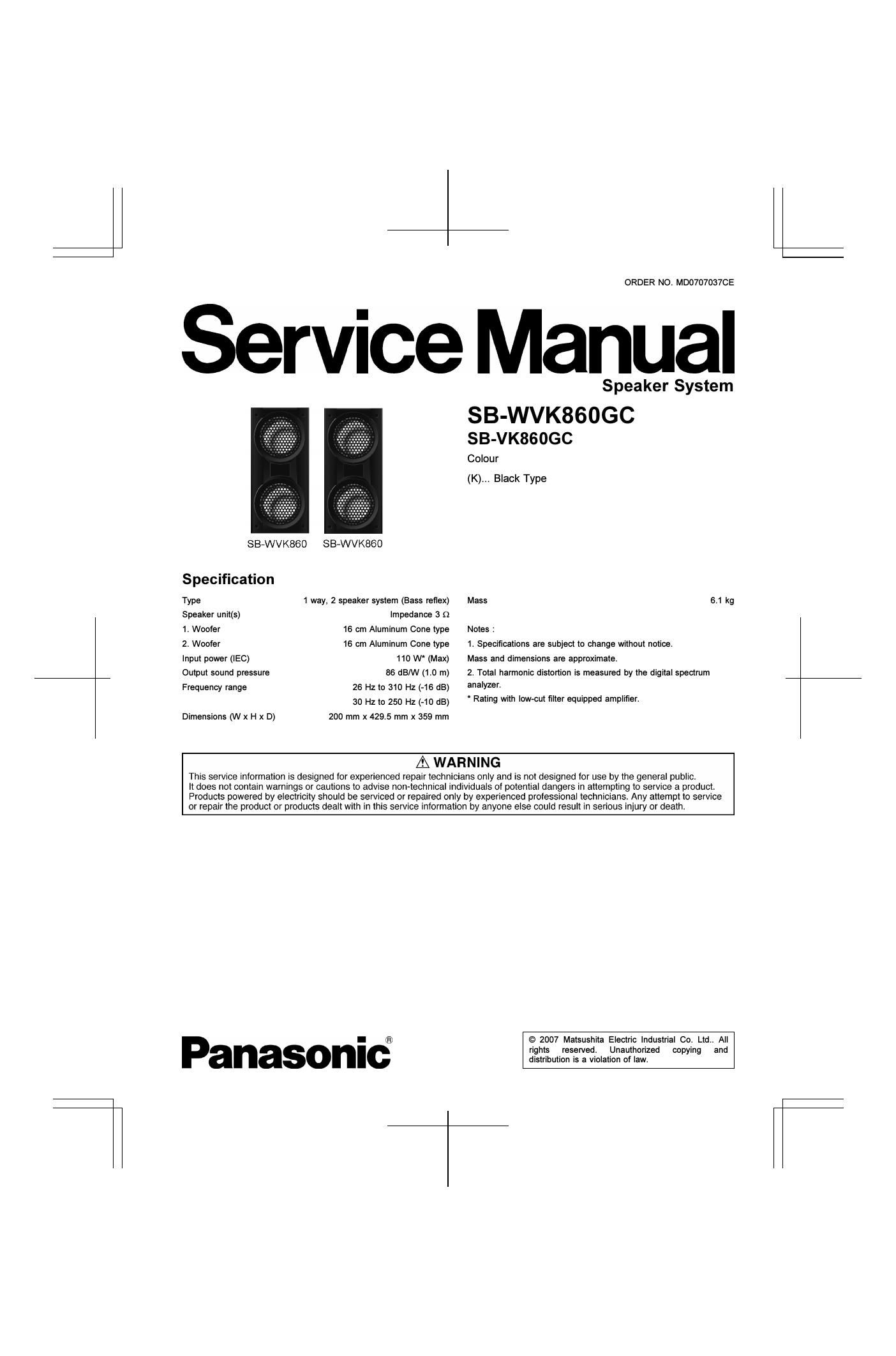

Panasonic sb wvk 860 gc service manual

Page 1

1 System Combination 1.1. System Breakdown Note : The tables below show the breakdown for speaker combinations used in main unit systems. System SC-VK860GC-K Music center SA-VK860GC-K Front speakers SB-PF860GC-K Surround speakers SB-PS860GC-K Center speaker SB-PC860GC-K Subwoofer SB-WVK860GC-K System SC-VK860EE-K Music center SA-VK860EE-K Front speakers SB-PF860GC-K Surround speakers SB-PS860GC-K Center speaker SB-PC860GC-K Subwoofer SB-WVK860GC-K System SC-VK860GCSK Music center SA-VK860GCSK Front speakers SB-PF860GC-K Surround speakers SB-PS860GC-K Center speaker SB-PC860GC-K Subwoofer SB-WVK860GC-K System SC-VK860GN-K Music center SA-VK860GN-K Front speakers SB-PF860GC-K Surround speakers SB-PS860GC-K Center speaker SB-PC860GC-K Subwoofer SB-WVK860GC-K System SC-VK860GS-K Music center SA-VK860GS-K Front speakers SB-PF860GC-K Surround speakers SB-PS860GC-K Center speaker SB-PC860GC-K Subwoofer SB-WVK860GC-K 1.2. Packaging information (SB-VK860GC-K) Note: For more information on the complete packaging condition for speakers in SB-VK860 GC-K, please refer to section 4.3 in service manual of SB-PF860GC -K (Order no. MD070 7036C E). 2 SB-WVK860GC

Page 2

2 Assembling and Disassembling ATTENTION SERVICER Some chassis components may have sharp edges. Be careful when disassembling and servicing. 1. This section describes procedures for checking the operation and replacing the main components. 2. For reassembly after operation checks or replacement, reverse the respective procedures. Specia l reassembly procedures are described only when required. 3. Select items from the following index when checks or replacement are required. 4. Refer to the Parts No. on the page of Parts Locatio n and Replac ement Parts List (Section 5), if necessary. Below is the list of disassembly sections Disasse mbly of Front Panel assembly Disasse mbly of Woofer 1 (SP1) Disasse mbly of Woofer 2 (SP1) Disasse mbly of Woofer 1 spacer Disasse mbly of Woofer 2 spacer 3 SB-WVK860GC
