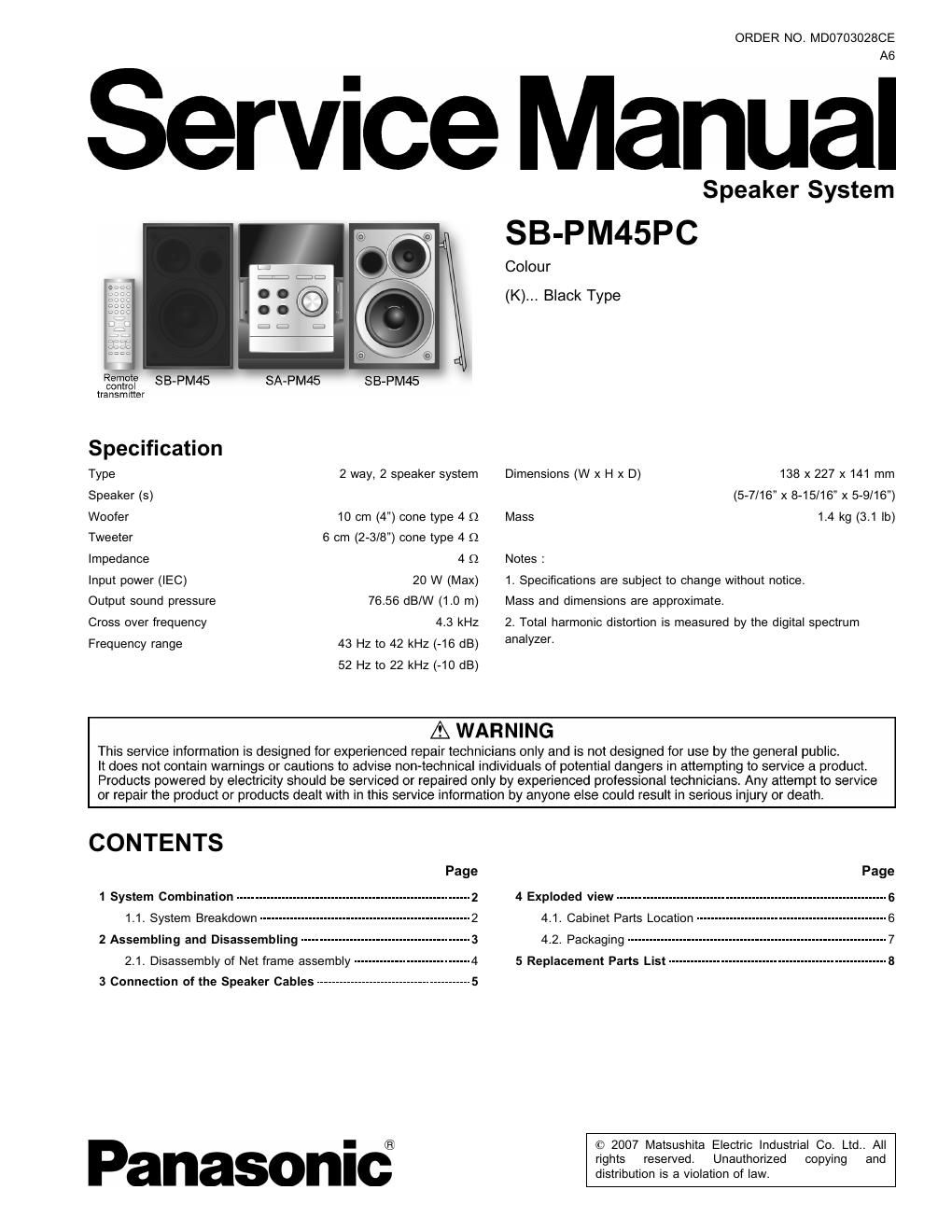

Extracted text from panasonic sb pm 45 pc service manual (Ocr-read)
Page 1
1 System Combination
1.1. System Breakdown
Note :
The table below show the breakdown for speaker combinations used in main unit systems.
System SC-PM45PC-K
Music center SA-PM45PC-K
Front speakers SB-PM45PC-K
2
SB-PM45PC
Page 2
2 Assembling and Disassembling
ATTENTION SERVICER
Some chassis components may have sharp edges. Be careful when disassembling and servicing.
1. This section describes procedures for checking the operation of the major printed circuit boards and replacing the main
components.
2. For reassembly after operation checks or replacement, reverse the respective procedures.
Specia l reassembly procedures are described only when required.
3. Select items from the followingindex when checks or replacement are required.
4. Refer to the Parts No. on the page of Parts Location and Replac ement Parts List (Section 5), if necessary.
Below is the list of disassembly sections
·
Disasse mbly of Net frame assembly
3
SB-PM45PC
