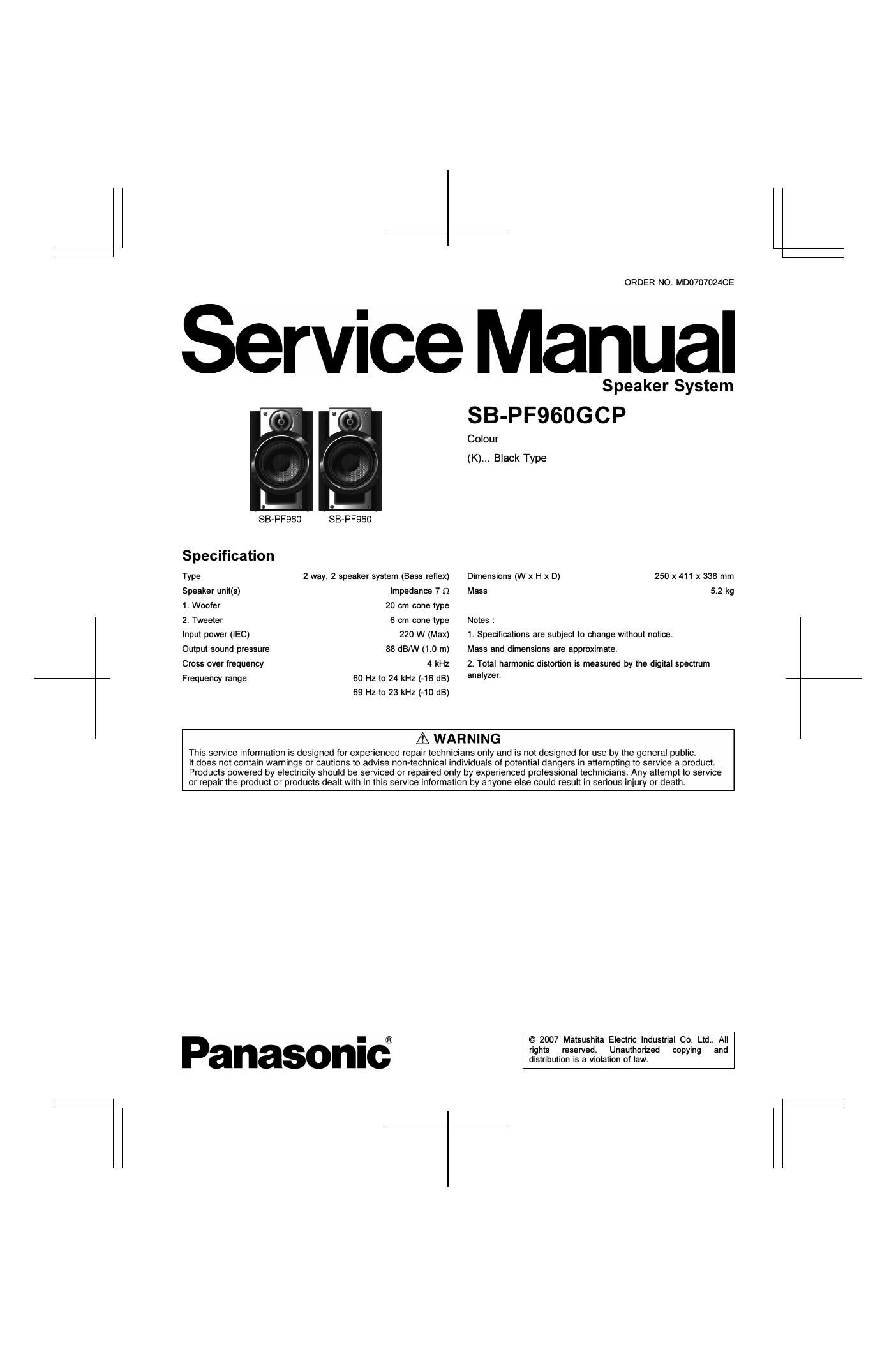

Extracted text from panasonic sb pf 960 gcp service manual (Ocr-read)
Page 1
1 System Combination
1.1. System Breakdown
Note :
The table below show the breakdown for speaker combinations used in main unit systems.
System SF-AK960GCPK
Music center SA-AK960GCPK
Front speakers SB-PF960GCPK
Speaker system SB-AK960GCPK
Surround speakers SB-PS960GCPK
Subwoofer SB-WAK960GCPK
Active subwoofer SB-WAK860GCPK
2
SB-PF960 GCP
Page 2
2 Assembling and Disassembling
ATTENTION SERVICER
Some chassis components may have sharp edges. Be careful when disassembling and servicing.
1. This section describes procedures for checking the operation and replacing the main components.
2. For reassembly after operation checks or replacement, reverse the respective procedures.
Specia l reassembly procedures are described only when required.
3. Select items from the following index when checks or replacement are required.
4. Refer to the Parts No. on the page of Parts Locatio n and Replac ement Parts List (Section 5), if necessary.
Below is the list of disassembly sections
Disasse mbly of Speak er cabinet
Disasse mbly of Tweeter (SP1)
Disasse mbly of Woofer (SP2)
3
SB-PF960 GCP
