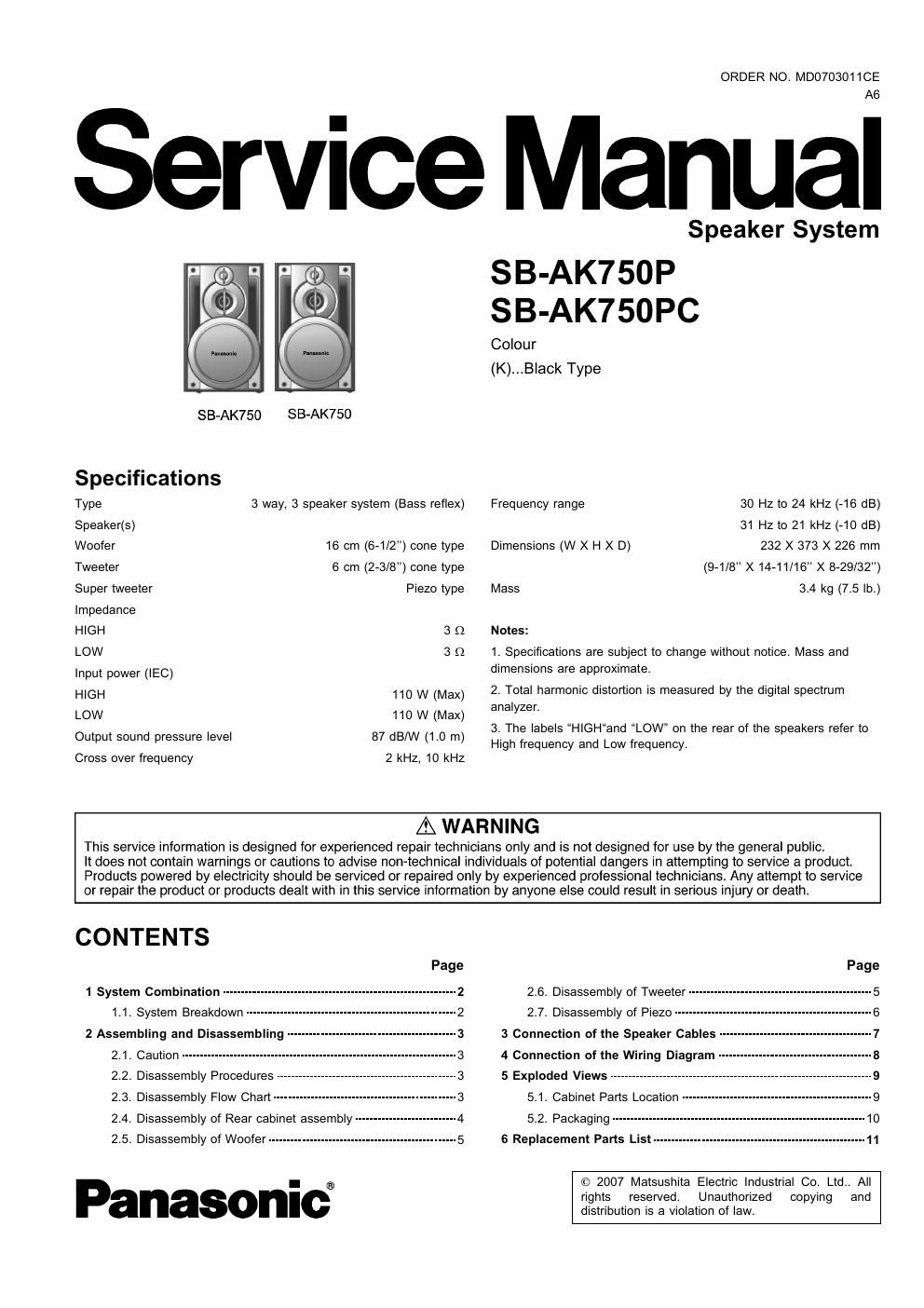

Panasonic sb ak 750 p service manual

Page 2

2 Assembling and Disassembling 2.1. Caution Attention Servic er Some chassis components may have sharp edges. Be careful when disassembly and servicing. 1. This section describes procedure for checking the operation of replacing the main components. 2. For reassembly after operation checks or replacement, reverse the respective procedures. 3. Select items from the followingindex when checks or replacement are required. 4. Refer to the Part No.on the page of Parts Location and Replac ement Parts List (Section 6) if necessary. 2.2. Disassembly Procedures · Disassembly of Rear cabine t assembly · Disassembly ofWoofer · Disassembly of Tweeter · Disassembly of Piezo 2.3. Disassembly Flow Chart The following chart is the procedure for disassembly the casing and inside parts for internal inspection when carrying out the servicing. To assemble the unit, reverse the steps shown in the chart as below. 3 / SB-AK750P / SB-AK750PC
