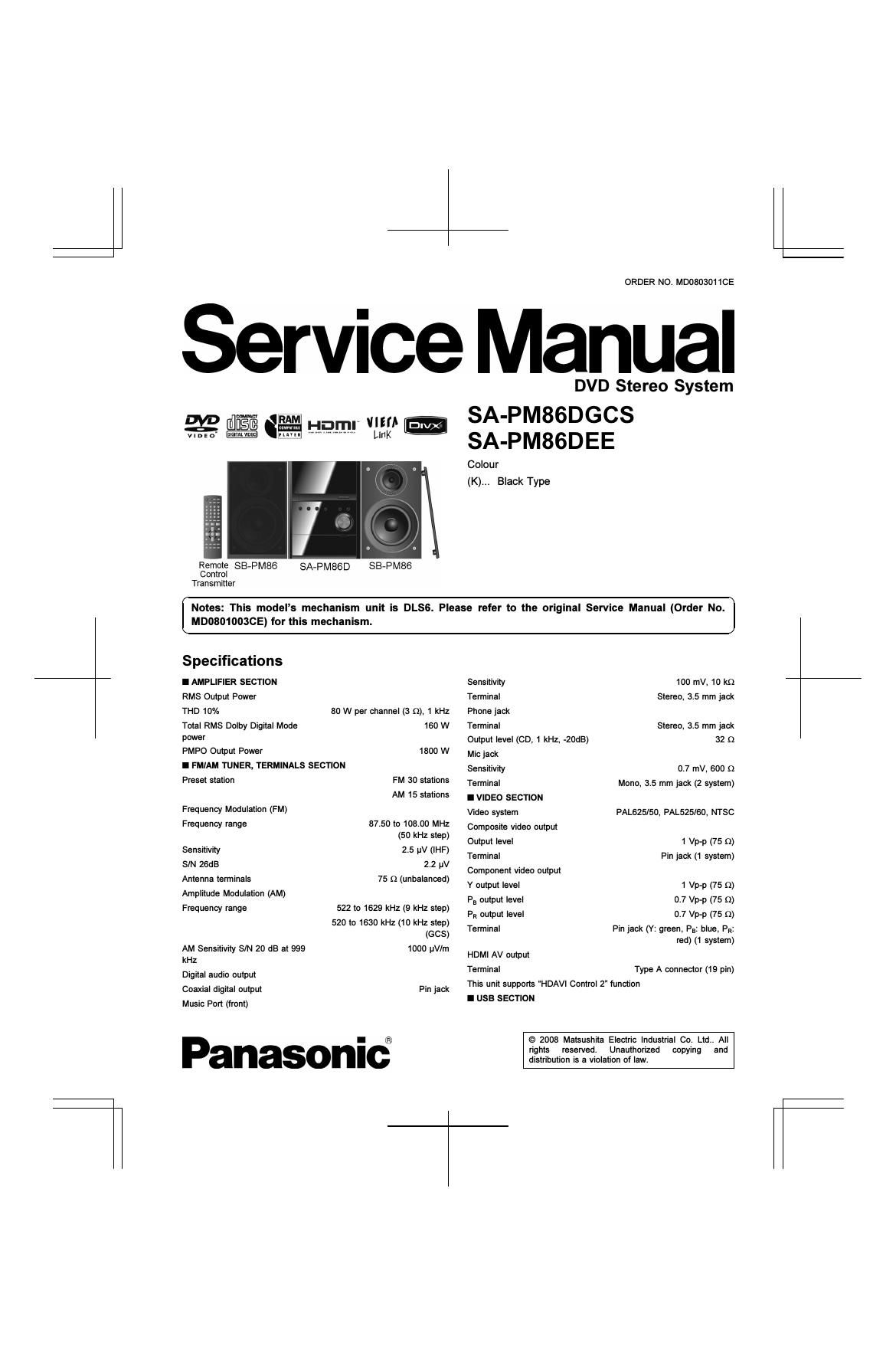

SA-PMEG DGCS I SA-PMEGDEE

USB Port
USB Standard
Media file format support

USB 2.0 full speed
MP3 (*.mp3)

WMA (*.wma)

JPEG (1in Jpg)
MPEG4 (.asf)

FAT12, FAT16, FAT32
500 mA (Max)

USB device file system

USB port power

I DISC SECTION

Discs played (8 cm or 12 cm)
(1) DVD (DVD-Video, DivXs '7)
(2) DVD-RAM (DVD-VR, MP3'2' 7, JPEG 7, MPEG45~ 7, DivXG' 7)
(3) DVD-R (DVD»Video, DVD-VR, MP3Z 7, JPEG- 7, MPEG4'5 7,
DivX'G' '7)

(4) DVD-R DL (DVD-Video, DVD-VR)

(5) DVD-RW (DVD»Video, DVD-VR, MP3Z- '7, JPEG'V", MPEG45' 7,
Divxev )

(6) +RI+RW (Video)

(7) +R DL (Video)

(8) CD, CD-RIRW (CD»DA, Video CD, SVCD", MP3'2 7, WMA3 7,
JPEG" 7, MPEG45- 7, Divxev '7)

*1 Conforming to IEC62107

2 MPEG-1 Layer 3, MPEG-2 Layer 3

*3 Windows Media Audio Ver.9.0 L3

Not compatible with Multiple Bit Rate (MBR)

Exif Ver 2.1 JPEG Baseline files

Picture resolution: between 160 x 120 and 6144 x 4096 pixels

(Sub sampling is 4:0:0, 42:0, 42:2 or 4:4:4). Extremely long and
narrow pictures may not be displayed.

*5 MPEG4 data recorded with Panasonic SD multi cameras or DVD
video recorders

Conforming to SD VIDEO speci. cations (ASF standard)lMPEG4
(Simple Profile) video system/G726 audio system

*6 Plays all versions of DivX video (including DivX® 6) with standard

playback of DivX media files. Certified to the DivX Home Theater
Profile.

*7 The total combined maximum number of recognizable audio,
picture and video contents and groups: 4000 audio, picture and
video contents and 400 groups.
Pick up

Wavelength (DVD/CD)

Laser power (DVD/CD)

Audio output (Disc)

655/785 nm
CLASS 1/CLASS 1M

Number of channels
I GENERAL

Power supply

2 channels (FL, FR)

AC 230 V, 50 HZ (EE)
AC 220 to 240 V, 50/60 Hz

(GCS)
Power consumption 95 W
Dimensions (WxHxD) 175.0 mm x 240.0 mm x 342.3
mm

Mass 4.5 kg
Operating temperature range 0°C to 40C
Operating humidity range 35% to 80% RH (no
condensation)

Power consumption in standby mode approx. 0.7 W

I SYSTEM

SC-PMSGDEE-K Main unit: SA-PMSSDEE-K
Speakers: SB»PM86EG-K

Main unit: SA-PMBGDGCS-K

Speakers: SB»PM86EG-K

SC-PMSGDGCS-K

Note:

1.3pecifications are subject to change without notice. Mass and
dimensions are approximate.

2.Total harmonic distortion is measured by the digital spectrum
analyzer.

A WARNING

This service information is designed for experienced repair technicians only and is not designed for use by the general public.

It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service
or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.

CONTENTS

1 Safety Precautions ------
2 Prevention of Electro Static Discharge (ESD) to
Electrostatically Sensitive (ES) Devices

3 Precaution of Laser Diode

4 Handling Precautions for Traverse Un

5 Handling the Lead Free Solder -------- 9
6 Operation Procedures ........................................................... 10
7 Self-Diagnosis and Special Mode Setting ............................. 15
8 ASsembling and Disassembling ............... ........... 23
9 Assembling and Disassembling of Mechanism Unit ............ 51
10 Service Fixture and Tools ..................................................... 55

Page
11 Service Position .................................................................... 55
12 VOItage Measurement & Waveform Chart ............................. 51

13 Wiring Connection Diagram
14 Block Diagram

15 Notes of Schem Diagram-

16 Schematic Diagram ............................................................... 79
17 Printed Circuit Board ............................................................ 95
18 Illustration of ICs, Transistors and Diodes ........................ 101
19 Terminal Function of IC's ................................................... 102
20 Exploded Views .................................................................. 105

21 Replacement Parts List ....................................................... 109
