Panasonic sa akx14p

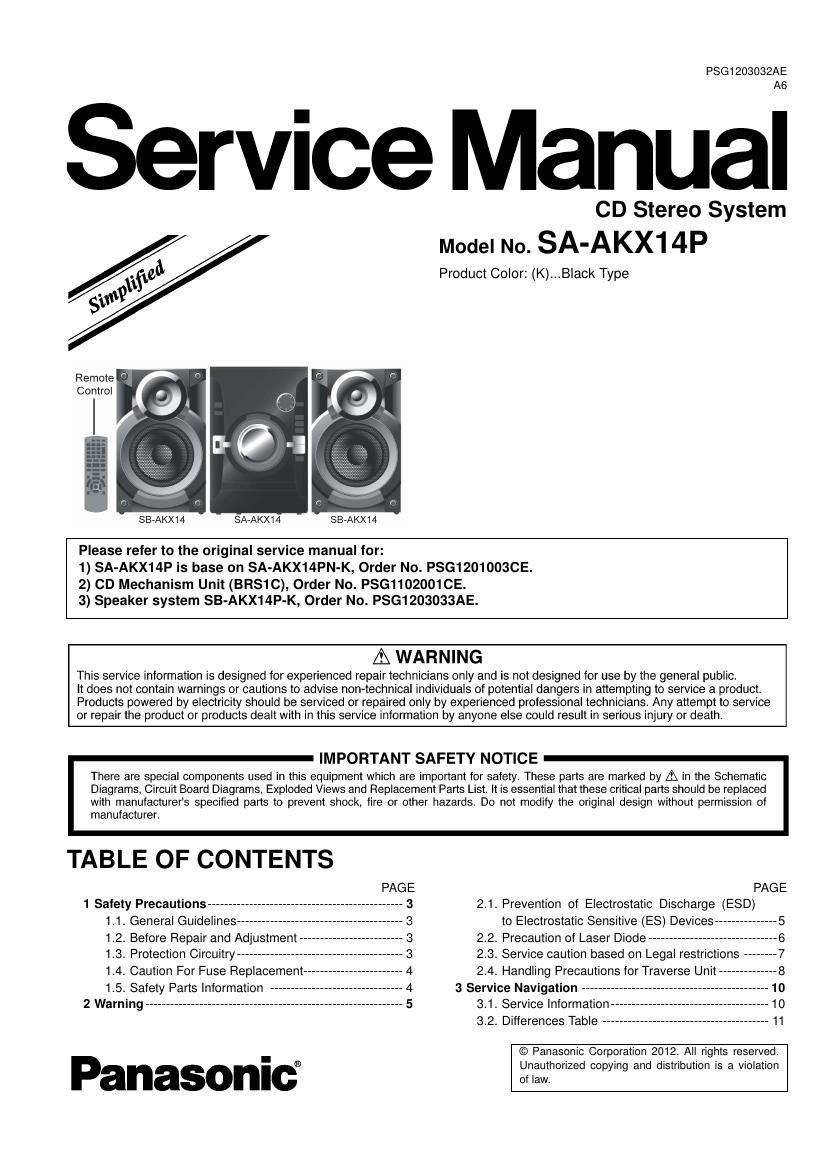

Page 1

PSG1203032AE
A6

Service Manual

CD Stereo System
Model No. SA-AKX14P

Product Color: (K)...Black Type

Remote 5
Control

SB-AKXM SA-AKX14 SB-AKXl 4

Please refer to the original service manual for:

1) SA-AKX14P is base on SA-AKX14PN-K, Order No. PSG1201003CE.
2) CD Mechanism Unit (BRS1C), Order No. PSG1102001CE.

3) Speaker system SB-AKX14P-K, Order No. PSG1203033AE.

A WARNING

This service information is designed for experienced repair technicians only and is not designed for use by the general public

It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians Any attempt to service
or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.

IMPORTANT SAFETY NOTICE

There are special components used in this equipment which are important for safety. These parts are marked by A in the Schematic
Diagrams, Circuit Board Diagrams, Exploded Views and Replacement Parts List. It is essential that these critical pans should be replaced
with manufacturers specified parts to prevent shock, fire or other hazards. Do not modify the original design without permission of
manufacturer.

TABLE OF CONTENTS

1 Safety Precautions--
1.1. General Guidelines-
1.2. Before Repair and Adjustment
1.3. Protection Circuitry ------------------
1.4. Caution For Fuse Replacement--
1.5. Safety Parts Information

2 Warning -----------------------------

PAGE
2.1. Prevention of Electrostatic Discharge (ESD)
to Electrostatic Sensitive (ES) Devices
2.2. Precaution of Laser Diode -------------
2.3. Service caution based on Legal restrictions -
2.4. Handling Precautions for Traverse Unit -------
3 Service Navigation -------
3.1. Service Information
3.2. Differences Table ---------------------------------------- 11

© Panasonic Corporation 2012. All rights reserved.

Panasonic® Unauthorized copying and distribution is a violation
of law.

Page 2

4 Specifications --

6 Schematic Diagram---
6.1. Main Circuit---
6.2. SMPS Circuit-

7 Printed Circuit Board --------------
7.1. Main P.C.B. & Tuner P.C.B.
7.2. Panel, LCD, Remote Sensor & USB P.C.B.-
7.3. SMPS P.C.B. --------------------------------

8 Exploded View and Replacement Parts List --
8.1. Exploded View and Mechanical Replacement

Parts List --------------------------------------------------- 24
8.2. Electrical Replacement Parts List -------------------- 29
