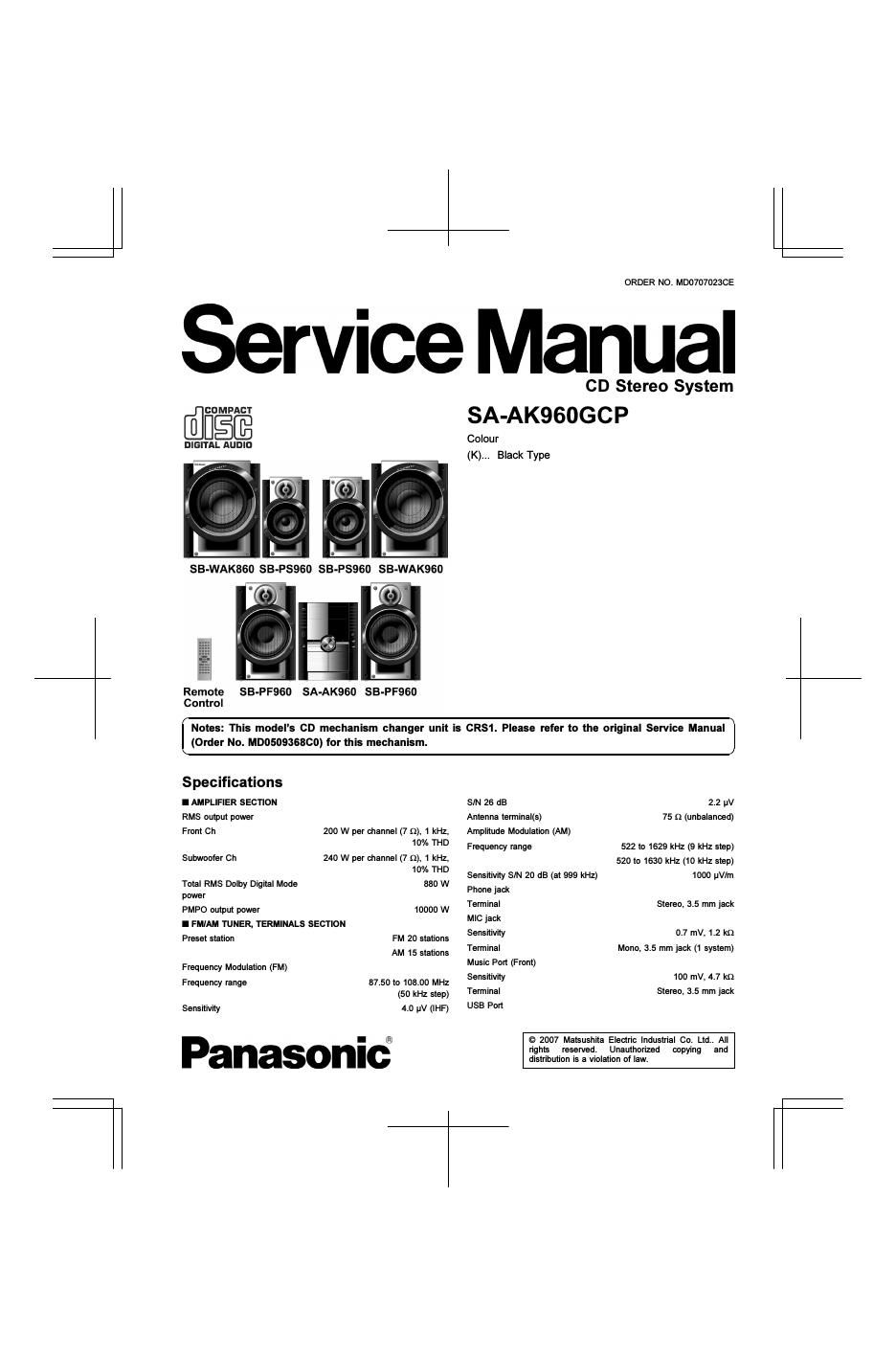

SA-AK9GOGCP

USB standard
Media file format support

USB 2.0 full speed
MP3 (.mp3)

FAT12, FAT16, FAT32
500 mA (Max)

USB device file system
USB port power
I CASSETTE DECK SECTION

Track system 4 track, 2 channel

Heads

Record/playback Solid permalloy head
Erasure Double gap ferrite head
Motor DC servo motor

AC bias 100 kHz
AC erase 100 kHz
4.8 cm/s

Recording system

Erase system

Tape speed

Overall frequency response (+3 dB, -6 dB) at DECK OUT

NORMAL 35 Hz to 14 kHz

SIN Ratio 50 dB (A-WTD)

Wow and flutter 0.18% (WRMS)

Fast forward and rewind time Approx. 120 seconds with
0-60 cassette tape

I DISC SECTION

Disc played [8 cm or 12 cm]

CD, CD-RIRW (CD-DA, MP3 *)

MPEG-t Layer 3, MPEG-2 Layer 3

Pick up
Wavelength 785 nm
Laser power CLASS 1

Audio output (Disc)
Number of channels (FL, FR, SL, SR, SW) 4.2 ch
Audio performance (measurement at: CD out terminal)

Frequency response (CD-Audio) 4 Hz to 20 kHz

SIN ratio (CD»Audio) 95 dB
Dynamic range (CD-Audio) 93 dB
Total harmonic dist. (CD»Audio) 0.005%

I GENERAL

Power supply AC 110 to 127/220 to 240 V,

50/60Hz
Power consumption 235 W
Dimensions (W x H x D) 250 x 331.5 x 358 mm
Mass 8.3 kg
Operating temperature range +5 to +35°C

Operating humidity range 5 to 90% RH (no condensation)

Power consumption in standby 0.99 W (Approx.)
mode

I SYSTEM

SC-AK960 (GCP) Music center: SA»AK960 (GCP)
(SF»AK960GCP) Front speakers: SB-PF960 (GCP)

Surround speakers: SB»PS960 (GCP)
Subwoofer: SB-WAK960 (PL)
Subwoofer: SB»WAK860 (GCP)

For Information on speaker system, plesae refer to the original
Service Manual (Order No. MD0707024CE) for SB-PF960GCP-K,
(Order No. MD0707025CE) for SB-PSQSOGCP-K, (Order No.
MD0707026CE) for SB»WAK960PL-K & (Order No. MD070702ZCE)
for SB-WAKSSOGCP-K.

This model uses CRS1 mechanism (CD changer mechanism)
Note:

1.Specifications are subject to change without notice. Mass and
dimensions are approximate.

2.Total harmonic distortion is measured by the digital spectrum
analyzer.
