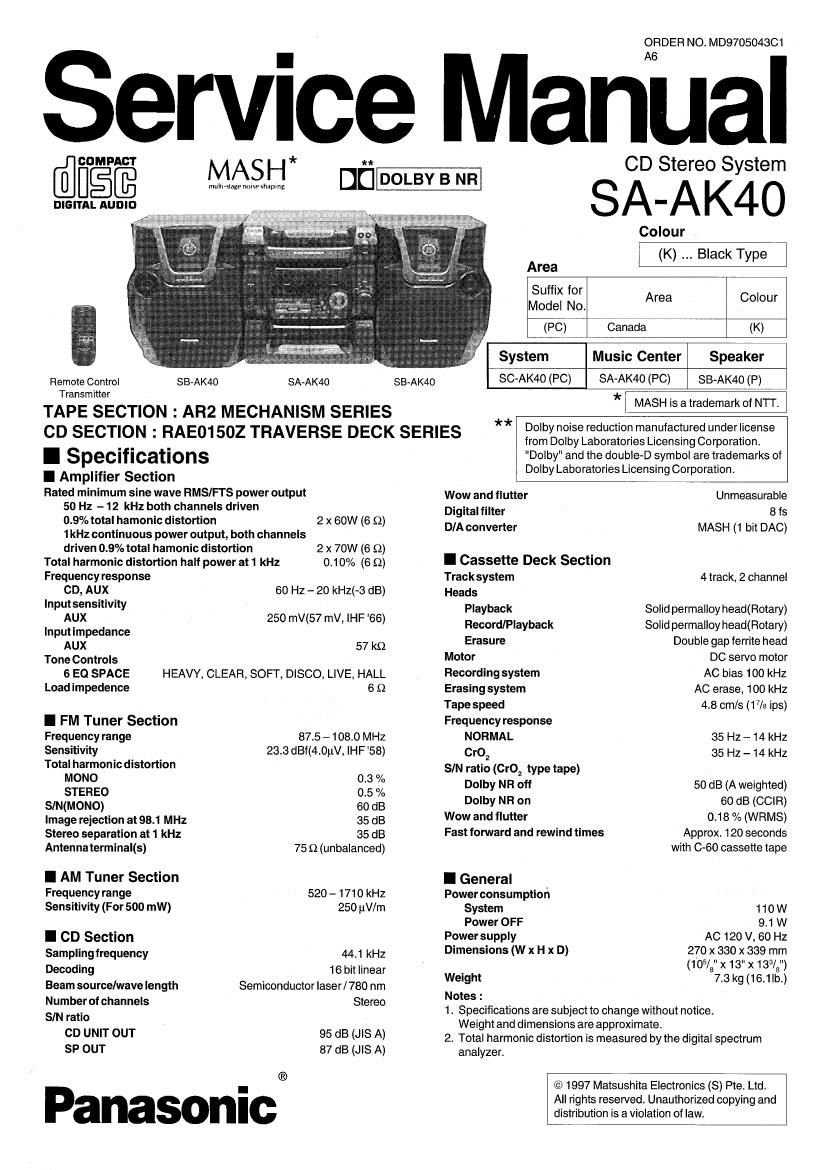

Page 1
ORDER NO. MD970504301
Service Manual
[@013um
DIGITAL AUDIO
Remote Control
Transmitter
MASH
murmuge nolwshapmg
SB-AK40
SA-AK40
TAPE SECTION : AR2 MECHANISM SERIES
CD SECTION : RAEO15OZ TRAVERSE DECK SERIES
I Specifications
I Amplifier Section
Hated minimum sine wave RMS/FTS power output
50 Hz - 12 kHz both channels drlven
0.9% total hamonic distortion
2 x 60W (6 o)
1 kHz continuous power output, both channels
driven 0.9% total hamonic distortion
Total harmonic distortion half power at 1 kHz
Frequency response
CD, AUX
lnputsensitivity
AUX
Input impedance
AUX
Tone Controls
6 E0 SPACE
Load impedence
I FM Tuner Section
Frequency range
Sensitivity
Total harmonic distortion
MONO
STEREO
SIN(MON0)
Image rejection at 98.1 MHz
Stereo separation at 1 kHz
Antenna terminal(s)
I AM Tuner Section
Frequency range
Sensitivity (For 500 mW)
I CD Section
Samplingfrequency
Decoding
Beam sourcdwave length
Number of channels
SIN ratio
CD UNIT OUT
SP OUT
2 x 70w (6 a)
0.10% (6 9)
so Hz - 20 kHz(-3 dB)
250 mV(57 mv, IHF '66)
57 k9
HEAVY, CLEAR, SOFT, DISCO. LIVE. HALL
69
87.5 - 108.0 MHz
23.3 dBf(4.0uV, IHF '53)
0.3 %
0.5 %
60 dB
35 dB
35 dB
75 Q (unbalanced)
520 - 1710 kHz
250 uV/m
44.1 kHz
16 bit linear
Semiconductor Iaser/ 780 nm
Stereo
95 dB (JIS A)
37 dB (JIS A)
Panasonic
DE]-
SB-AK40
CD Stereo System
SA-AK4O
Colour
(K) Black Type
Area
Suffix for
Model No. Area Colour
(PC) Canada (K)
System Music Center Speaker
SC-AK40 (PC) SA-AK40 (PC) SB-AK40 (P)
* MASH is a trademark of NIl.
Dolby noise reduction manufactured under license
from Dolby Laboratories Licensing Corporation.
"Dolby'I and the double-D symbol are trademarks of
Dolby Laboratories Licensing Corporation.
Wow and flutter
Digital filter
DIA converter
I Cassette Deck Section
Track system
Heads
Playback
Record/Playback
Erasure
Motor
Recording system
Erasing system
Tape speed
Frequency response
NORMAL
CrOz
SIN ratio (Cro2 type tape)
Dolby NR off
Dolby NR on
Wow and flutter
Fast forward and rewind times
I General
Powerconsumption
System
Power OFF
Power supply
Dimensions (VII x H x D)
Weight
Notes :
Unmeasurable
8 fs
MASH (1 bit DAC)
4 track, 2 channel
Solid permalloy head(Rotary)
Solid permalloy head(Rotary)
Double gap ferrite head
DC servo motor
AC bias 100 kHz
AC erase, 100 kHz
4.8 cm/s (17/e ips)
35 Hz- 14 kHz
35 HZ- 14 kHz
50 dB (A weighted)
60 dB (CCIR)
0.18 % (WRMS)
Approx. 1 20 seconds
with 060 cassette tape
110 W
9.1 W
AC 120 V, 60 Hz
270 x 330 x 339 mm
(105/3" x 13" x 133/5")
7.3kg (16.1Ib.)
1. Specifications are subject to change without notice.
Weight and dimensions are approximate.
2. Total harmonic distortion is measured by the digital spectrum
analyzer.
© 1997 Matsushita Electronics (8) Pte, Ltd.
All rights reserved. Unauthorized copying and
distribution is a violation of law.
