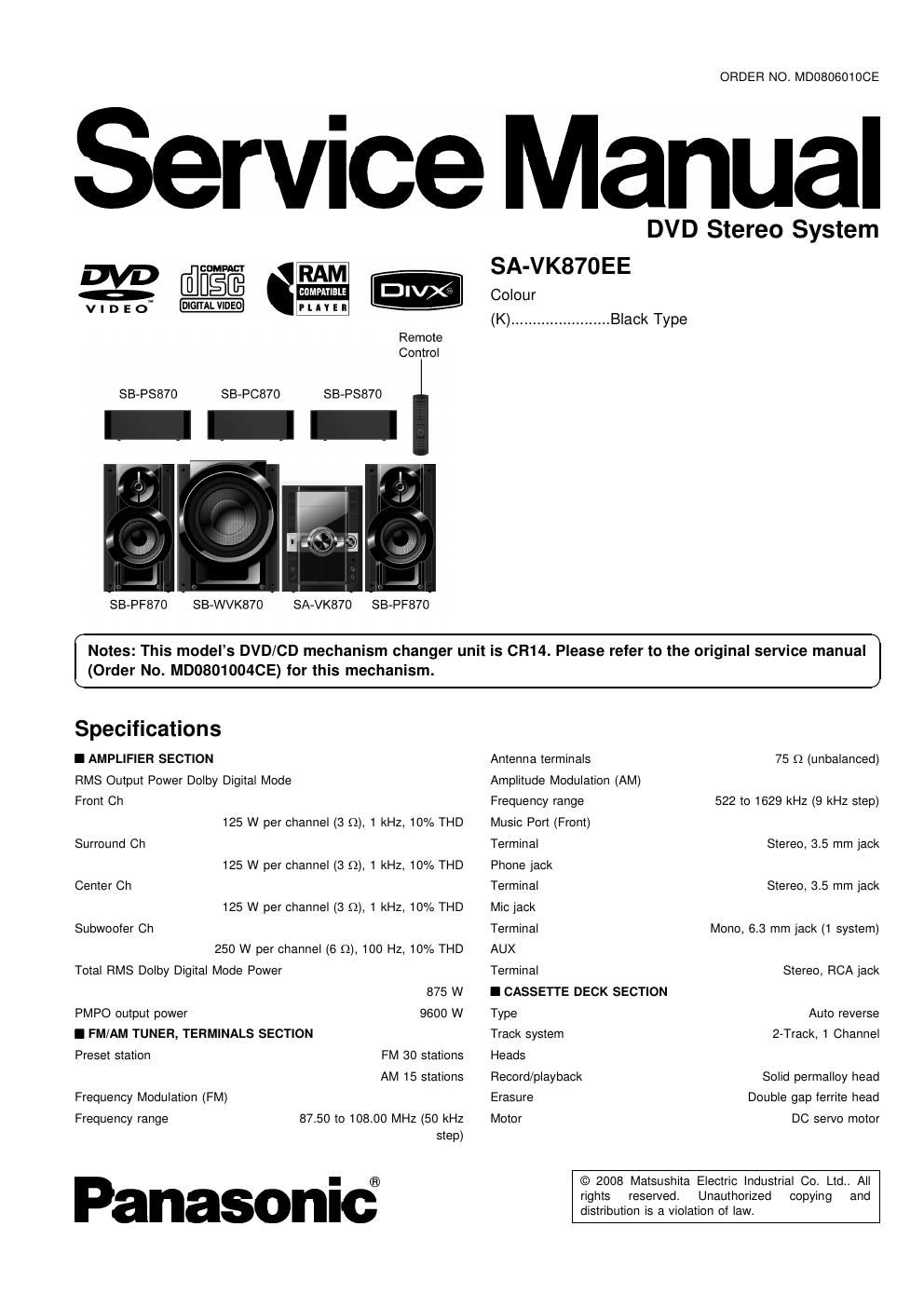

Page 1

Service

@fiEfi

v I D E ow
Remote
Control
SB-PSB70 SB-PC870 53.135870

SB-PF870 SB-WVK870 SA-VK87O SB-PF87O

ORDER NO. MD080601OCE

Manual

DVD Stereo System

SA-VK870EE
Colour
(K) ....................... Black Type

Notes: This models DVD/CD mechanism changer unit is CR14. Please refer to the original service manual

(Order No. MDOBO1004CE) for this mechanism.

Specifications

I AMPLIFIER SECTION
RMS Output Power Dolby Digital Mode
Front Ch
125 W per channel (3 Q), 1 kHz, 10% THD
Surround Ch
125 W per channel (3 Q), 1 kHz, 10% THD
Center Ch
125 W per channel (3 Q), 1 kHz, 10% THD
Subwoofer Ch
250 W per channel (6 Q), 100 Hz, 10% THD
Total RMS Dolby Digital Mode Power
875 W
PMPO output power 9600 W
I FM/AM TUNER, TERMINALS SECTION
Preset station FM 30 stations
AM 15 stations
Frequency Modulation (FM)

Frequency range 87.50 to 108.00 MHz (50 kHz

step)

Panasonic?

Antenna terminals
Amplitude Modulation (AM)
Frequency range

Music Port (Front)
Terminal

Phone jack

Terminal

Mic jack

Terminal

AUX

Terminal

I CASSETTE DECK SECTION
Type

Track system

Heads

Record/playback

Erasure

Motor

75 Q (unbalanced)

522 to 1629 kHz (9 kHz step)

Stereo, 3.5 mm jack

Stereo, 3.5 mm jack

Mono, 6.3 mm jack (1 system)

Stereo, RCA jack

Auto reverse
2-Track, 1 Channel

Solid permalloy head
Double gap ferrite head
DC servo motor

© 2008 Matsushita Electric Industrial Co. Ltd.. All
rights reserved.
distribution is a violation of law.

Unauthorized

copying and

Page 2

SA-VK87OEE

AC bias 100 kHz
AC erase 100 kHz
4.8 cm/s

Recording system
Erasing system
Tape speed
Overall frequency response (+3, -6 dB) at DECK OUT
35 Hz to 14 kHz
50 dB (A-Weighted)
0.18% (WRMS)
Approx. 120 seconds with

Normal

S/N ratio

Wow and flutter

Fast forward and rewind time
C-60 cassette tape

I VIDEO SECTION

Video system PAL625/50, PAL525/60, NTSC

Composite video output

Output level 1 Vp-p (75 (2)

Terminal Pin jack (1 system)

Component video output

Y output level 0.7 Vp-p (75 (2)
PB output level 0.7 Vp-p (75 (2)
PF. output level 0.7 Vp-p (75 (2)

Terminal output level
Pin jack (Y: green, PB: blue, PR: red) (1 system)

IUSB SECTION

USB Port

USB standard

Media file format support

USB 2.0 full speed
MP3 (.mp3)

WMA (.wma)

JPEG flpg) (-ipeg)
MPEG4 (.asf)

FAT12, FAT16, FAT 32
Max. 500 mA

USB device file system

USB Port power

I Disc SECTION

Disc played [8 cm or 12 cm]

(1) DVD (DVD-Video, DivXEfl )
(2) DVD-RAM (DVD-VFt, JPEG"7, MP3', MPEG4 5", Divx 5('7)
(3) DVD-Ft (DVD-Video, DVD-VR, JPEG, MPs 2", MPEG4 57,
Divx 6*7)

(4) DVD-R DL (DVD-Video, DVD-VFt)

(5) DVD-RW (DVD-Video, DVD-VR, JPEG *7, MP3. 2, MPEG4 5",
Divx 6*7)

(a) +R/ +FtW (Video)

(7) +R DL (Video)

(8) CD,CD-Ft/RW [CD-DA, Video CD, SVCD , MP3. 2", WMA 377,
JPEG ti", MPEG4 57, Divx 9 7]

Conforming to IECG2107

2 MPEG-1 Layer 3, MPEG-2 Layer 3

3 Windows Media Audio Ver 9.0 L3

Not compatible with Multiple Bit Rate (MBFt)

Exif Ver 2.1 JPEG Baseline files

Picture resolution: between 160 x 120 and 6144 x 4096 pixels (Sub
sampling is 420:0, 4:2:0, 4:22 or 4:4:4). Extremely long and narrow
pictures may not be displayed.

5 MPEG4 data recorded with the Panasonic SD multi cameras or
DVD video recorders. Conforming to SD VIDEO specifications (ASF
standard)/ MPEG4 (Simple Profile) Video system/ (3.726 audio
system.

5 Plays all versions of DiVX® video (including DivX®6) with standard
playback of DiVX® media files. Certified to the DixV® Home Theater
Profile. GMC (Global Motion Compensation) is not supported.

7 The total combined maximum number of recognizable audio,
picture and video contents and groups: 4000 audio, picture and video
contents and 256 groups.

Pick up

Wavelength

CD 785 nm
DVD 655 nm
Laser Power

CD CLASS 1M
DVD CLASS 1

Audio output (Disc)

Number of channels 5.1 channel (FL, FR, C, SL, SR,

SW)
I GENERAL
Power supply
AC 230 V, 50 Hz
Power consumption 127 W
Power consumption in standby mode:
0.4 W (approx.)
250 mm x 331 mm x 334 mm
4.9 kg
+0 to +40°C
35 to 80% RH (no condensation)

Dimensions (W x H x D)

Mass

Operating temperature range

Operating humidity range

I SYSTEM

SC-VK870(EE) Music center: SA-VK870 (EE)
Front speaker: SB-PF870 (GC)

Center speaker: SB-PCB70 (GC)

Surround speaker: SB-PSB70 (GC)

Subwoofer: SB-WVK870 ((3.0)

For information on front speaker, please refer to the original Service
Manual (Order No. MD0806011CE) for SB-PF870GC-K.

For information on center speaker, please refer to the original Service
Manual (Order No. MD080601 1 CE) for SB-PCB70GC-K.

For information on surround speaker, please refer to the original
Service Manual (Order No. MD080601 1 CE) for SB-PSB7OGC-K.

For information on Subwoofer, please refer to the original Service
Manual (Order No. MD080601 1 CE) for SB-WVK870GC-K.

Notes:
1.Specifications are subject to changes without notice. Mass and
dimensions are approximate.
2. Total harmonic distortion is measured by the digital spectrum
analyzer.
