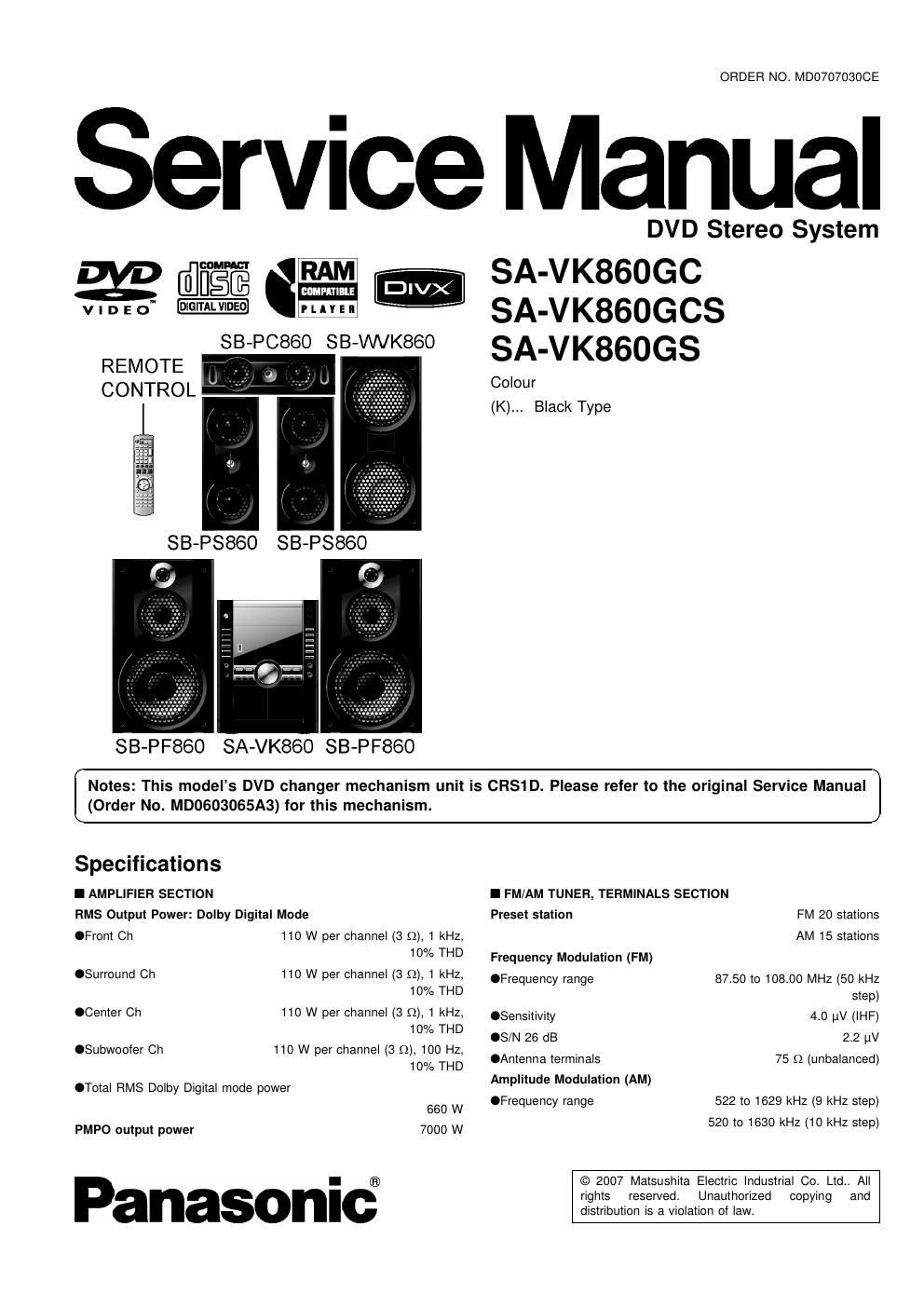

Panasonic sa vk 860 gc service manual

Page 2

SA-VKBBOGC / SA-VKBBOGCS / SA-VKBGOGS

AM Sensitivity S/N 20 dB at 999 kHz

1000 pV/m

Music Port input jack
.Sensitivity 100 mV, 4.7 k!)
.Terminal Stereo, 3.5 mm jack
Phone iack
.Terminal Stereo, 3.5 mm jack
Mic jack
.Sensitivity 0.7 mV, 600 9
.Terminal Mono, 6.3 mm jack (2 system)
AUX
.Sensitivity 2 V, 8 k!)
.Terminal Stereo, RCA jack
USB Port
OUSB standard USB 2.0 full speed
.Media file format support MP3 (.mp3)

WMA (.wma)

JPEG (flipg, -ipeg)
MPEG4 (.asf)
FAT12, FAT16, FAT32
500 mA (Max)

.USB device file system
.USB port power
I CASSETTE DECK SECTION

.Type 1 way, Auto Reverse
.Track system 4-Track, 2 Channel
Heads

.Record/Playback Solid permalloy head
OErasure Double gap ferrite head
Motor DC servo motor

AC bias 100 kHz
AC erase 100 kHz
4.8 cm/s

Recording system
Erasing system
Tape speed
Overall frequency response (+3, -6 dB) at DECK OUT
35 Hz to 14 kHz
50 dB (A weighted)
0.13% (WRMS)

.Normal

S/N ratio

Wow and flutter

Fast forward and rewind time
Approx. 120 seconds with C-60 cassette tape

I VIDEO SECTION

Video system PAL625/50, PAL525/60, NTSC

Composite video output

.Output level 1 Vp-p (75 9)

.Terminal Pin jack (1 system)

Component video output

[NTSC: 480p/480i, PAL: 576p/576i]

.Y output level 1 Vp-p (75 0)

0.7 Vp-p (75 o)

0.7 Vp-p (75 o)

OPE output level
CPR output level
.Terminal

Pin jack (Y: green, PB: blue, PR: red) (1 system)
I DISC SECTION
Disc played [8 cm or 12 cm]
(1) DVD (DVD-Video, DiVXWW )

(2) DVD-RAM (DVD-VR, JPEGMW, MP3"2 17, MPEG45'7, DivX
#7
)

(3) DVD-R (DVD-Video, DVD-VR, JPEG 1 MP3"2 7, MPEG45~7,
DiVX"G-7)

(4) DVD-R DL (DVD-Video, DVD-VB)

(5) DVD-RW (DVD-Video, DVD-VR, JPEGM 7, MP3 7, MPEG4
«7) Divxfifi #7)

(e) +R/+RW (Video)

(7) +R DL (Video)

(8) CD,CD-R/RW [CD-DA, Video CD, svco, MP327, WMAW,
JPEGHW, MPEG4 5", DivX"7, HighMAT Level 2 (Audio and
Image)]

" Conforming to IE062107

2 MPEG-1 Layer 3, MPEG-2 Layer 3

3 Windows Media Audio Ver.9.0 L3

Not compatible with Multiple Bit Rate (MBR)

" Exil Ver 2.1 JPEG Baseline files

Picture resolution: between 160 x 120 and 6144 x 4096 pixels

(Sub sampling is 420:0, 4:2:0, 4:22 or 4:4:4). Extremely long and
narrow pictures may not be displayed.

5 MPEG4 data recorded with the Panasonic SD multi cameras or
DVD Video recorders.

Conforming to SD VIDEO specifications (ASF standard) / MPEG4
(Simple Profile) video system/ (3.726 audio system.

5 Plays all versions of DiVX® video (including DivX®6) with standard
playback of DIVX® media files. Certified to the DiVX Stereo System
Profile.

"7 The total combined maximum number of recognizable audio,
picture and video contents and groups: 4000 audio, picture and video
contents and 400 groups.

Pick up

Wavelength

.CD 785 nm
.DVD 662 nm
Laser power

.CD CLASS 1M
.DVD CLASS 1

Audio output (Disc)
.Number of channels (FL, FR, C, SL, SR, SW) 5.1 ch
Audio performance (measurement at: Rec out terminal)

.Frequency response (CD-Audio) 4 Hz to 20 kHz

I GENERAL

Power supply

.GC area: AC 220 to 240 V, 50/60 Hz

.GCS/GS areas: AC 110 to 127V/220 to 240 V,
50/60 Hz

Power consumption 290 W

Power consumption in standby mode
0.9 W (approximate)
250 X 330 x 334.6 mm
5.5 kg
+5°C to +35°C
5% to 90% RH (no condensation)

Dimensions (W x H x D)
Mass
Operating temperature range
Operating humidity range
Notes:
1.Specifications are subject to change without notice.
Mass and dimensions are approximate.

2. Total harmonic distortion is measured by the digital spectrum
analyzer.
