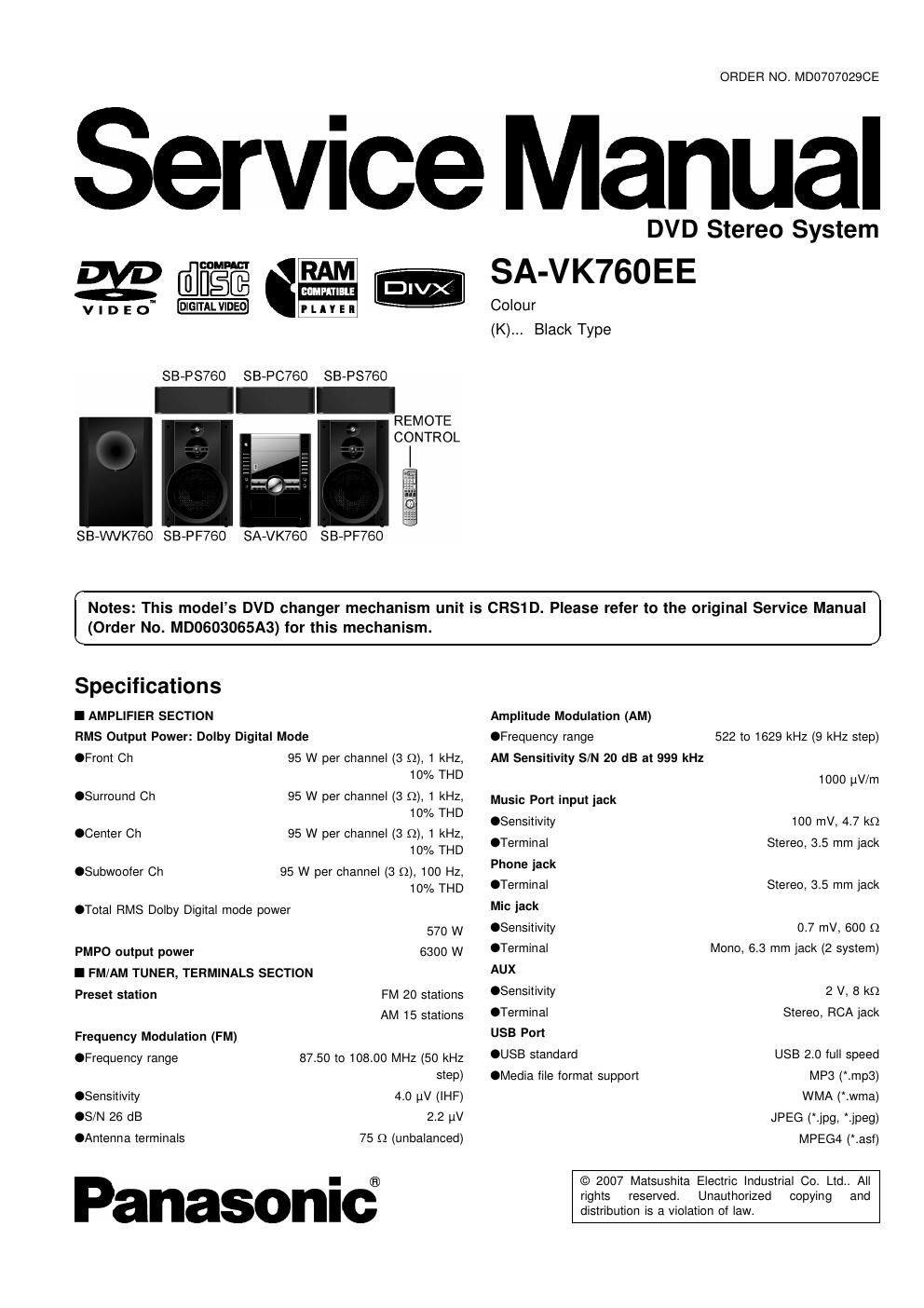

Panasonic sa vk 760 ee service manual

Page 2

SA-VK760EE

.USB device file system FAT12, FAT16, FAT32

.USB port power 500 mA (Max)

I CASSETTE DECK SECTION

.Type 1 way, Auto Reverse
.Track system 4-Track, 2 Channel
Heads

.Record/Playback Solid permalloy head
OErasure Double gap ferrite head
Motor DC servo motor

AC bias 100 kHz
AC erase 100 kHz
4.8 cm/s

Recording system
Erasing system
Tape speed
Overall frequency response (+3, -6 dB) at DECK OUT
35 Hz to 14 kHz
50 dB (A weighted)
0.13% (WRMS)

.Normal

S/N ratio

Wow and flutter

Fast forward and rewind time
Approx. 120 seconds with C-60 cassette tape

I VIDEO SECTION

Video system PAL625/50, PAL525/60, NTSC

Composite video output

.Output level 1 Vp-p (75 9)

.Terminal Pin jack (1 system)

Component video output

[NTSC: 480p/480i, PAL: 576p/576i]

.Y output level 1 Vp-p (75 Q)
OPE output level 0.7 Vp-p (75 0)
OPR output level 0.7 Vp-p (75 (2)

.Terminal

Pin jack (Y: green, PB: blue, PR: red) (1 system)
I Disc SECTION
Disc played [8 cm or 12 cm]
(1) DVD (DVD-Video, DivX87 )
(2) DVD-RAM (DVD-VFt, JPEGM, MP3"2 7, MPEG45~7, DivX
#7)
(3) DVD-R (DVD-Video, DVD-VR, JPEGM'W MP3~"7, MPEG4 7,
DiVX 7)
(4) DVD-R DL (DVD-Video, DVD-VFt)

(5) DVD-RW (DVD-Video, DVD-VR, JPEG 7, MP37, MPEG4 5~
#7 DiVX S, #7)

(e) +R/+RW (Video)

(7) +R DL (Video)

(8) CD,CD-R/RW [CD-DA, Video co, svco" , MP327, WMAH,
JPEG~7, MPEG4 7, DivX7, HighMAT Level 2 (Audio and
Image)]

Conforming to IE062107

2 MPEG-1 Layer 3, MPEG-2 Layer 3

a Windows Media Audio Ver. 9.0 L3

Not compatible with Multiple Bit Rate (MBFt)

4 Exit Ver 2.1 JPEG Baseline liles

Picture resolution: between 160 x 120 and 6144 x 4096 pixels
(Sub sampling is 4:0:0, 4:2:0, 4:2:2 or 4:424). Extremely long and
narrow pictures may not be displayed.

5 MPEG4 data recorded with the Panasonic SD multi cameras or
DVD video recorders.

Conforming to SD VIDEO specifications (ASF standard) / MPEG4
(Simple Profile) Video system/ G726 audio system.

5 Plays all versions of DivX® video (including DiVX®6) with standard
playback of DiVX® media files. Certified to the DiVX Stereo System
Profile.

7 The total combined maximum number of recognizable audio,
picture and video contents and groups: 4000 audio, picture and video
contents and 400 groups.

Pick up

Wavelength

.CD 785 nm
.DVD 662 nm
Laser power

.CD CLASS 1M
.DVD CLASS 1

Audio output (Disc)
.Number of channels (FL, FFt, C, SL, SR, SW) 5.1 ch
Audio performance (measurement at: Rec out terminal)
.Frequency response (CD-Audio) 4 Hz to 20 kHz
I GENERAL

Power supply
Power consumption

AC 230 V, 50 Hz
290 W
Power consumption in standby mode
0.9 W (approximate)
250 X 330 x 334.6 mm
5.5 kg
+5°C to +35°C
5% to 90% RH (no condensation)

Dimensions (W x H x D)
Mass
Operating temperature range
Operating humidity range
Notes:

1.8pecifications are subject to change without notice.

Mass and dimensions are approximate.
2.Total harmonic distortion is measured by the digital spectrum

analyzer.
I SYSTEM

Complete system SC-VK760EE
Main system SF-VK760E E
* Speaker system SB-VK7GOGC

Main system SF-VK760EE

Main unit SA-VK760EE

Speaker system SB-PT760GC

Speaker system SB-PT7BOGC

SB-PC7GOGC
SB-PS7BOGC

Center speaker

Surround speakers

SB-VK7BOGC
SB-PF76OGC
SB-WVK760GC

*Speaker system

Front speakers

Woofer speaker

Refer to the respective original service manuals for 1, 2, 3, 4.
This model uses CRS1 D mechanism (DVD/CD changer mechanism).
