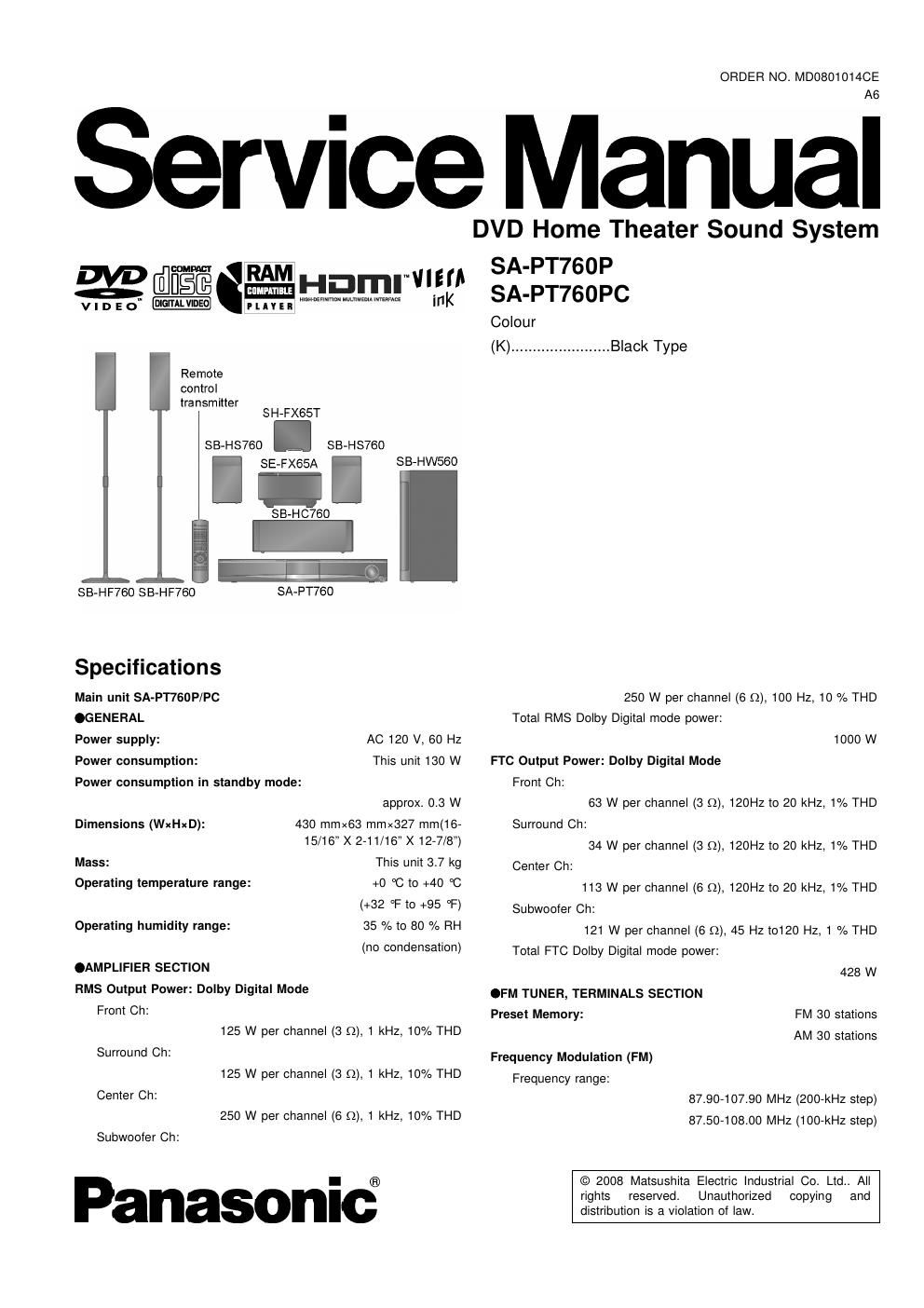

Panasonic sa pt 760 p service manual

Page 2

SA-PT760F / SA-PT760FC

Antenna terminals:
Amplitude Modulation (AM)

75 Q (unbalanced)

520kHz to 1710kHz (to-kHz step)
Digital audio input
Optical digital input:
Sampling frequency:
Phone iack

Optical terminal
32 kHz, 44.1 kHz, 48 kHz

Terminal:

ODIsc SECTION

Discs played [8 cm (3) or 12 cm (5")]:
(1) DVD (DVD-Video)

2) DVD-RAM (DVD-VR, MP3? 5, JPEG~ 5)

Stereo, 3.5 mm (1/8") jack

(

(a) DVD-Ft (DVD-Video, DVD-VR, MP3? 5, JPEG' 5)

(4) DVD-Ft DL (DVD-Video, DVD-VR)

(5) DVD-FtW (DVD-Video, DVD-VR, MP3? 5, JPEG" 5)

(6) +Fl/+RW (Video)

(7) +Fl DL (Video)

(8) co, CD-R/RW [CD-DA, Video CD, svco", MP3, WMA'S
5, JPEG" 51

Conforming to IE062107
2 MPEG-1 Layer 3, MPEG-2 Layer 3
3 Windows Media Audio Ver.9.0 L3
.Not compatible with Multiple Bit Rate (MBR)
4 Exif Ver 2.1 JPEG Baseline files

.Picture resolution: between 160 x 120 and 6144 x 4096
pixels (Sub sampling is 420:0, 4:2:0, 4:2:2 or 4:4:4).
Extremely long and narrow pictures may not be displayed.

The total combined maximum number of recognizable audio
and picture contents and groups: 4000 audio and picture
contents and 400 groups.

Pick up
Wavelength (DVD/CD):
Laser power (DVD/CD):

655/785 nm

CLASS t/CLASS 1M (Canada)

CLASS IIICLASS | (U.S.A)
Audio output (Disc)

Number of channels: 5.1 ch (FL, FR, C, SL, SR,

SW)
.VIDEO SECTION
Video system: NTSC
Composite video output
Output level: 1 Vp-p (75 (2)
Terminal: Pin jack (1 system)

Component Video Output

OY output level: 1 Vp-p (75 Q)
OPE output level: 0.7 Vp-p (75 (2)
.PR output level: 0.7 Vp-p (75 (2)

.Terminal: Pin jack (Y: green, PB: blue,

PR: red) (1 system)

HDMI AV output
Terminal:

HDAVI Control:

19pin type A connector

This unit supports HDAVI Control 3" function.
Note:
1. Specifications are subject to change without notice.
Mass and dimensions are approximate.

2. Total harmonic distortion is measured by the digital spectrum
analyzer.

Solder:

This model uses lead free solder (PbF).
Mechanism:

This model uses CR14 mechanism.
Wireless Features:

This model supports multi room wireless sound system (SH-
FX85).

SC-PT760P/PC-K
SA-PT760P/PC-K

Syste m

Main unit

SB-HF760P-K
SB-HS760P-K"
SB-Hc760P-K
SB-HW560E-K
SH-FX65TPP-K
SE-FXSSAP/PC-K

Front speakers

Surround speakers

Center speaker

Subwoofer speaker

Digital Transmitter

Vlflreless System

Refer to their respective original service manuals for 1.

Manufactured under license from Dolby Laboratories.
Dolby, Pro Logic, and the double-D symbol are trademarks of Dolby
Laboratories.

DTS and DTS Digital Surround" are registered trademarks of DTS,
Inc.

US. Patent Nos. 6,836,549; 6,381,747; 7,050,693; 6,516,132; and
5,583,936.

This product incorporates copyright protection technology that is
protected by US. patents and other intellectual property rights. Use of
this copyright protection technology must be authorized by
MacmVision, and is intended for home and other limited Viewing uses
only unless otherwise authorized by Macrovision. Reverse
engineering or disassembly is prohibited.

Vtfindows Media and the Vlfindows logo are trademarks or registered
trademarks of Microsoft Corporation in the United States and/or other
oou ntries.

This product is protected by certain intellectual property rights of
Microsoft Corporation and third parties. Use or distribution of such
technology outside of this product is prohibited without a license from
Microsoft or an authorized Microsoft subsidiary and third parties.

WMA is a compression format developed try Microsoft Corporation. It
achieves the same sound quality as MP3 with a file size that is smaller
than that of MP3.

HDMI, the HDMI logo and High-Definition Multimedia Interface are
trademarks or registered trademarks of HDMI Licensing LLC.

HDAVI ControlW is a trademark of Matsushita Electric Industrial Co.,
Ltd.

VIERA LinkM is a trademark of Matsushita Electric Industrial Co.. Ltd. I

EZ SyncTM is a trademark of Matsushita Electric Industrial Co., Ltd. |

iPod is a trademark of Apple Inc., registered in the US. and other
countries.

DEI-

I BuiIt-in decoders
You can play discs with these symbols.

dis"

Digital Surround
