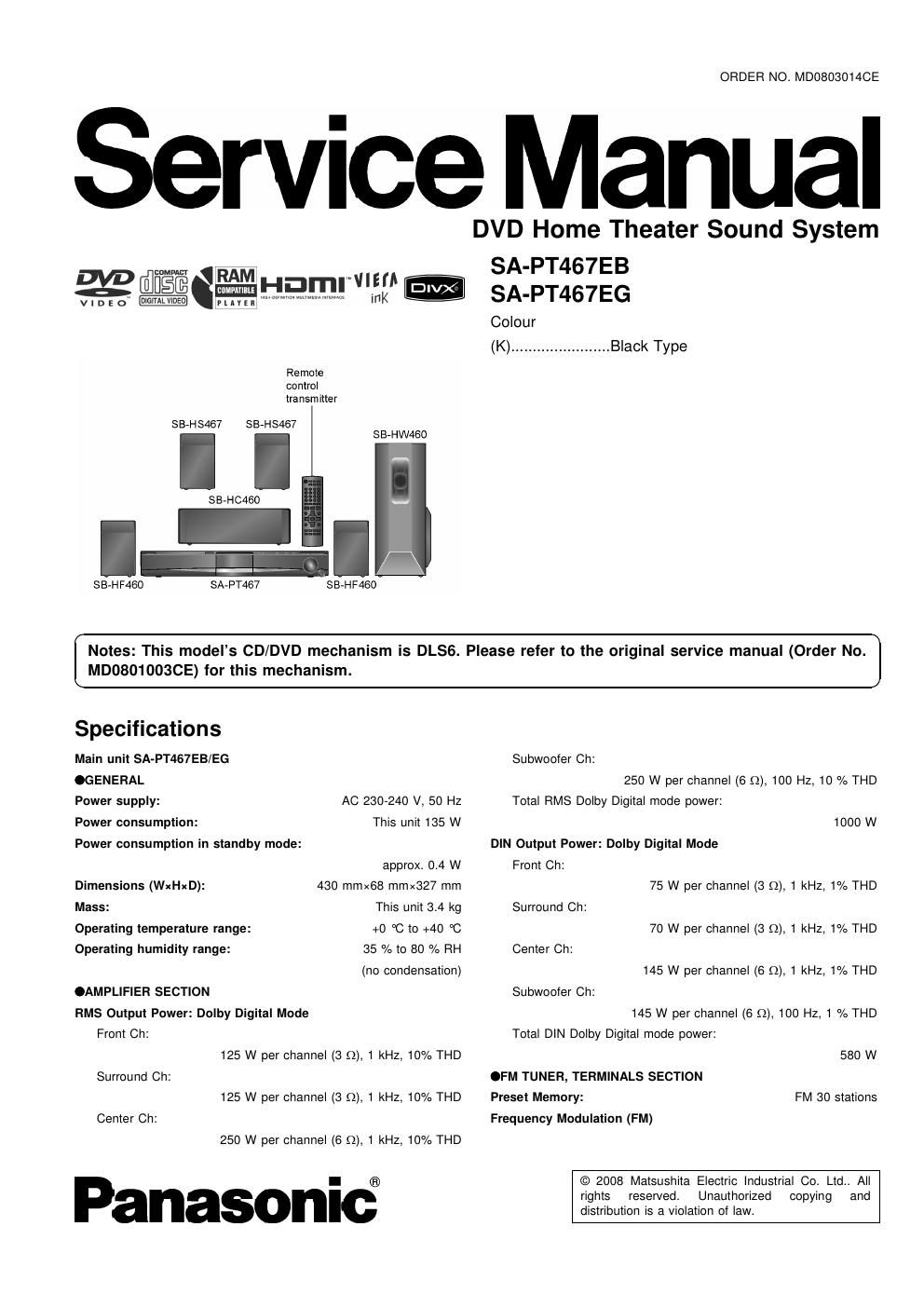

ORDER NO. MD0803014CE
Service Manual
DVD Home Theater Sound System
firm
VIDEO"
RAM v-vrm
mHDml ink
PIAIEI
Remote
control
transmitter
SB»HS457 SB-HS467
I I SB-HW460
SB-HF460 SA-PT467 SB-HF460
SA-PT467EB
SA-PT467EG
Colour
(K) ....................... Black Type
I Notes: This models CD/DVD mechanism is DLSS. Please refer to the original service manual (Order No.
MD0801003CE) for this mechanism.
Specifications
Main unit SA-PT467EB/EG
.GENEFIAL
Power supply: AC 230-240 V, 50 Hz
Power consumption: This unit 135 W
Power consumption in standby mode:
approx. 0.4 W
430 mmx68 mmx327 mm
This unit 3.4 kg
+0 C to +40 C
35 °/o to 80 % FIH
(no condensation)
Dimensions (WxHxD):
Mass:
Operating temperature range:
Operating humidity range:
.AMPLIFIER SECTION
RMS Output Power: Dolby Digital Mode
Front Ch:
125 W per channel (3 Q), 1 kHz, 10% THD
Surround Ch:
125 W per channel (3 Q), 1 kHz, 10% THD
Center Ch:
250 W per channel (6 Q), 1 kHz, 10% THD
Panasonic?
Subwooler Ch:
250 W per channel (6 Q), 100 Hz, 10 % THD
Total RMS Dolby Digital mode power:
1000 W
DIN Output Power: Dolby Digital Mode
Front Ch:
75 W per channel (3 Q), 1 kHz, 1% THD
Surround Ch:
70 W per channel (3 Q), 1 kHz, 1% THD
Center Ch:
145 W per channel (6 Q), 1 kHz, 1% THD
Subwooier Ch:
145 W per channel (6 Q), 100 Hz, 1 % THD
Total DIN Dolby Digital mode power:
580 W
.FM TUNER, TERMINALS SECTION
Preset Memory: FM 30 stations
Frequency Modulation (FM)
© 2008 Matsushita Electric Industrial Co. Ltd.. All
rights reserved. Unauthorized copying and
distribution is a violation of law.
